Identifying IAT Sensor Connector End View ("G" Series)

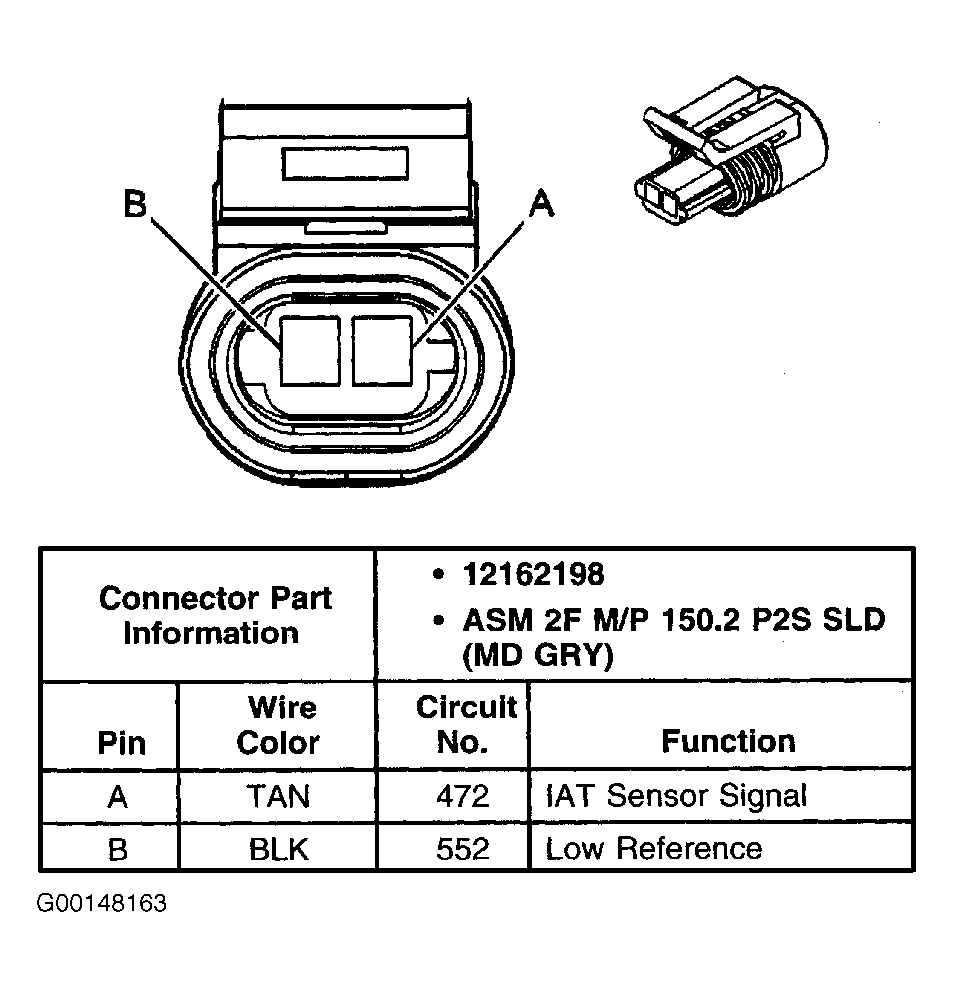

Fig 1: Identifying IAT Sensor Connector End View ("G" Series)
G00148163Courtesy of GENERAL MOTORS CORP.
