Identifying Recirculation Actuator Harness Connector End View

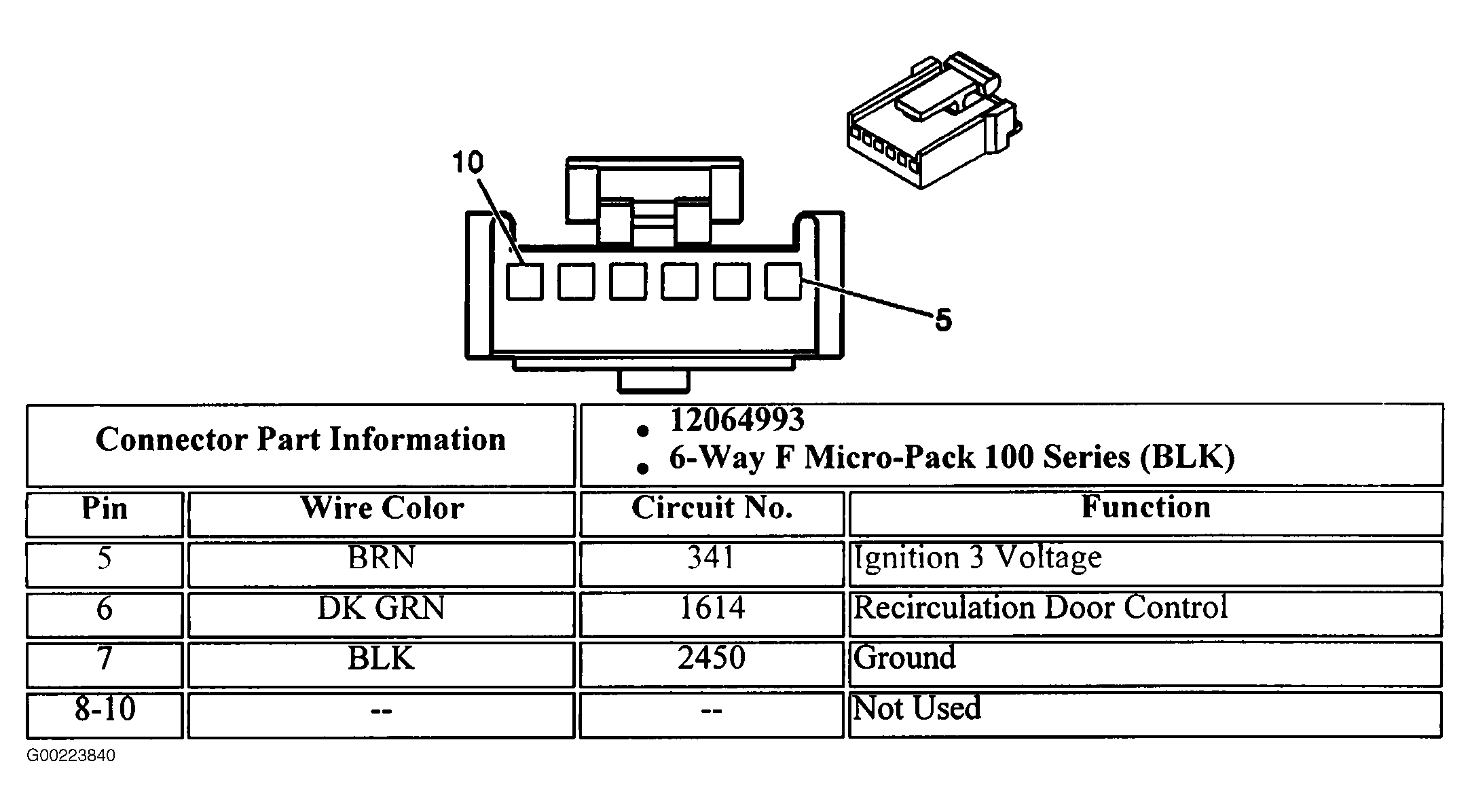

Fig 1: Identifying Recirculation Actuator Harness Connector End View
G00223840Courtesy of GENERAL MOTORS CORP.
