Identifying Transmission In-Line 20-Way Connector End View (Transmission Side)

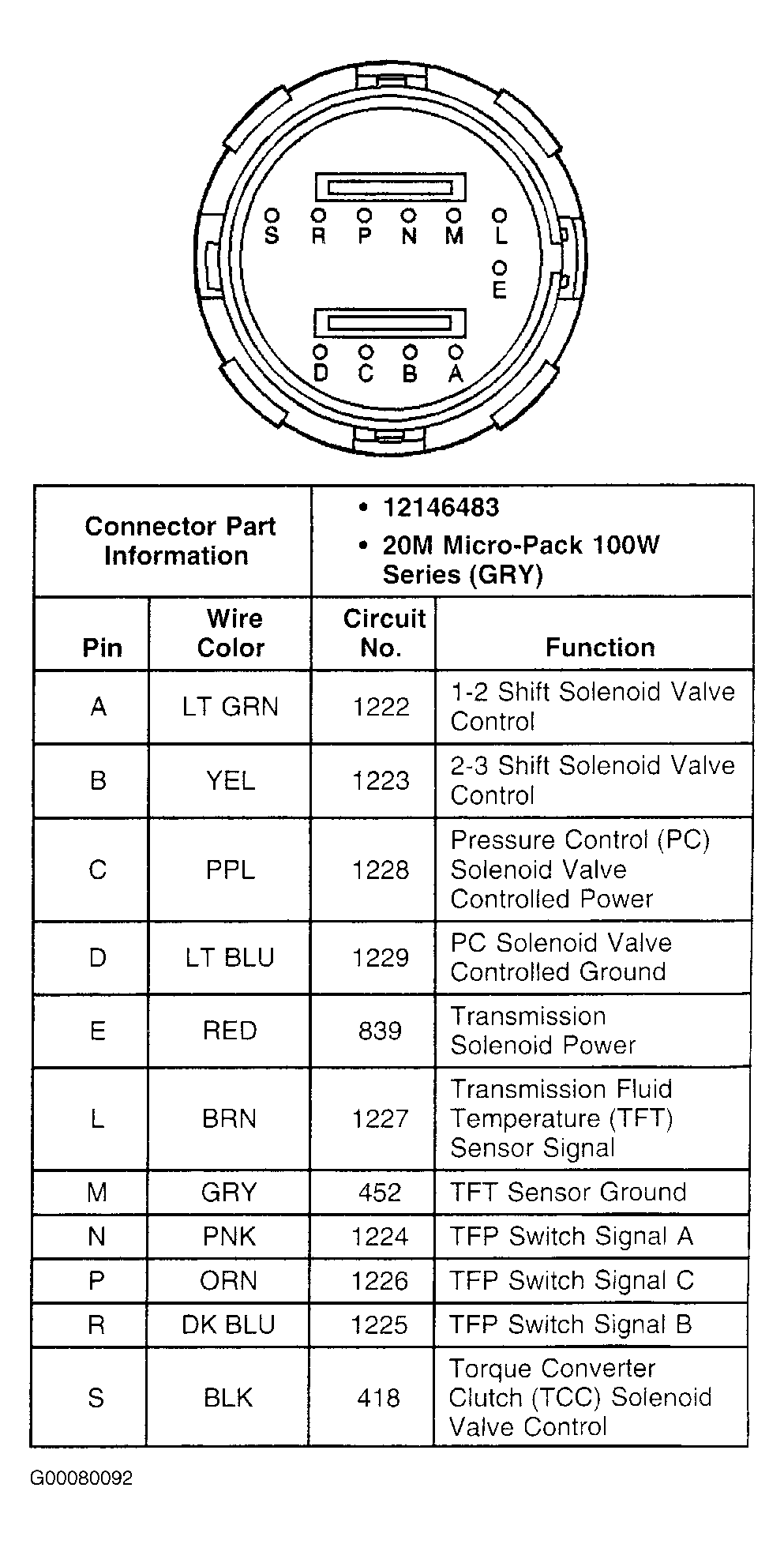

Fig 1: Identifying Transmission In-Line 20-Way Connector End View (Transmission Side)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
