Identifying VSS Connector End View (A/T)

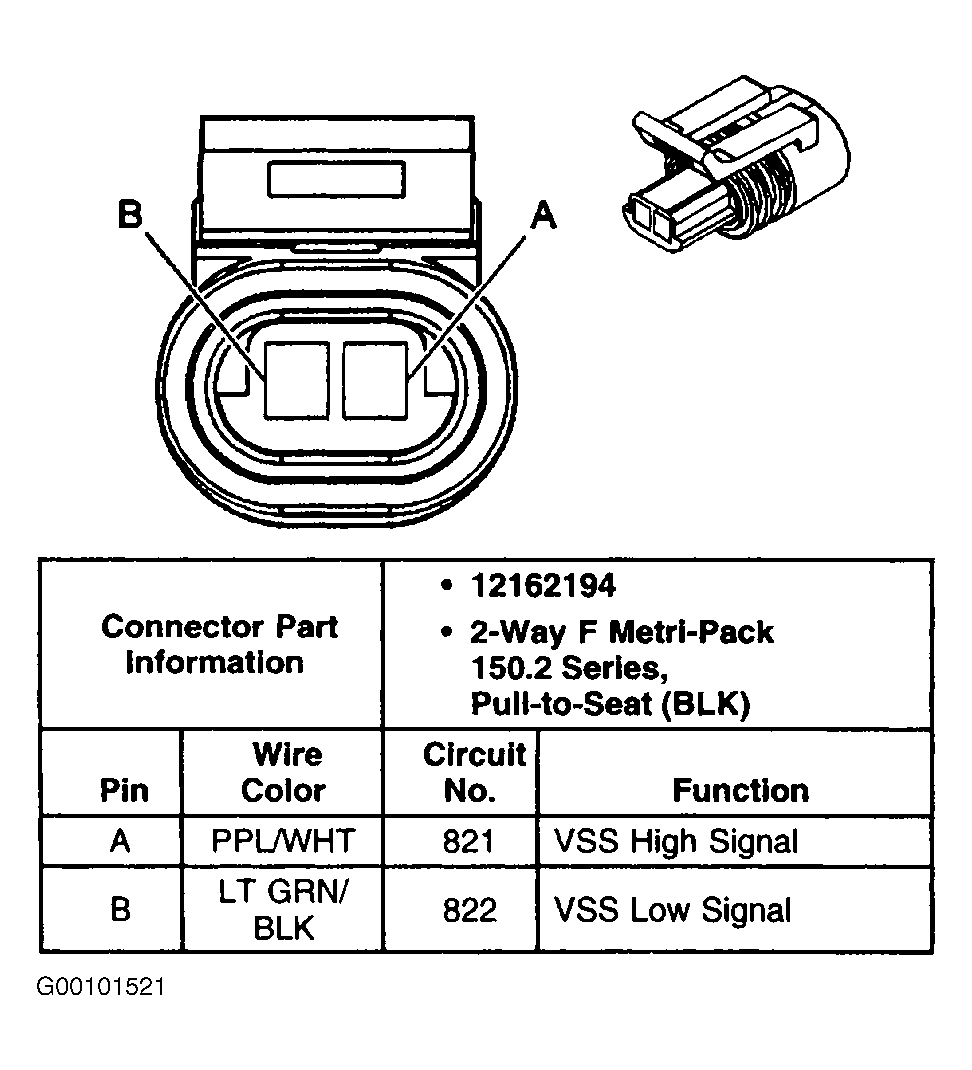

Fig 1: Identifying VSS Connector End View (A/T)
G00101521Courtesy of GENERAL MOTORS CORP.
