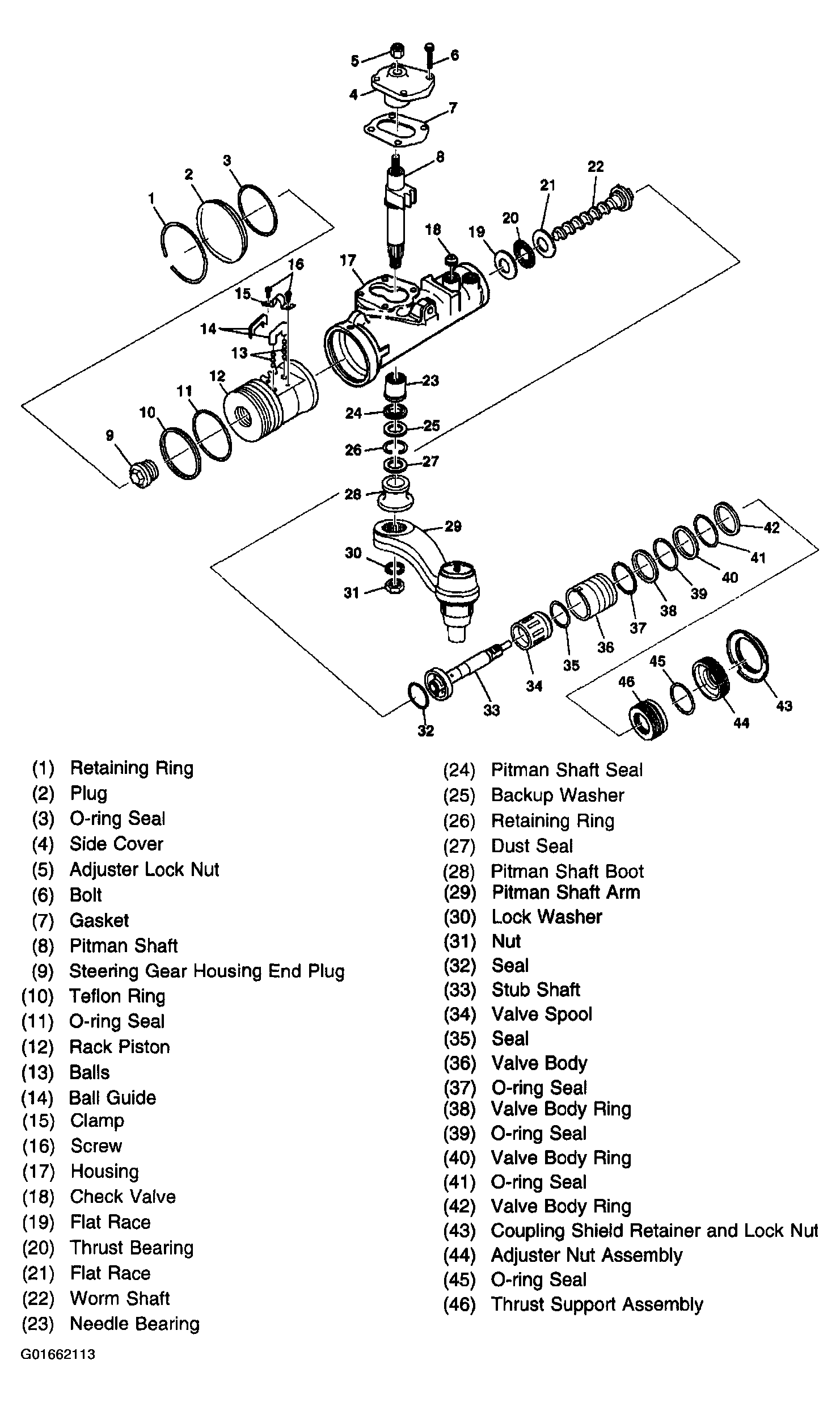

Power Steering Gear Disassembled View (700 Gear)
Fig 1: Identifying Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
