Special Tools and Equipment

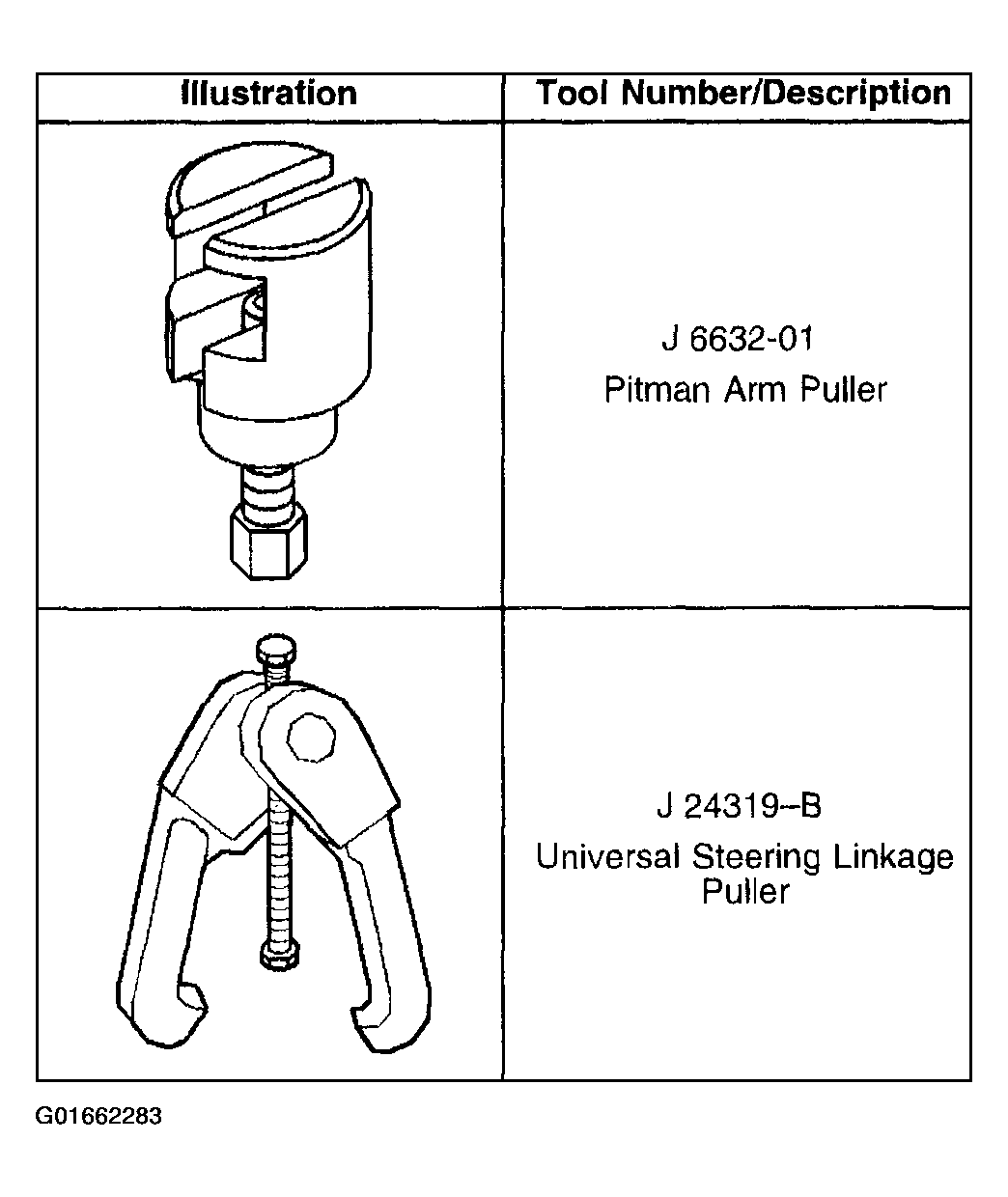

Fig 1: Identifying Special Tools & Equipment (1 Of 2)
G01662283Courtesy of GENERAL MOTORS CORP.

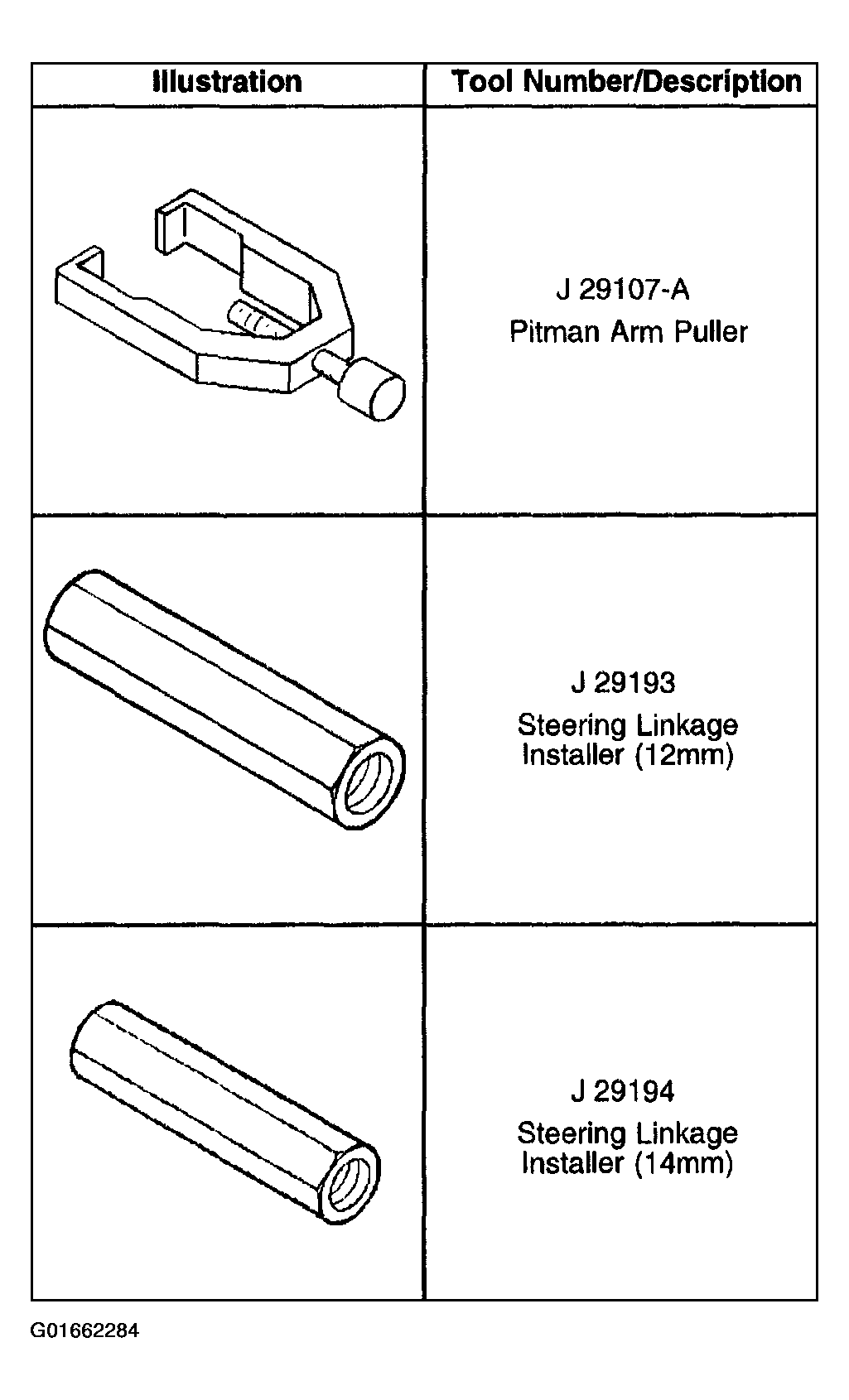

Fig 2: Identifying Special Tools & Equipment (2 Of 2)
G01662284Courtesy of GENERAL MOTORS CORP.
