4L60-E/4L65-E Automatic Transmission

Scan Tool Output Controls

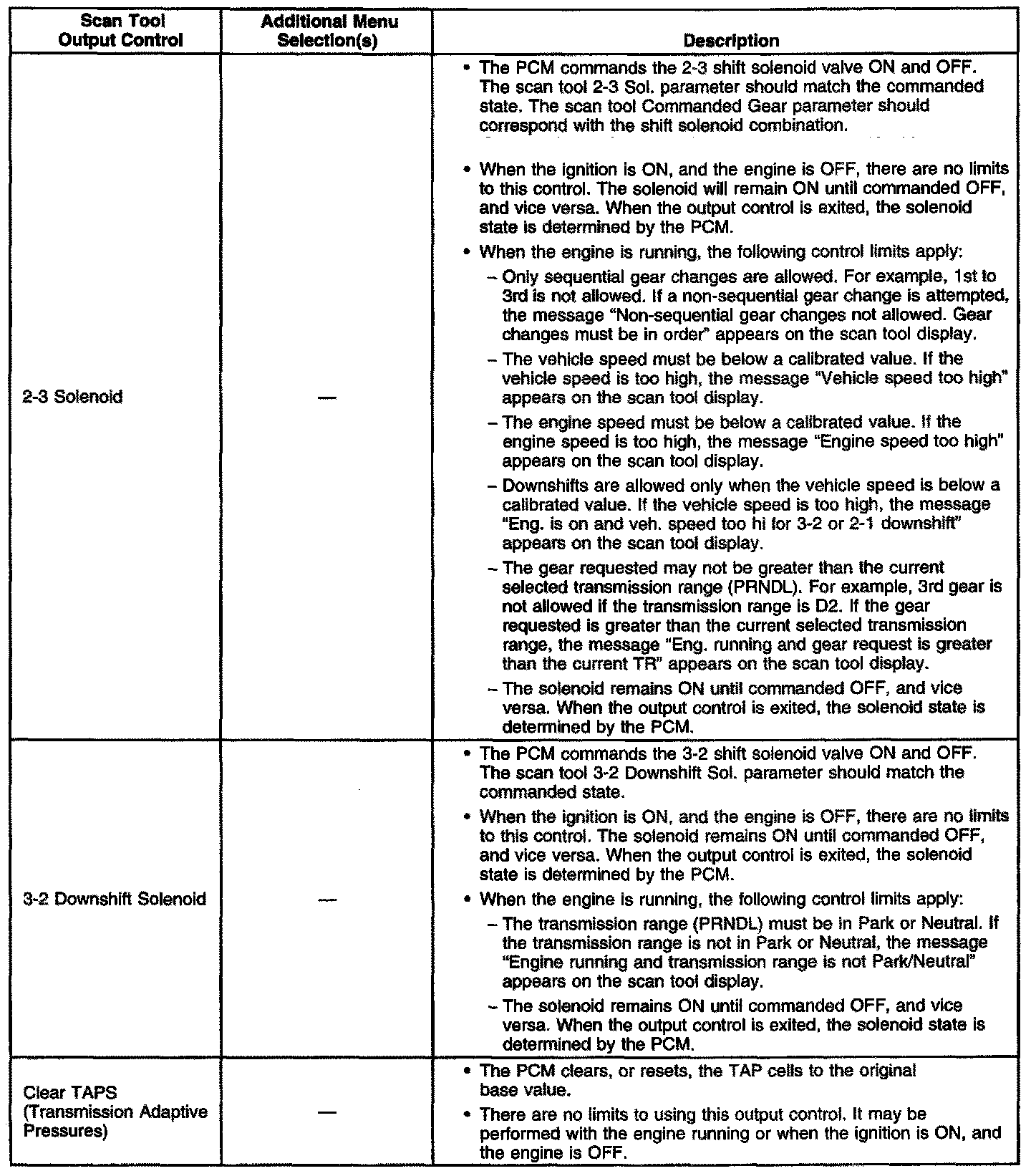

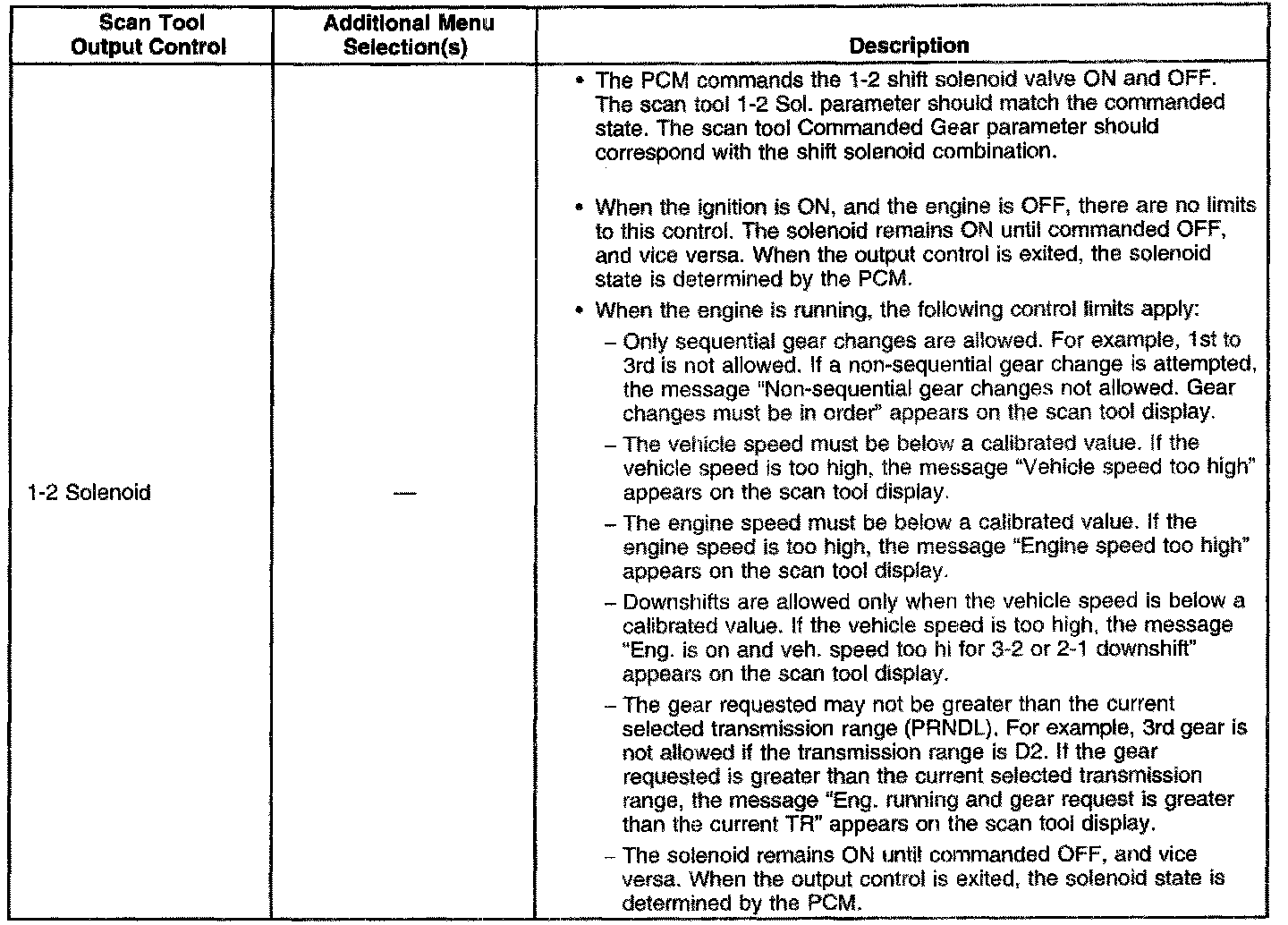

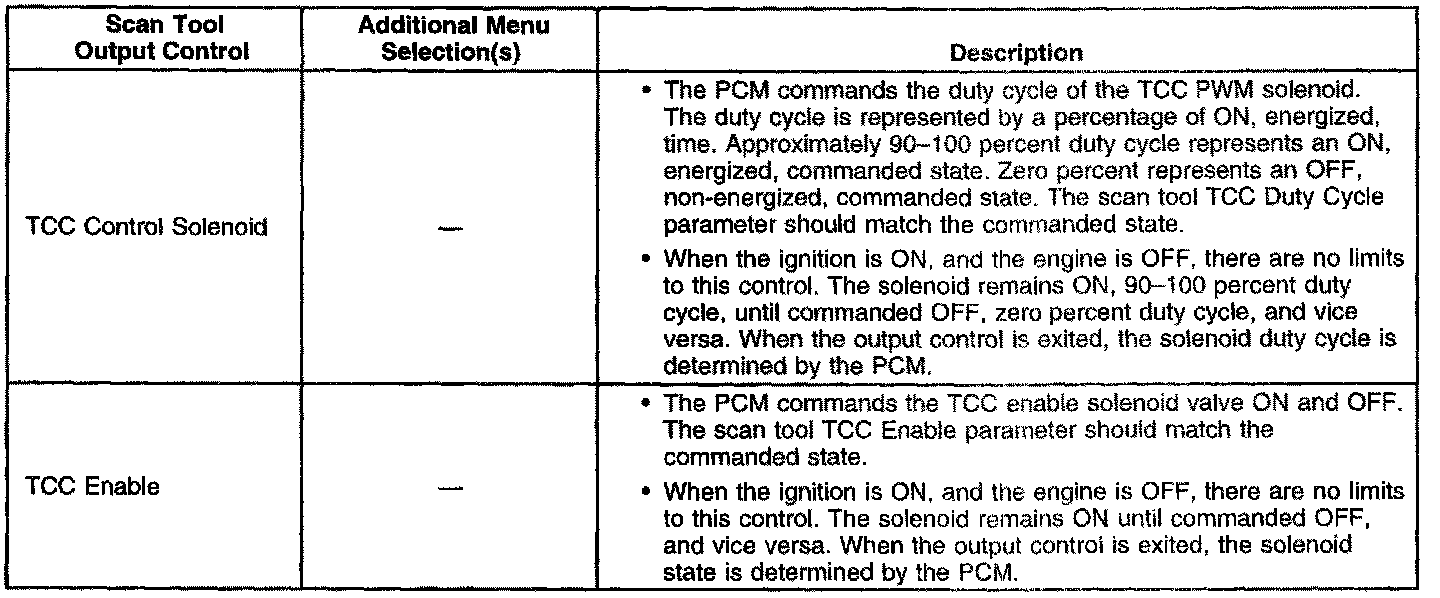

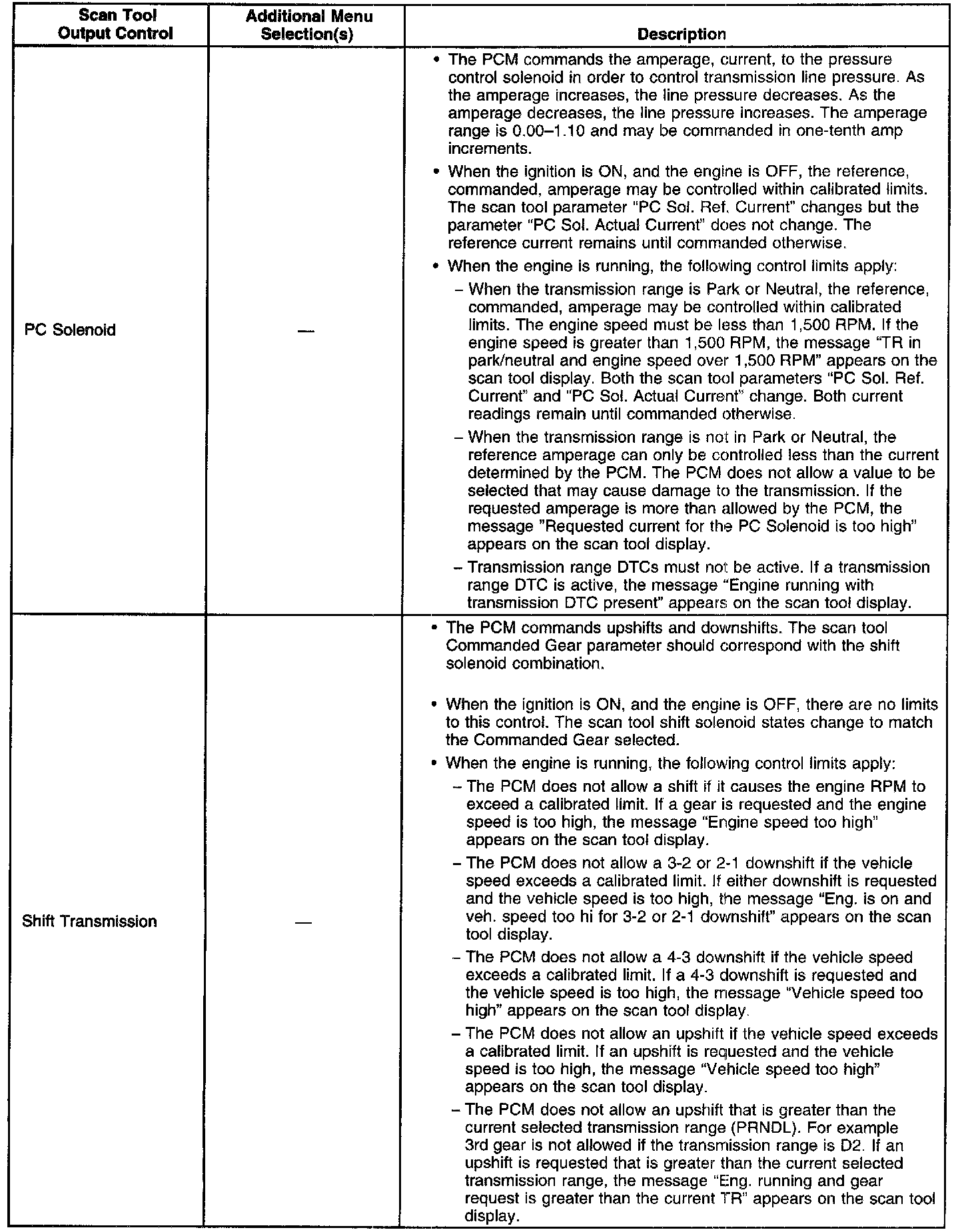

Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
