Tahoe, Yukon, Escalade

REMOVAL PROCEDURE




1. Remove the trim panel.
2. Remove the water deflector.
3. Remove the window glass.
4. Remove the window sash.
5. Remove the glass weatherstrip.

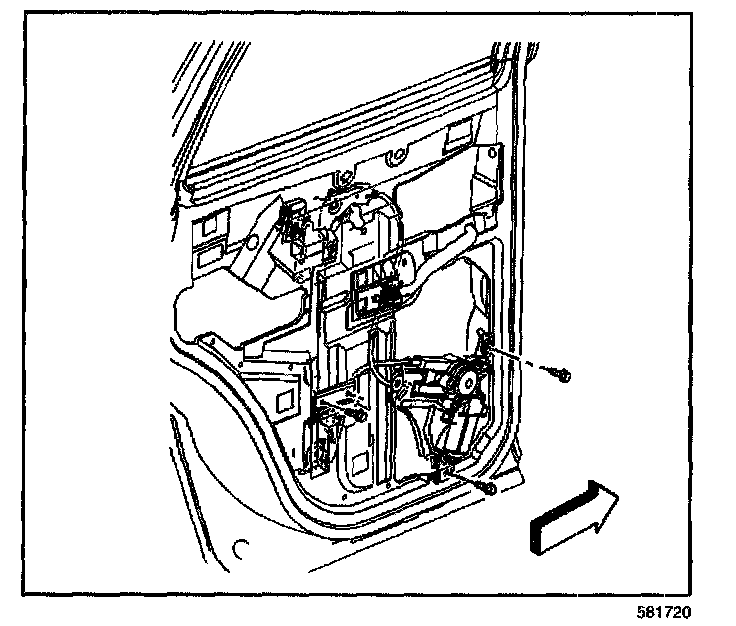

6. Remove the module from the door.

INSTALLATION PROCEDURE




1. Install the module to the door.
2. Install the glass weatherstrip.
3. Install the window sash.
4. Install the window glass.
5. Install the water deflector.
6. Install the trim panel.
