Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 3. This step determines if the DDM recognizes the lockout switch input.
2. 4. This step determines if the indicator is operating properly.

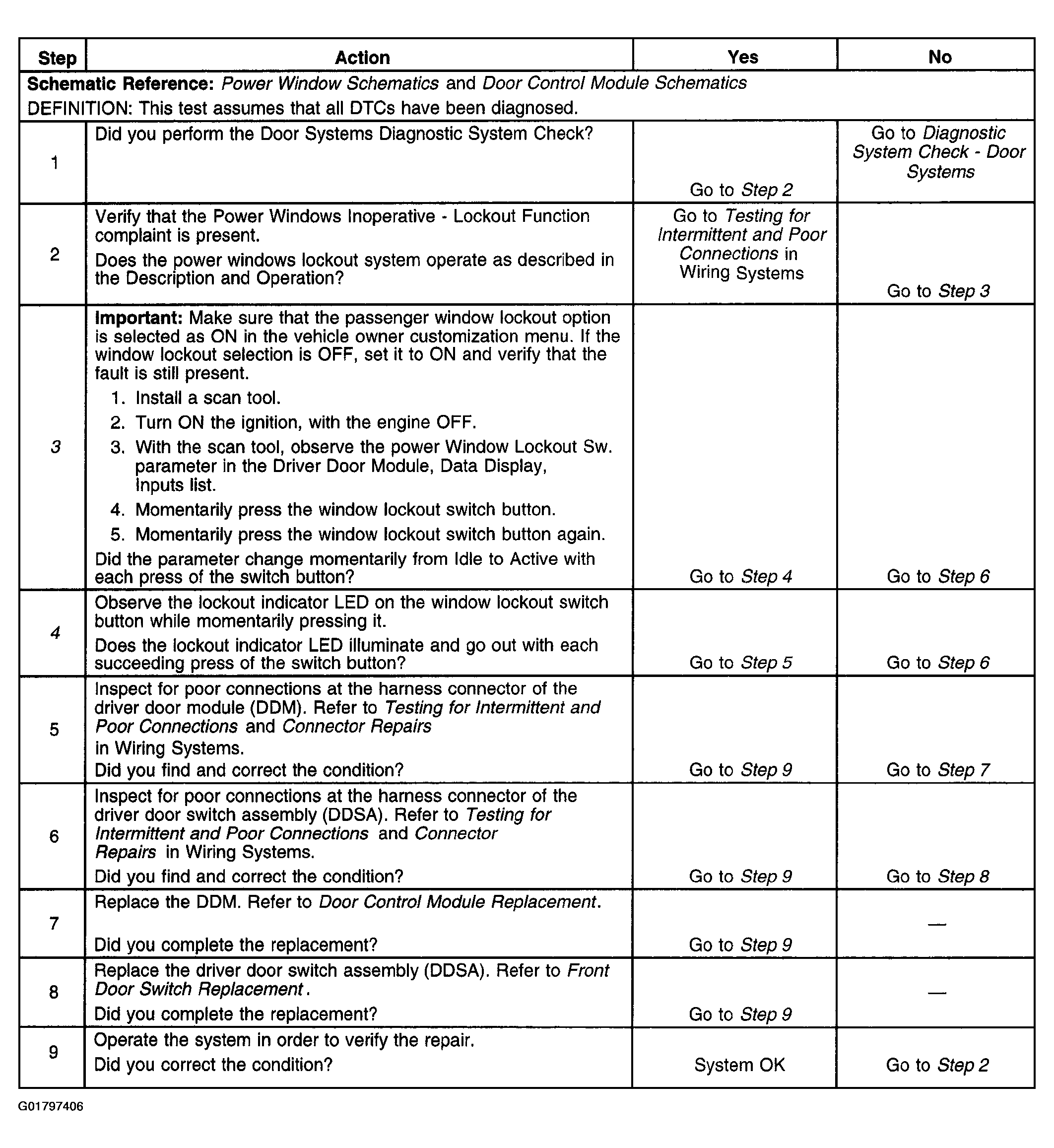

   Fig 1: Power Windows Inoperative - Lockout Function Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.
