Removal Procedure
Important:
- Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
- Always route the replacement cable the same way as the original cable.
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
- Disconnect the body harness from the battery negative cable.

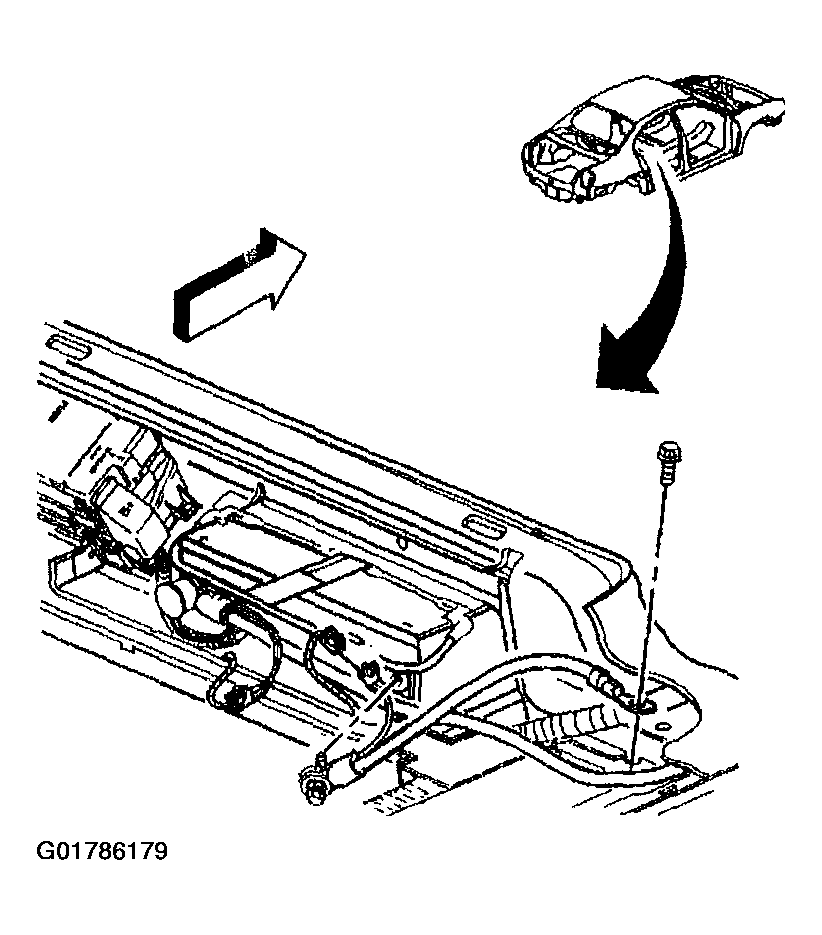

- Disconnect the battery negative cable from the floor pan.
- Remove the battery negative cable from the vehicle.
