Horns Connector End Views

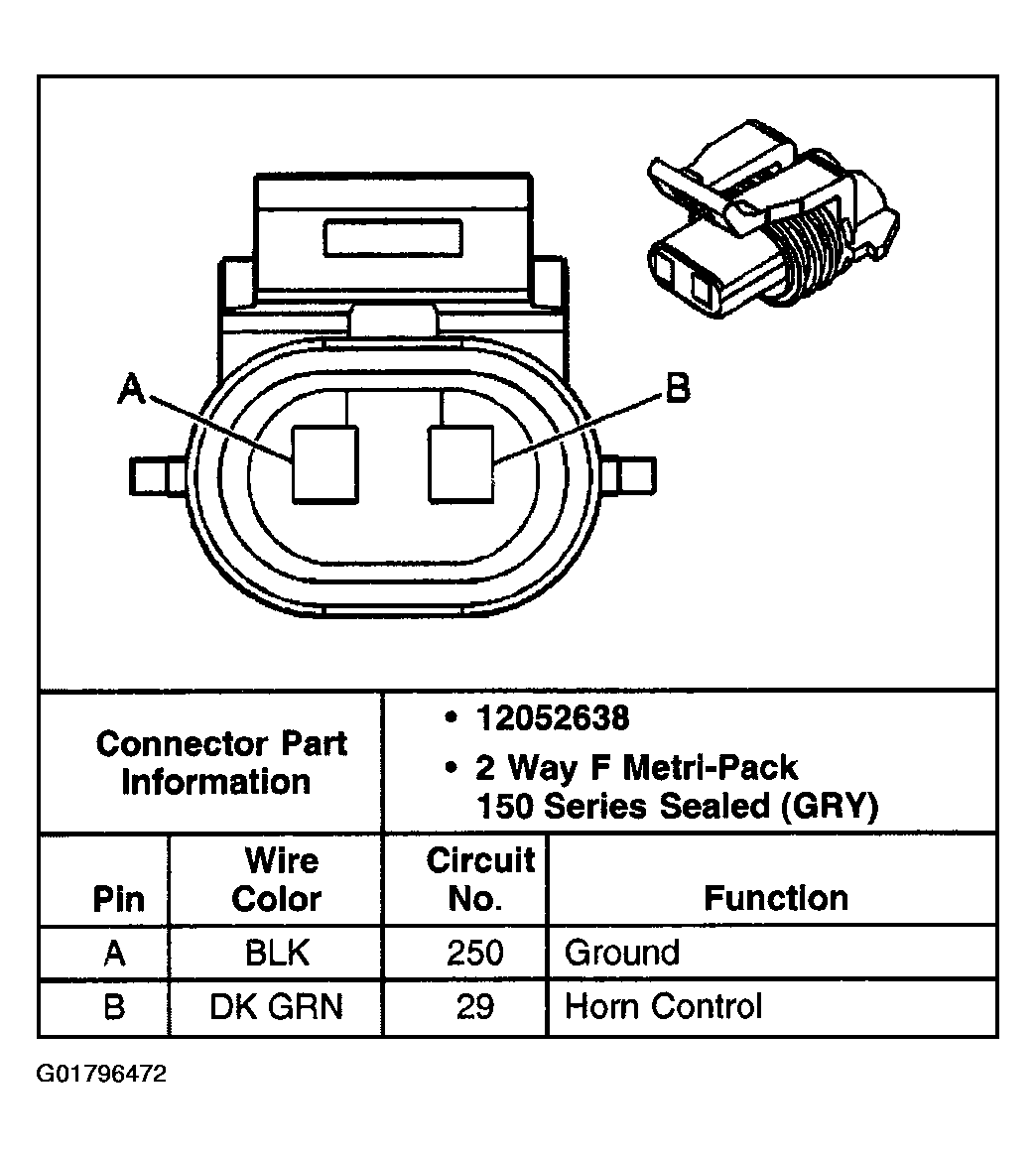

Fig 1: Horn - A Note
G01796472Courtesy of GENERAL MOTORS CORP.

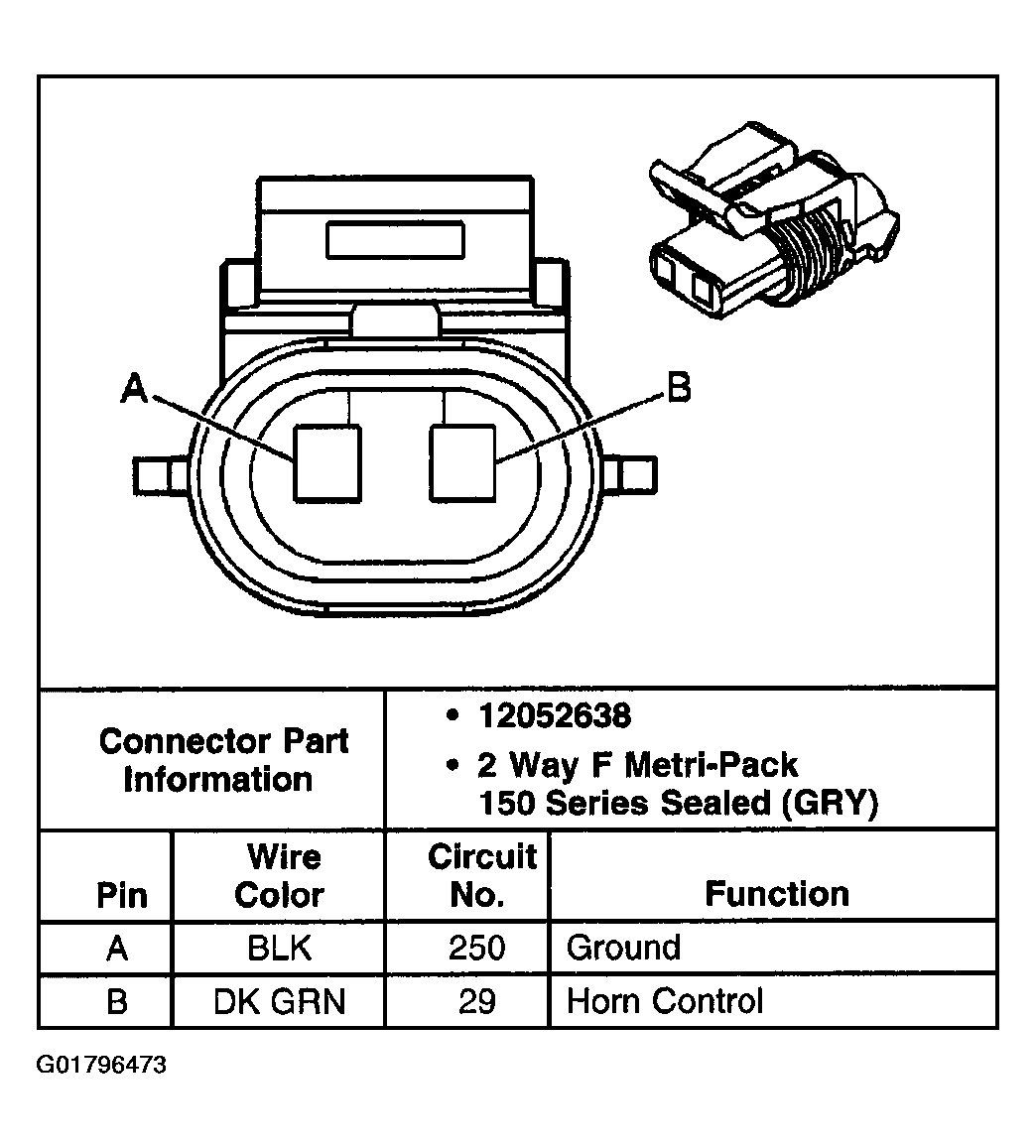

Fig 2: Horn - F Note
G01796473Courtesy of GENERAL MOTORS CORP.
