Removal Procedure

  1. Remove the power steering pump. Refer to Power Steering Pump Replacement .
  2. Install J 25034-C  to the power steering pump pulley.
  3. Using J 25034-C  remove the power steering pump pulley.

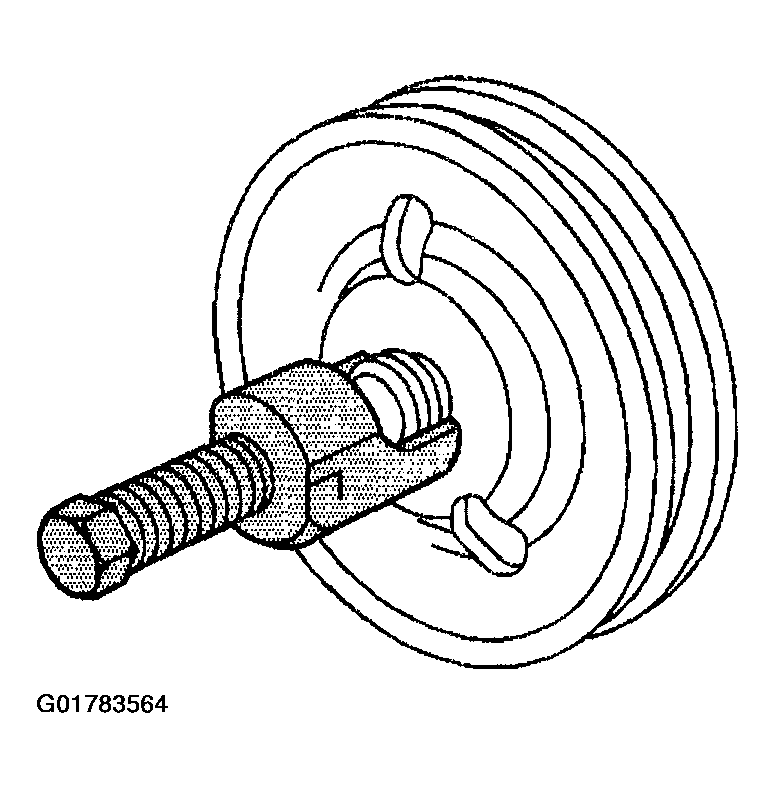

    4. Fig 1: Removing Power Steering Pulley
    G01783564Courtesy of GENERAL MOTORS CORP.
