Front Passenger

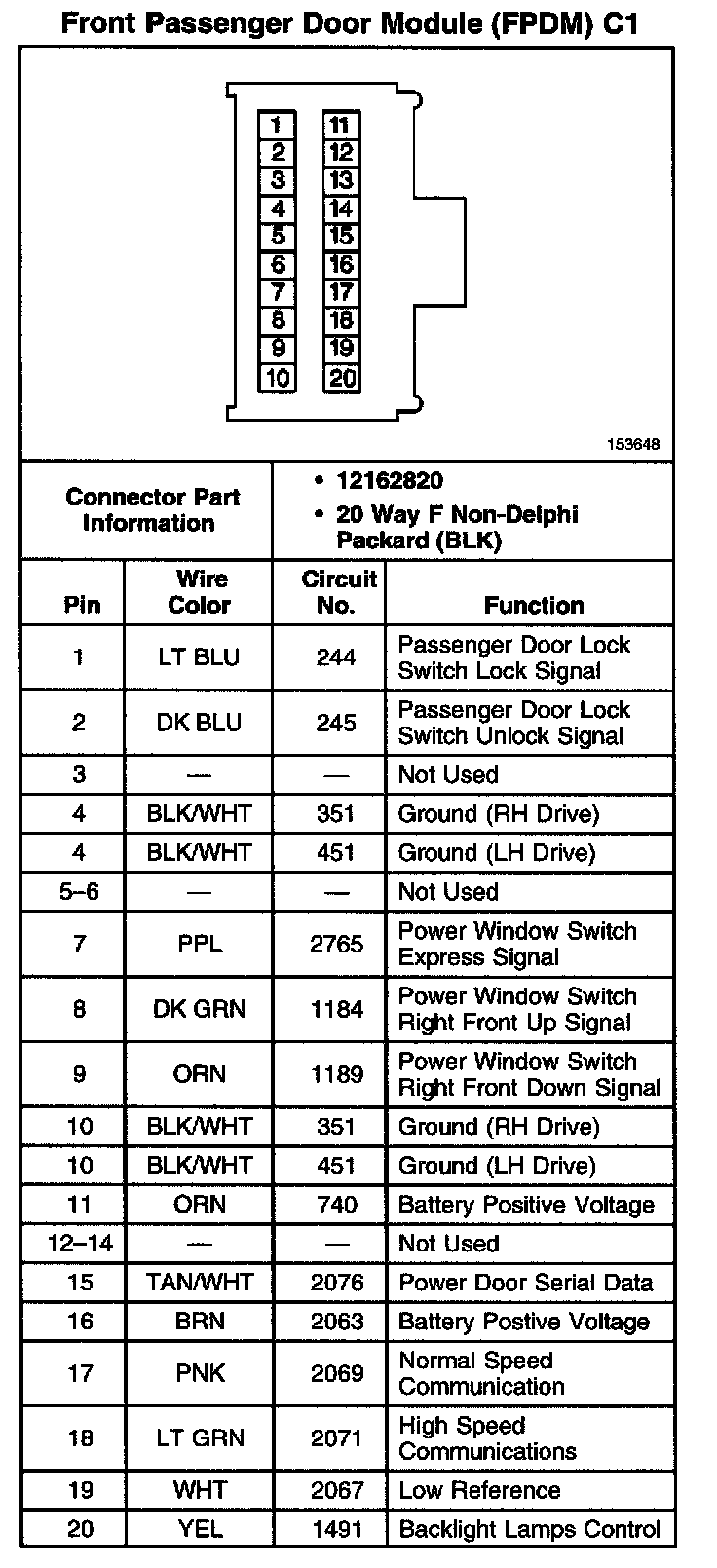

Front Passenger Door Module (FPDM) C1:

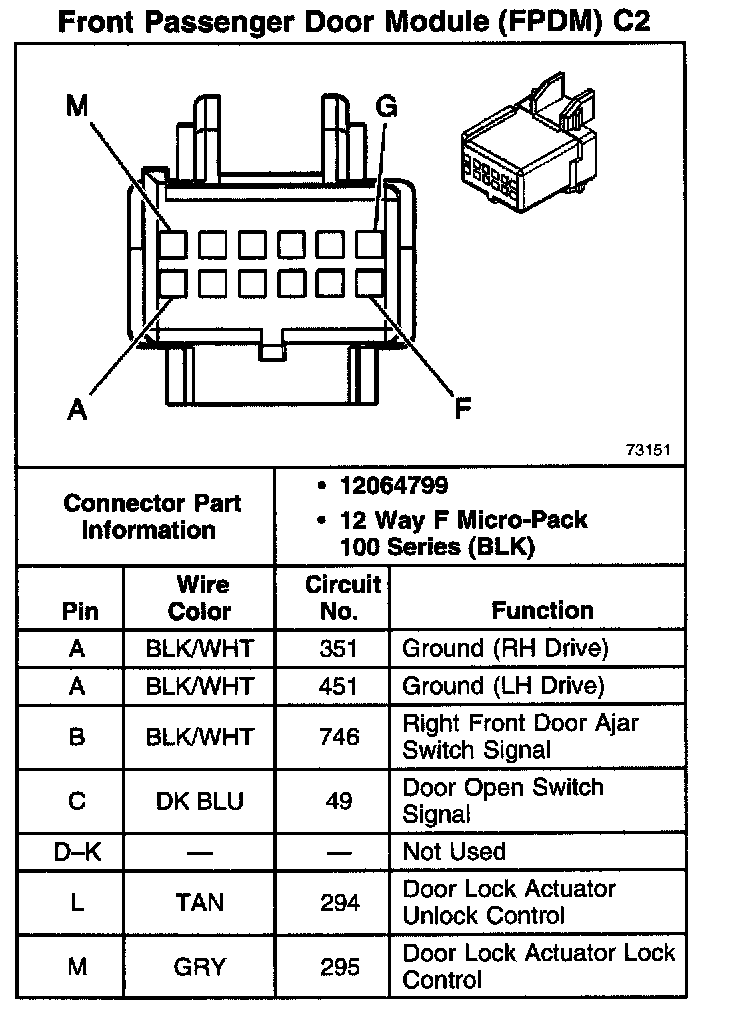

Front Passenger Door Module (FPDM) C2:




Front Passenger Door Module (FPDM) C3:

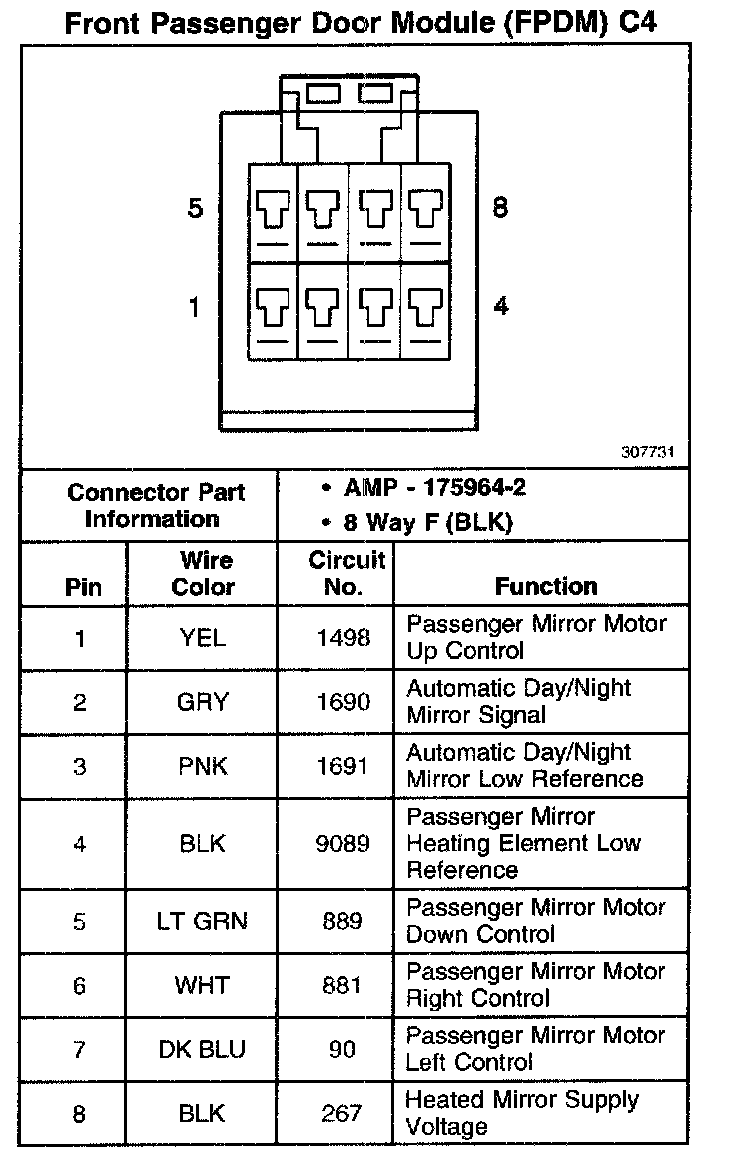

Front Passenger Door Module (FPDM) C4:




Front Passenger Door Module (FPDM) C5:
