Automatic Transmission/Transaxle

Automatic Transaxle - 4T80-E

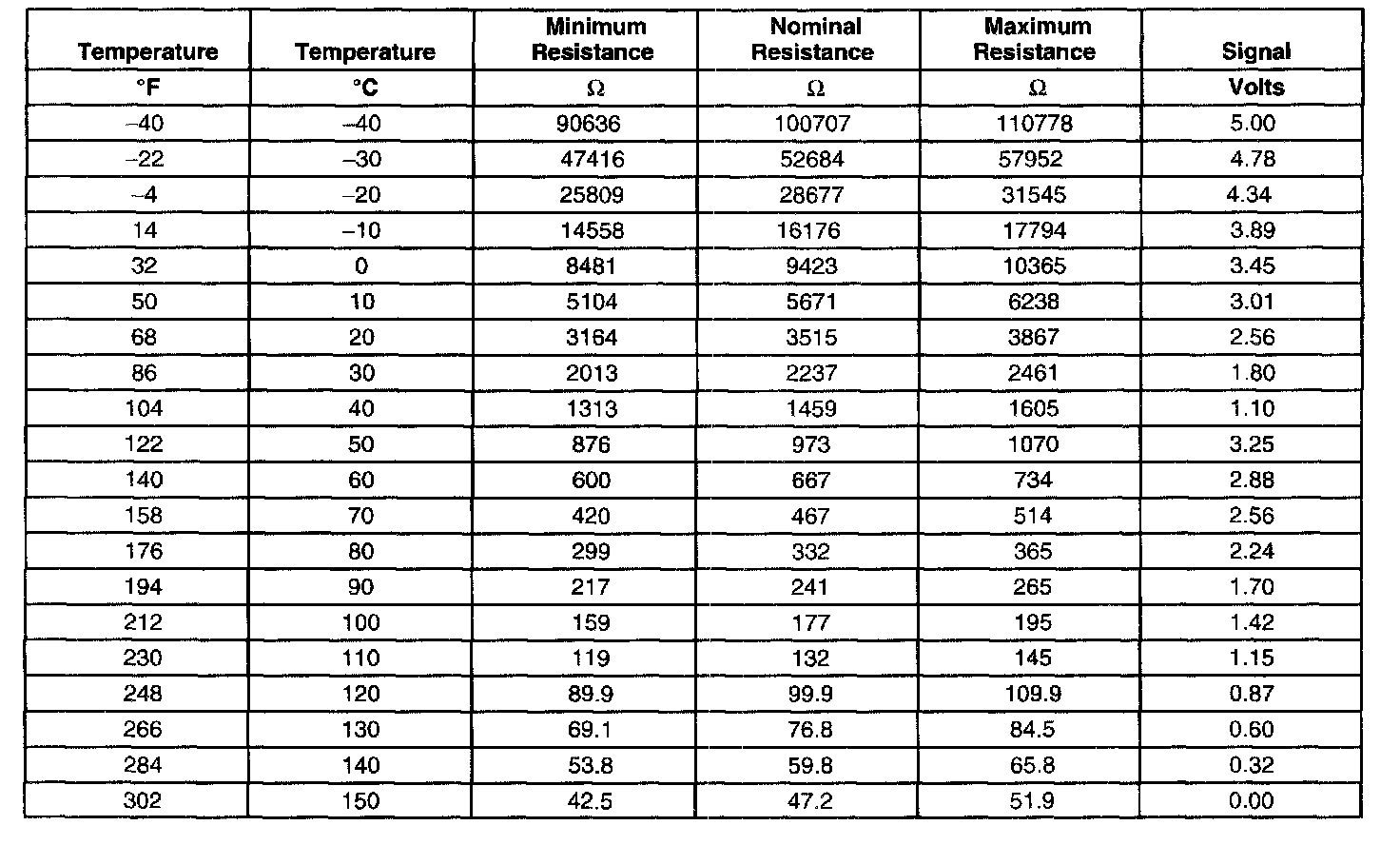

Transmission Fluid Temperature (TFT) Sensor Specifications





Transmission Internal Mode Switch Logic

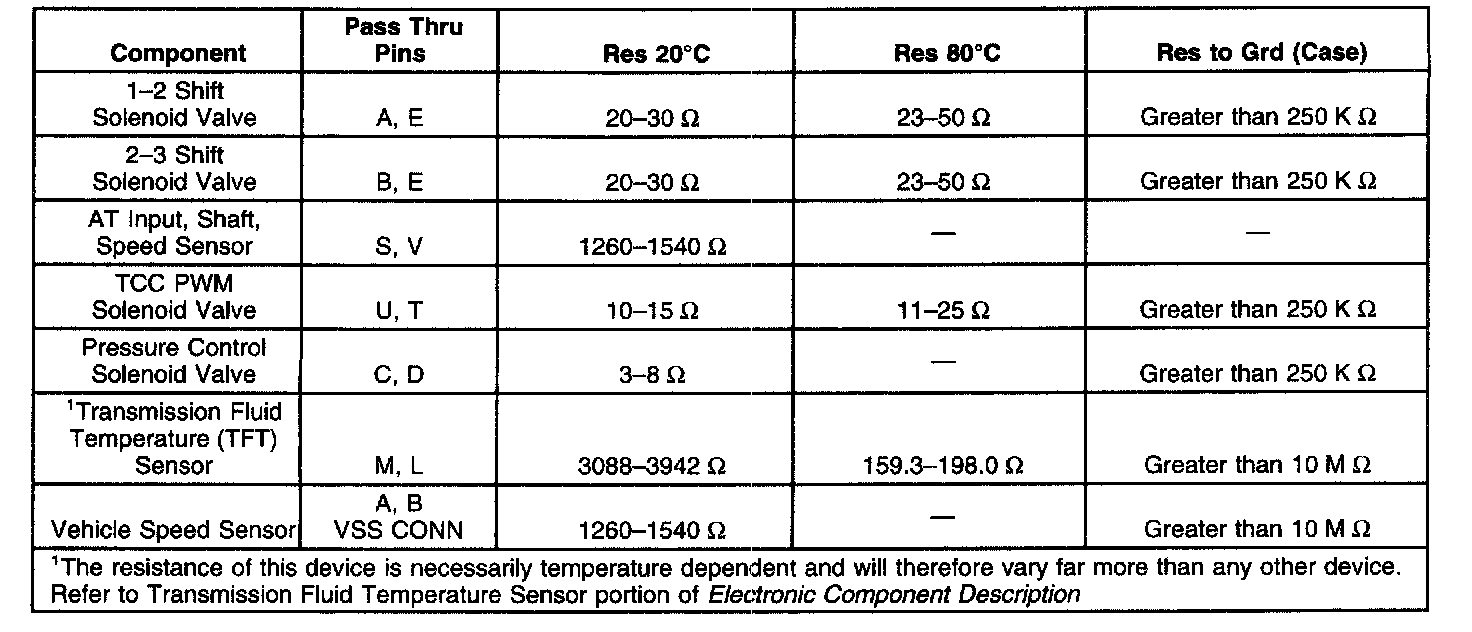

Component Resistance





Transmission Fluid Pressure (TFP) Manual
