Keyless Entry Component Views

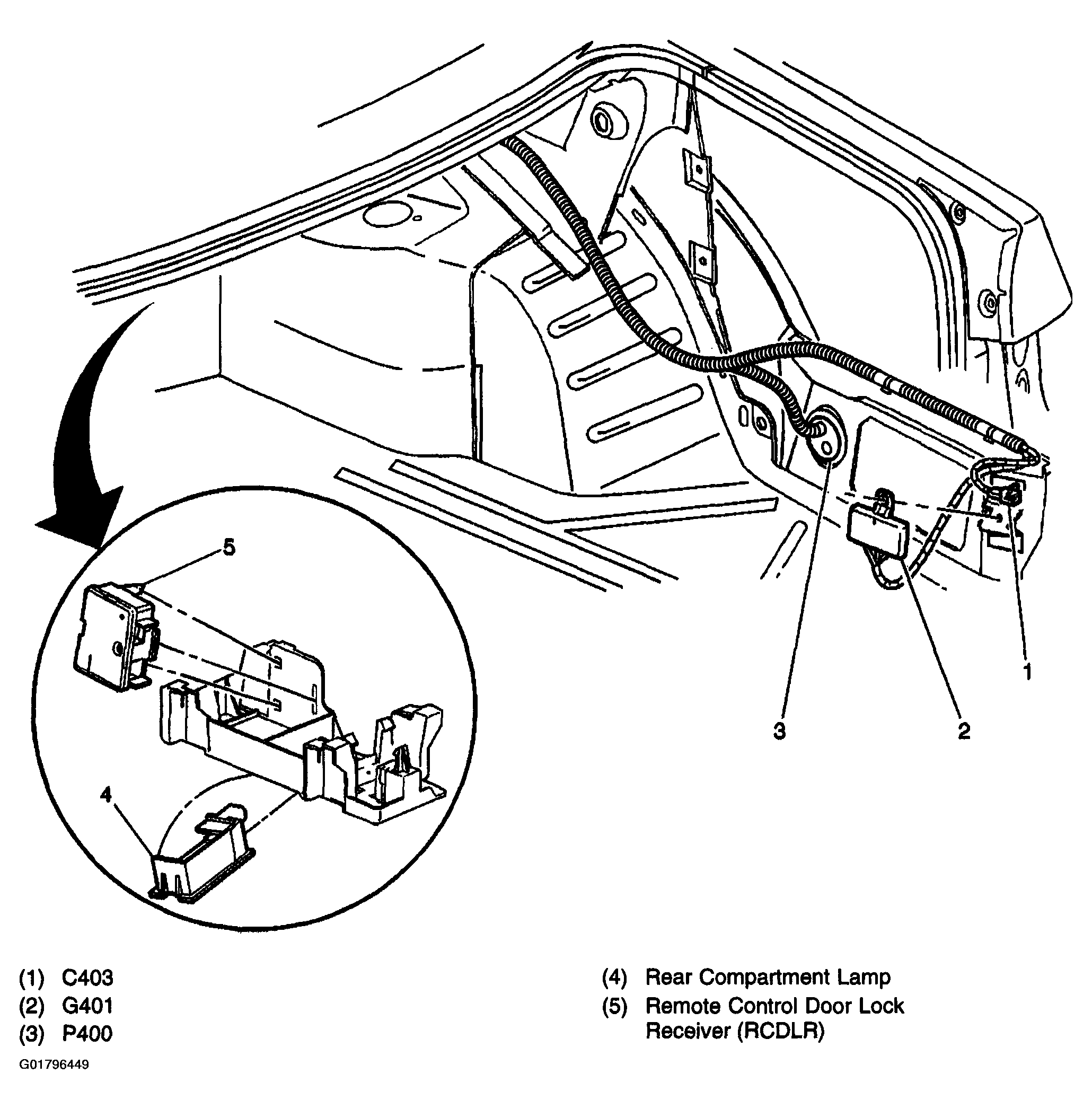

Fig 1: Locating RCDLR, Rear Comp Lamp, C403, G401 and P400
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
