Wiper/Washer System Component Views

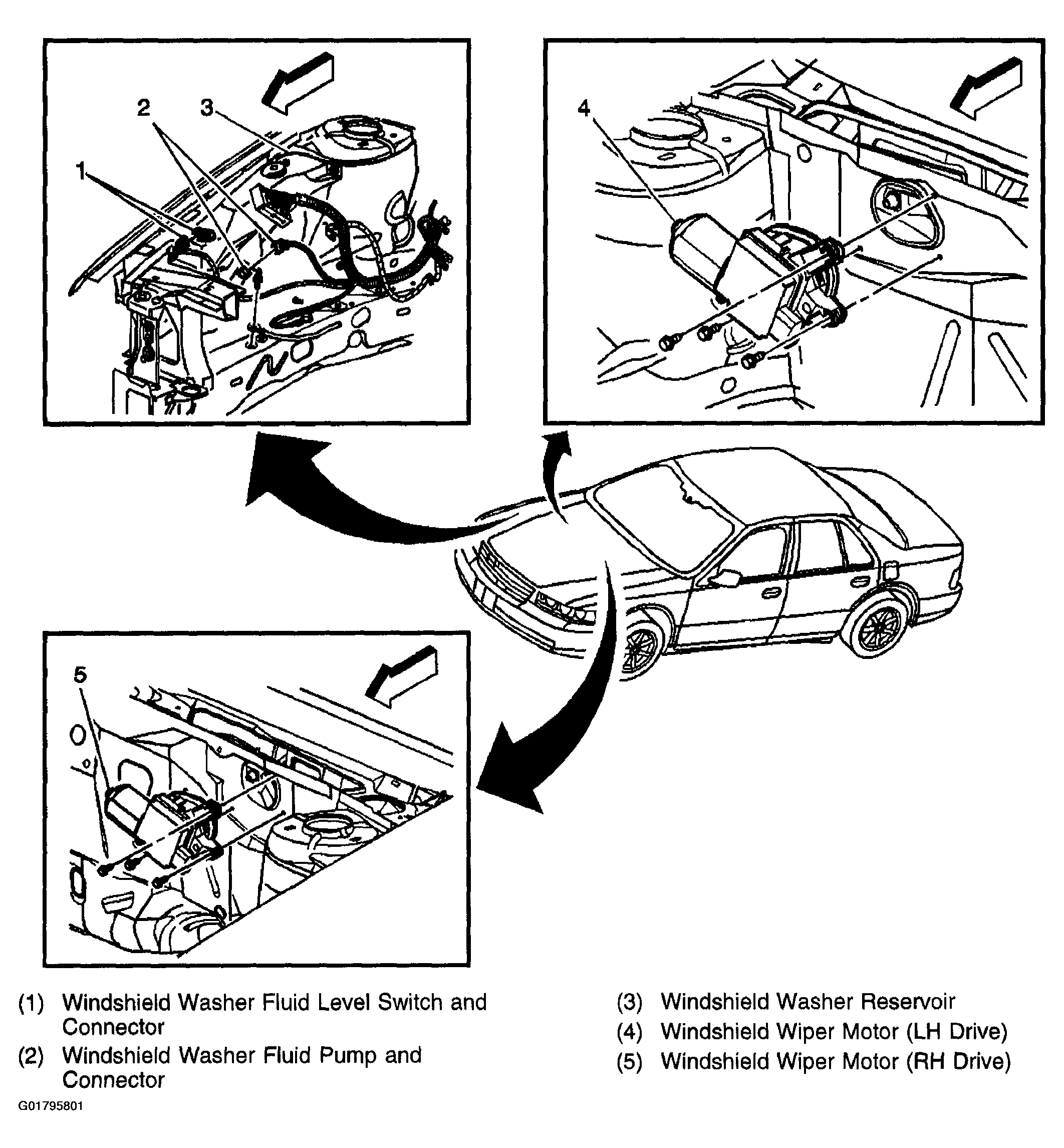

Fig 1: Wiper Washer System Sub-System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
