Wiper/Washer System Connector End Views

Fig 1: Headlamp Washer Fluid Level Switch (Export)

Courtesy of GENERAL MOTORS CORP.

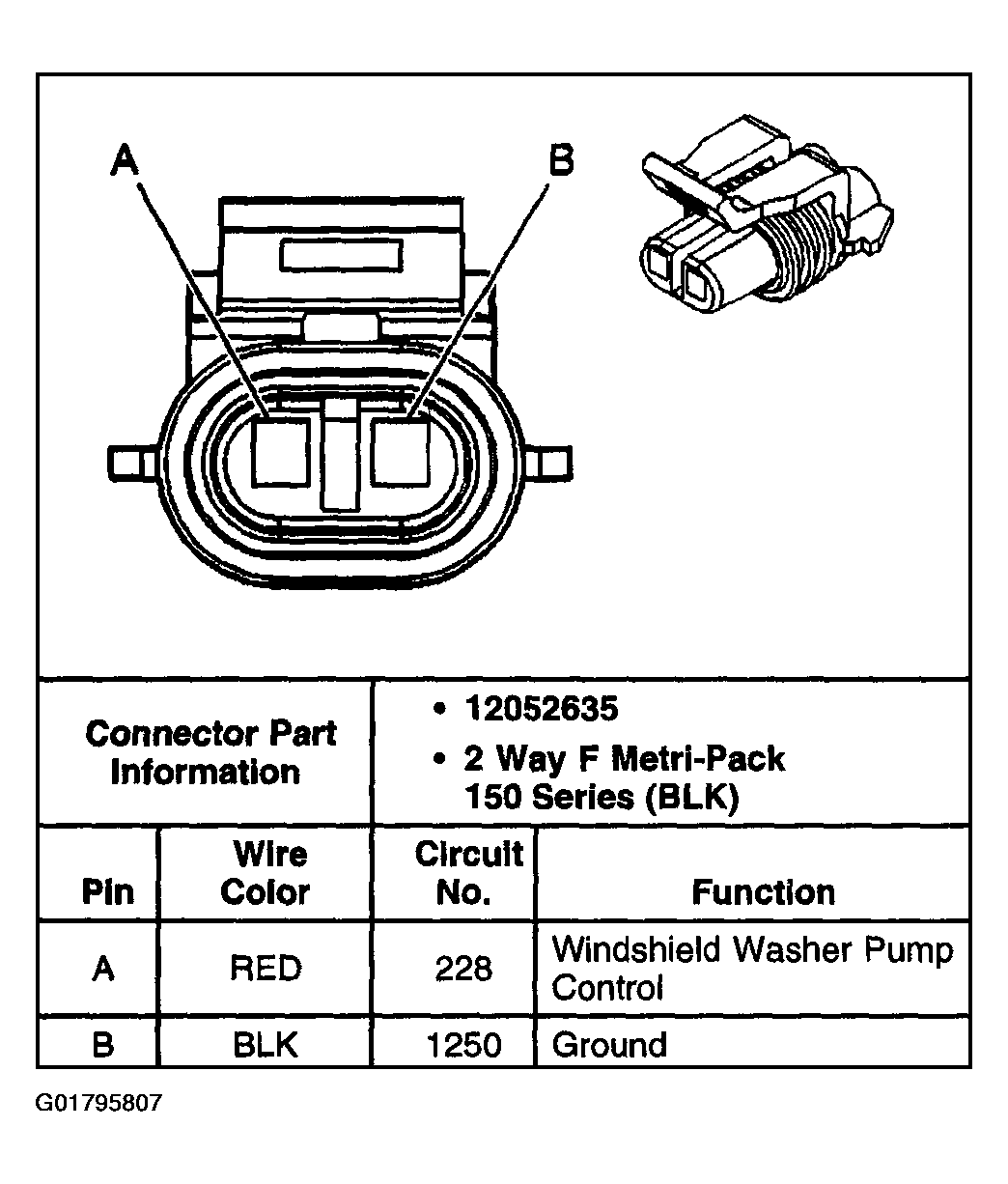

Fig 2: Headlamp Washer Fluid Pump (Export)

Courtesy of GENERAL MOTORS CORP.

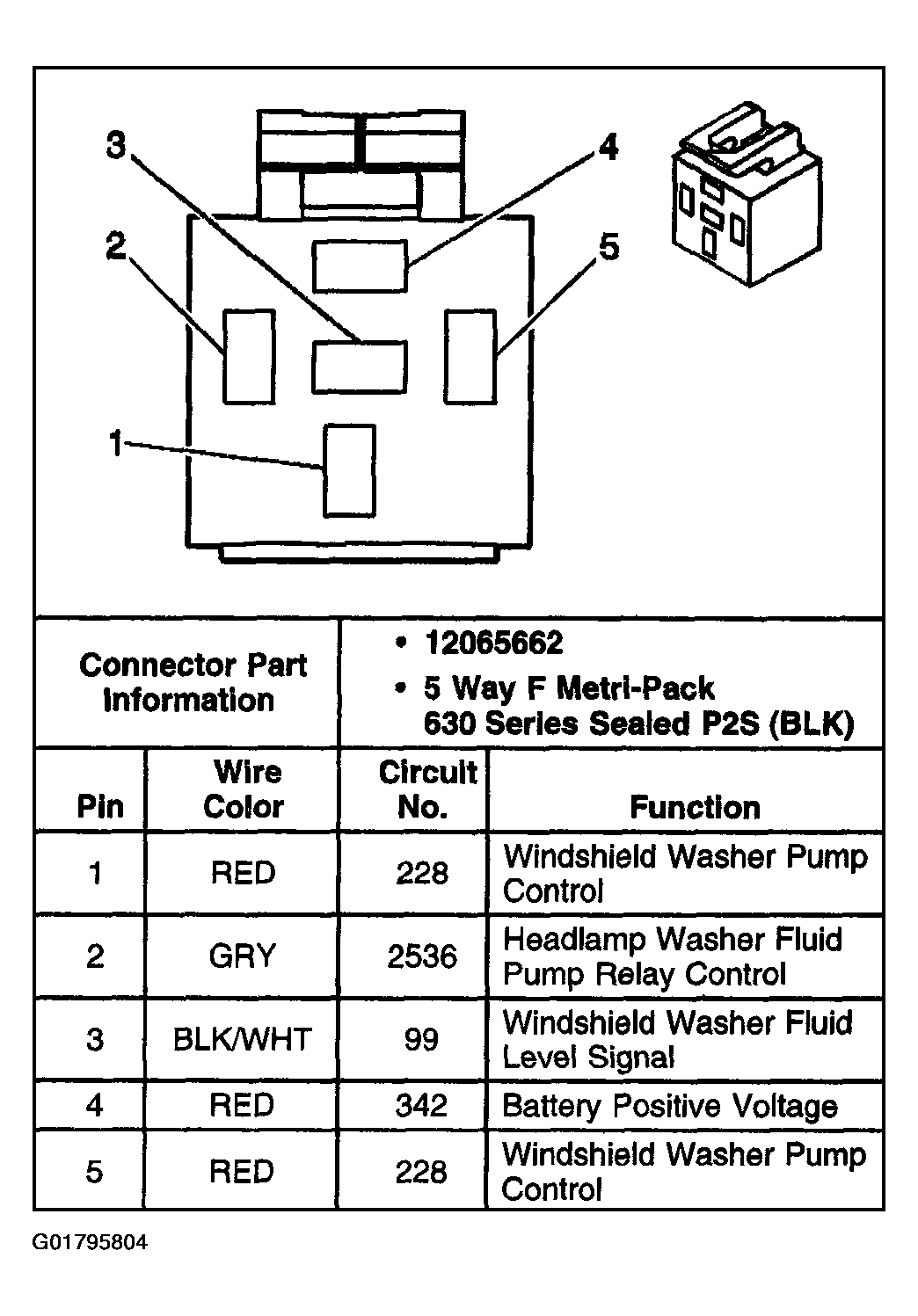

Fig 3: Headlamp Washer Fluid Pump Relay (Export)

Courtesy of GENERAL MOTORS CORP.

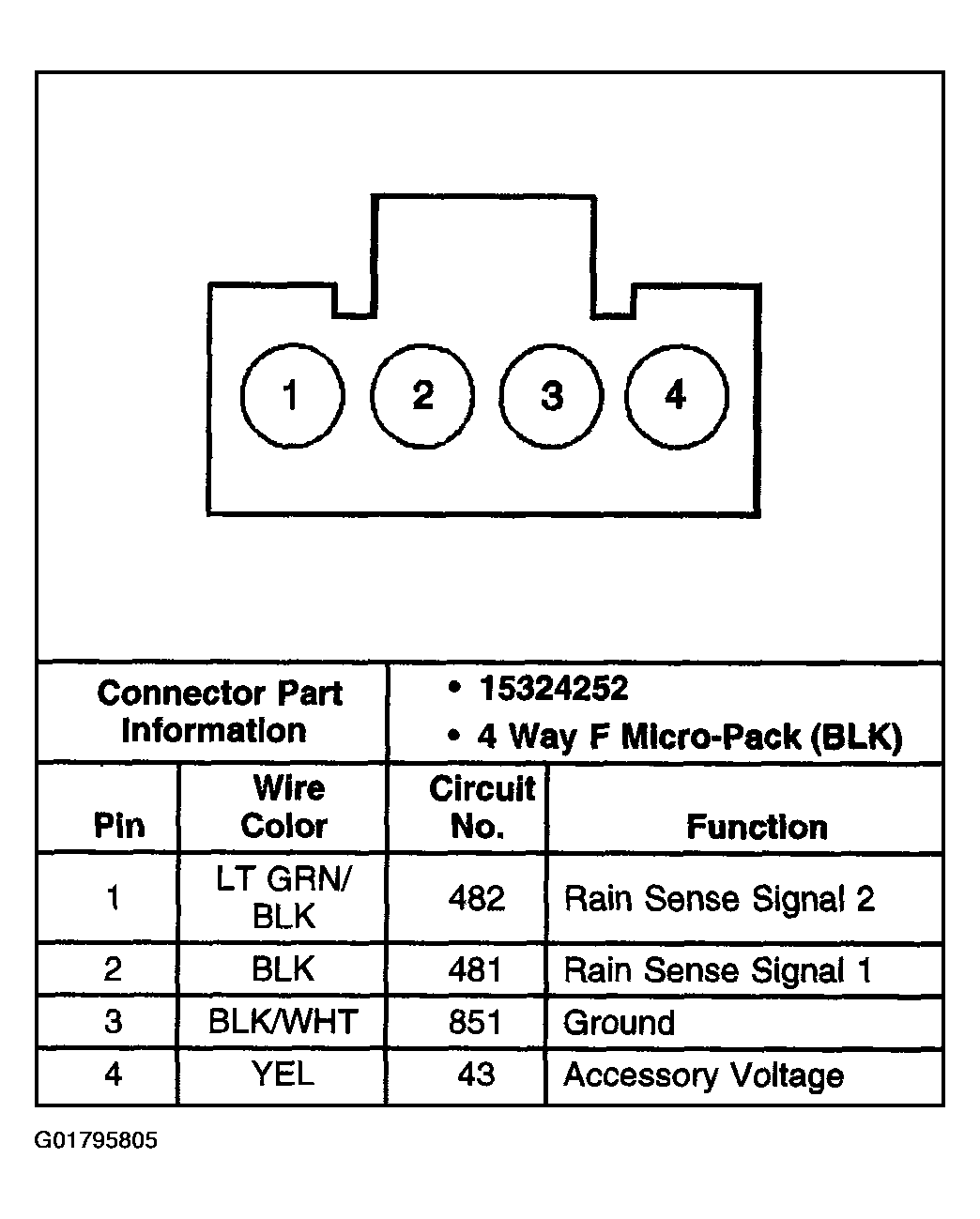

Fig 4: Outside Moisture Sensor

Courtesy of GENERAL MOTORS CORP.

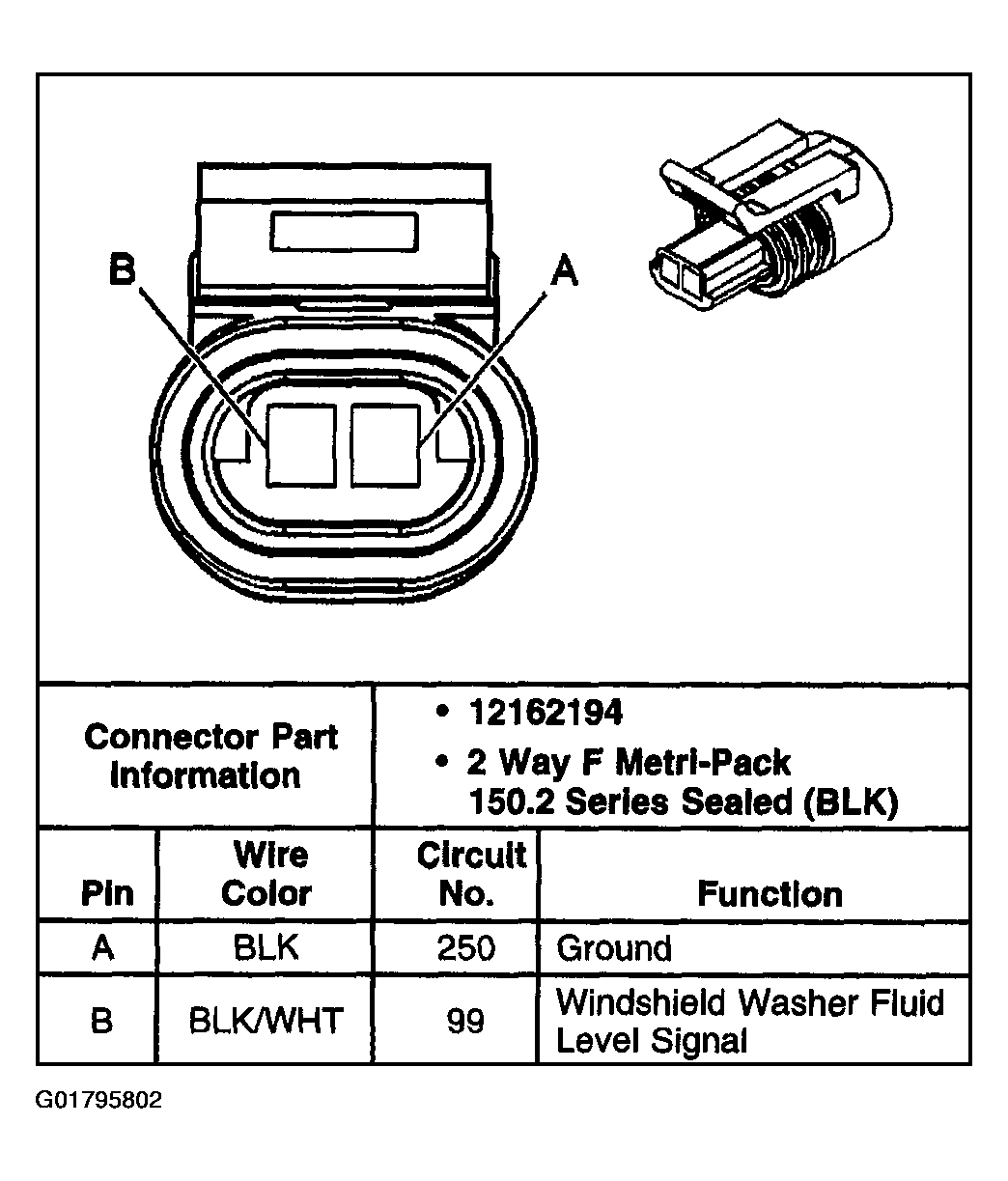

Fig 5: Windshield Washer Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.

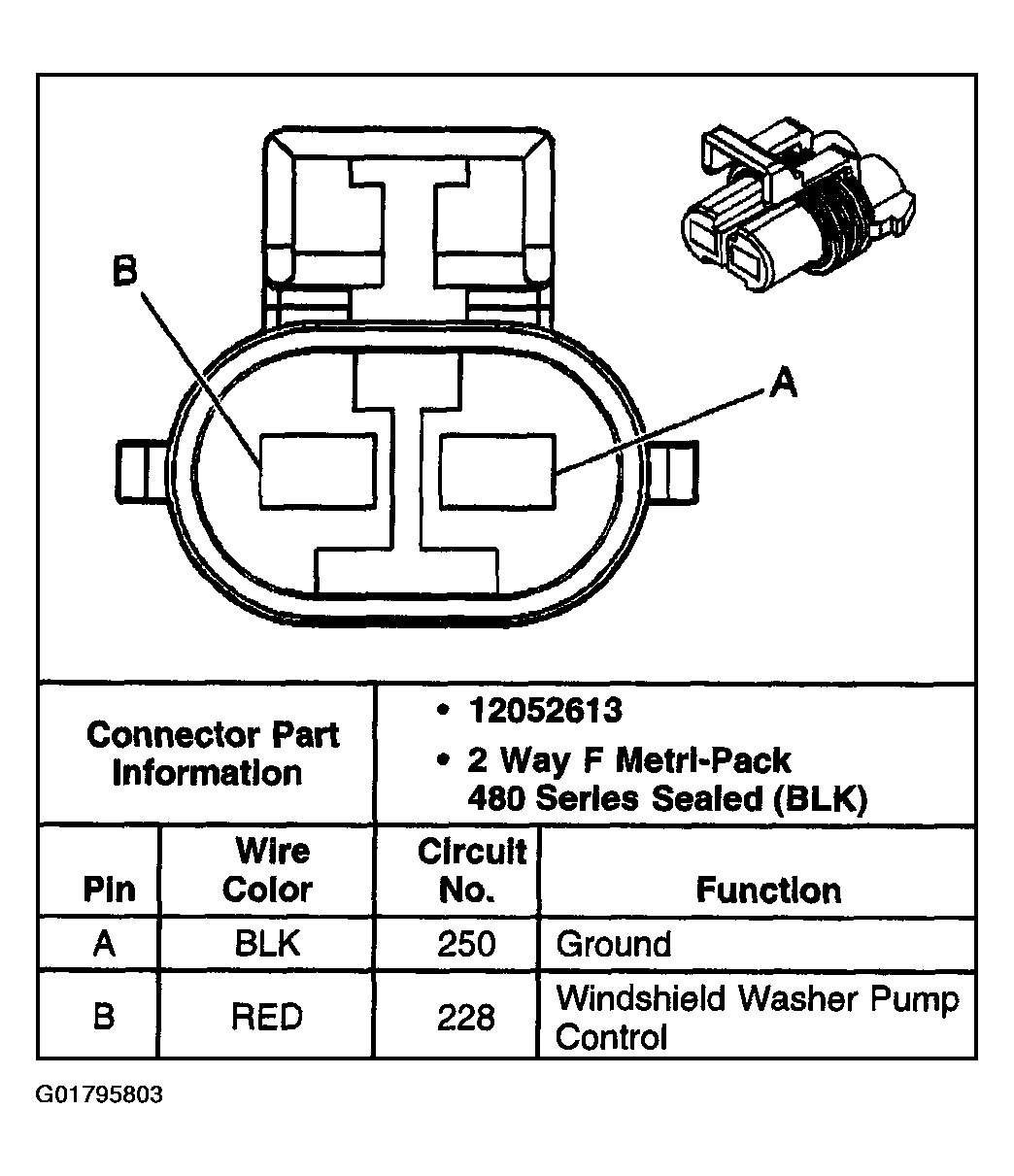

Fig 6: Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

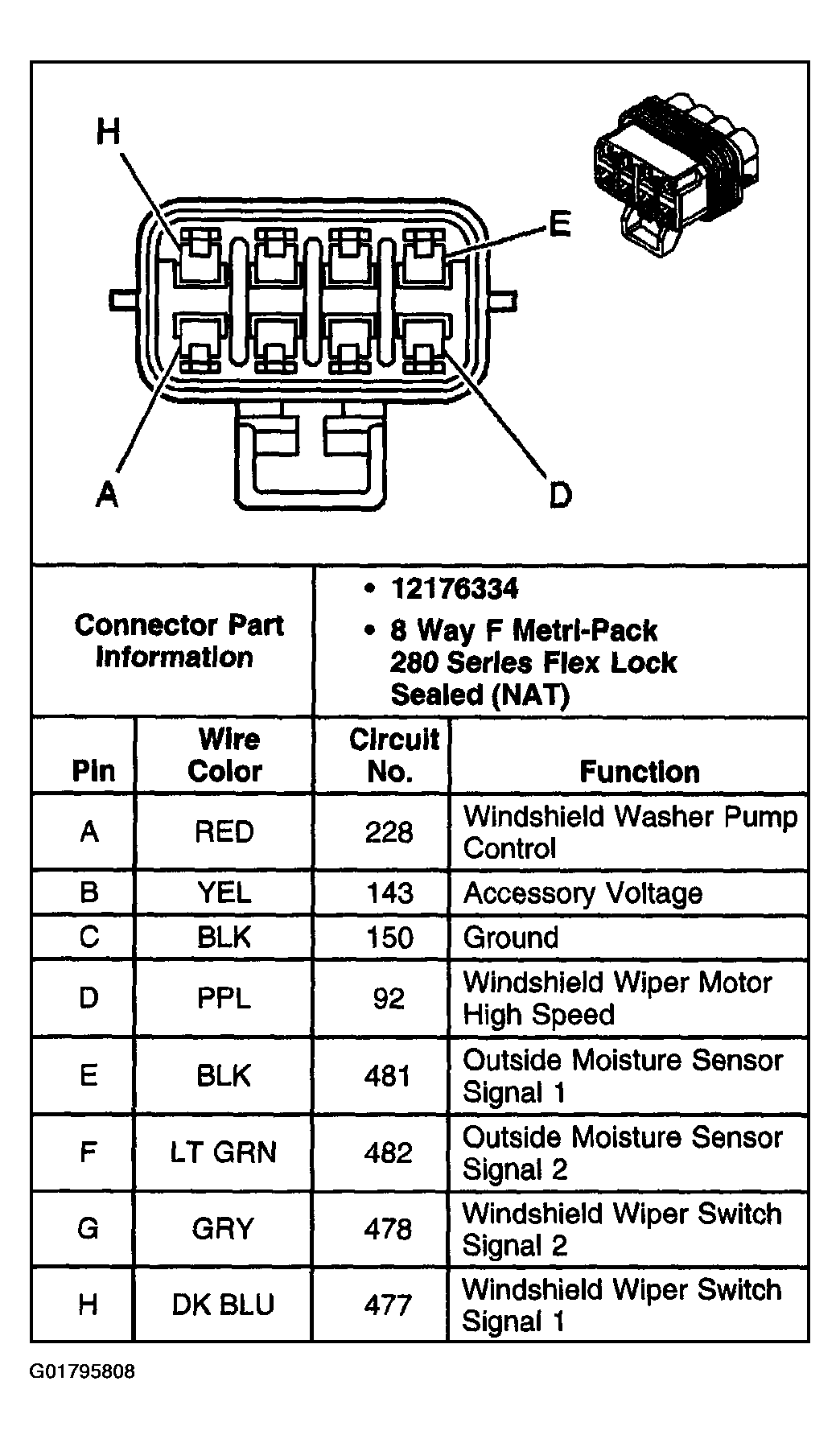

Fig 7: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
