Power Door Systems Component Views

Fig 1: Front Door (LH Drive)
G01797337Courtesy of GENERAL MOTORS CORP.

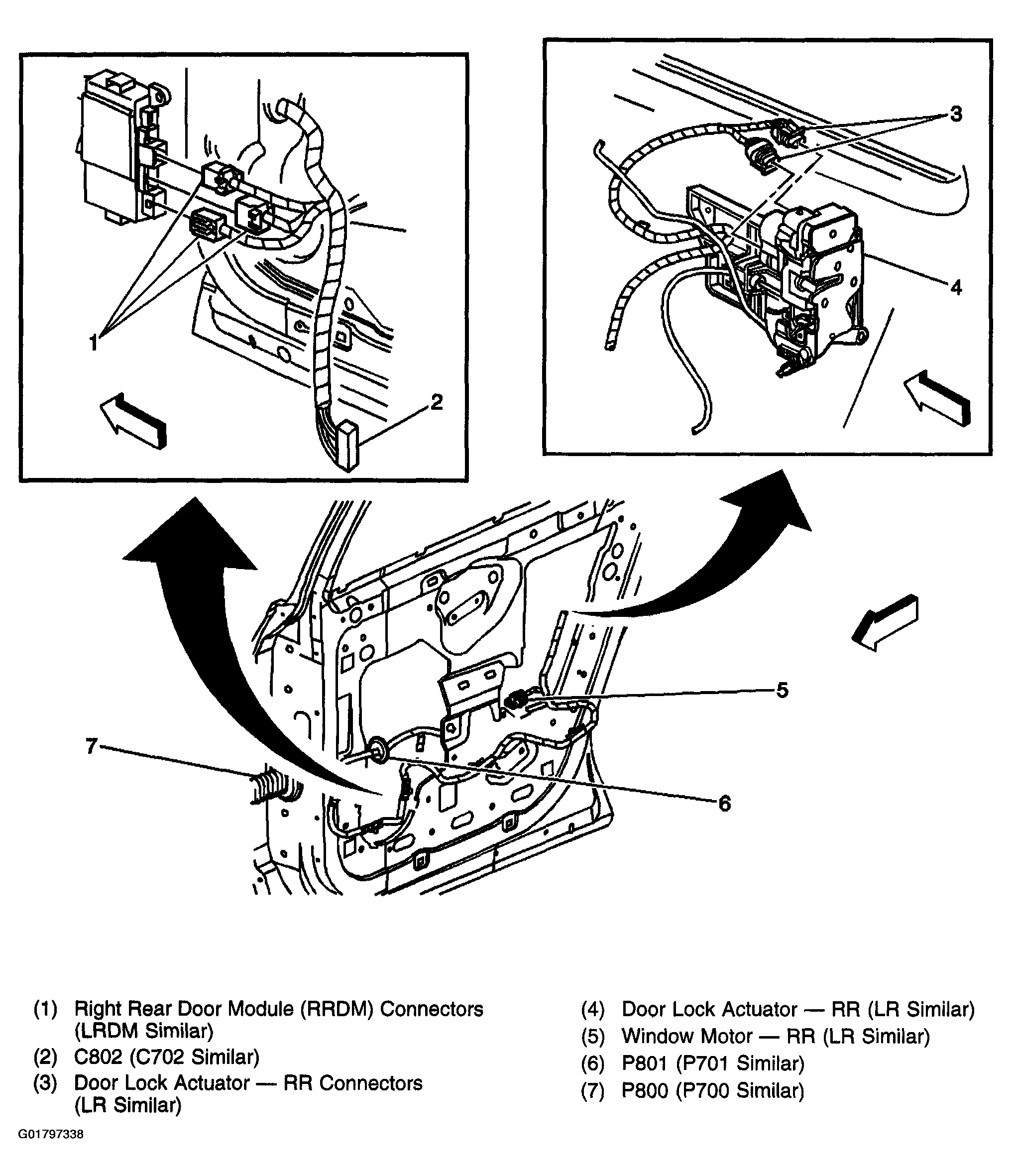

Fig 2: Rear Door
G01797338Courtesy of GENERAL MOTORS CORP.
