Memory/Personalization Function Switch Connector End View

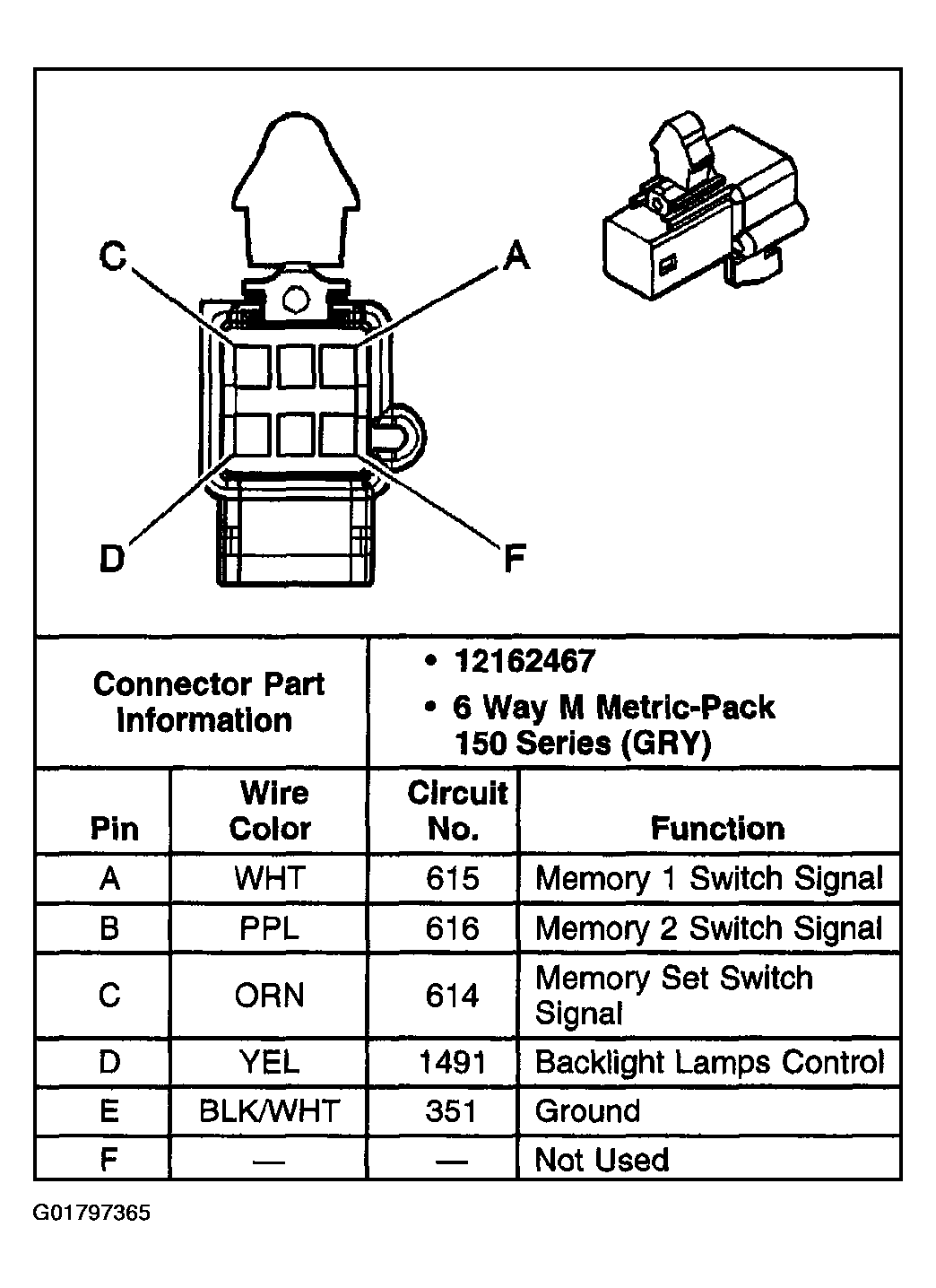

Fig 1: Memory/Personalization Function Switch
G01797365Courtesy of GENERAL MOTORS CORP.
