Driver Door Module (DDM) Connector End View C3

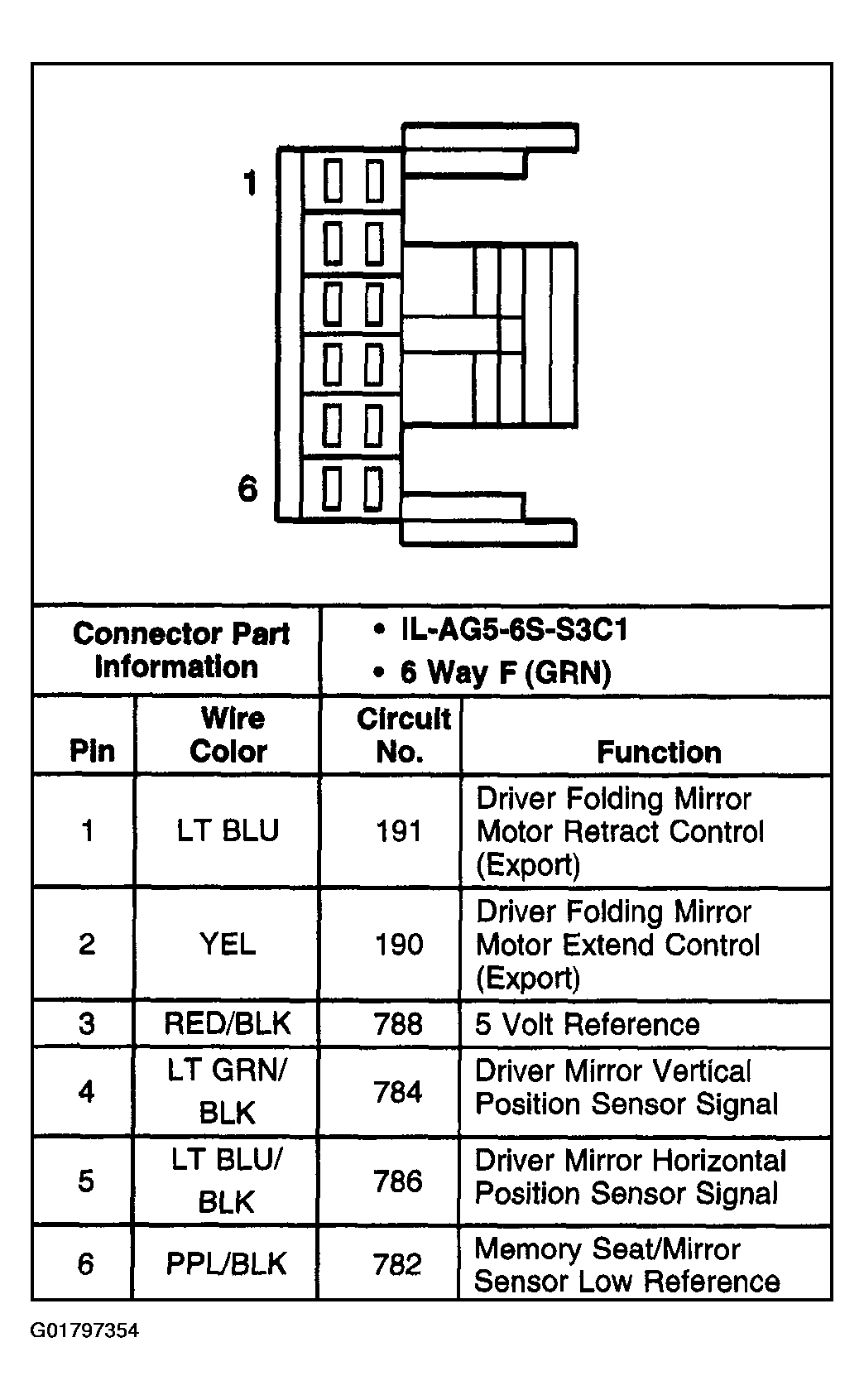

Fig 1: Driver Door Module (DDM) C3
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
