Electronic Suspension Control (ESC) Module Connector End View C2 (w/F55)

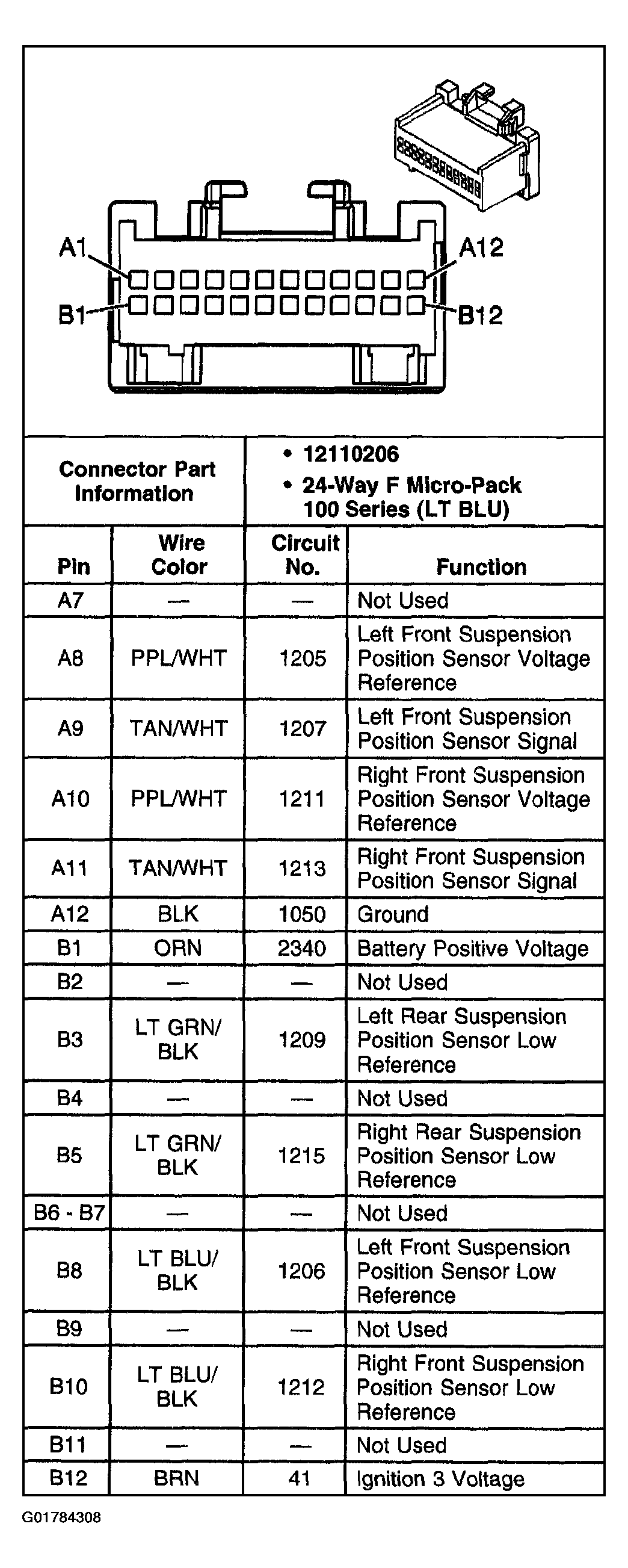

Fig 1: Electronic Suspension Control (ESC) Module C2 (w/F55)
G01784308Courtesy of GENERAL MOTORS CORP.

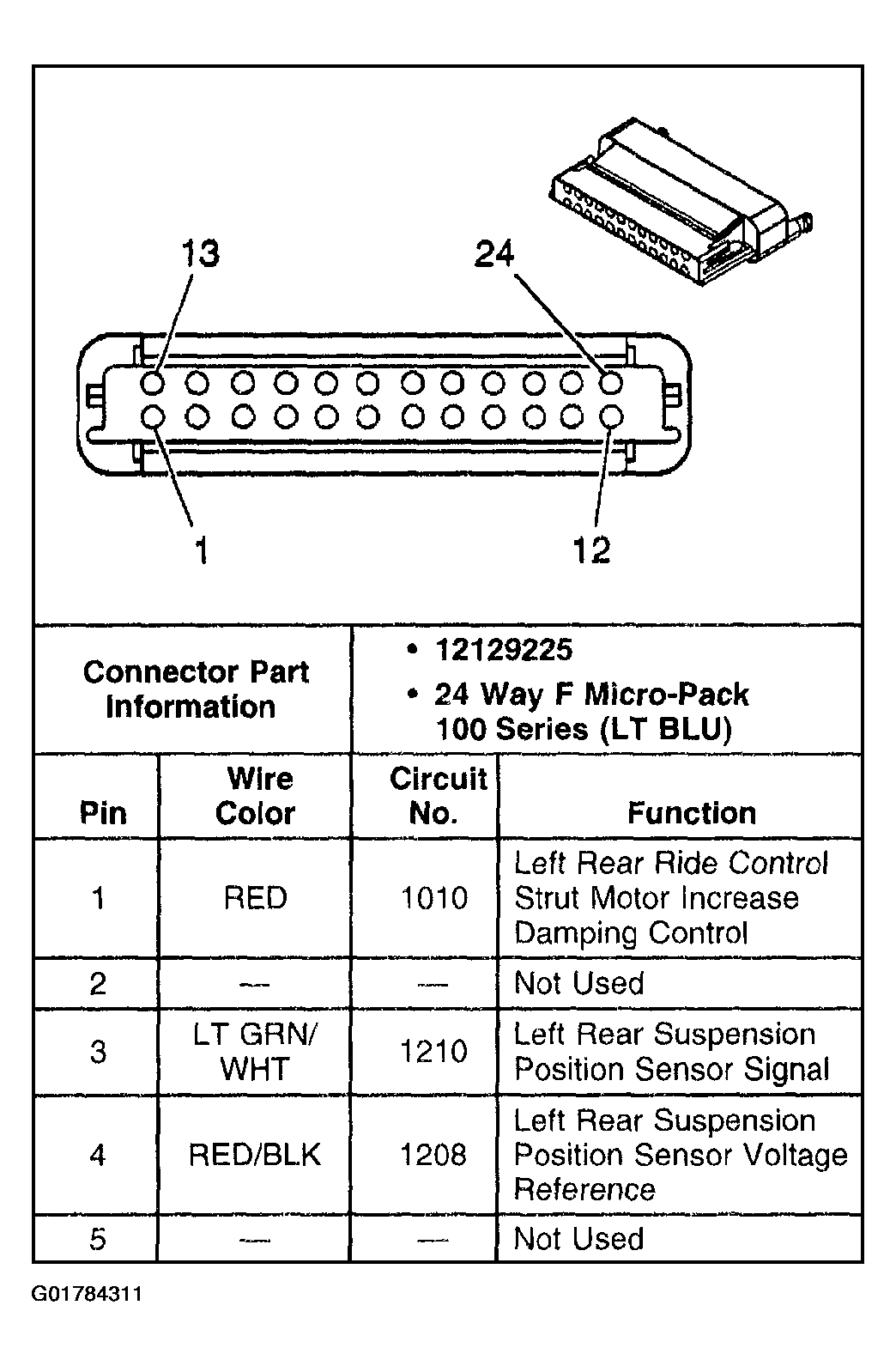

Fig 1: Electronic Suspension Control (ESC) Module C2 (w/F55)
G01784311Courtesy of GENERAL MOTORS CORP.

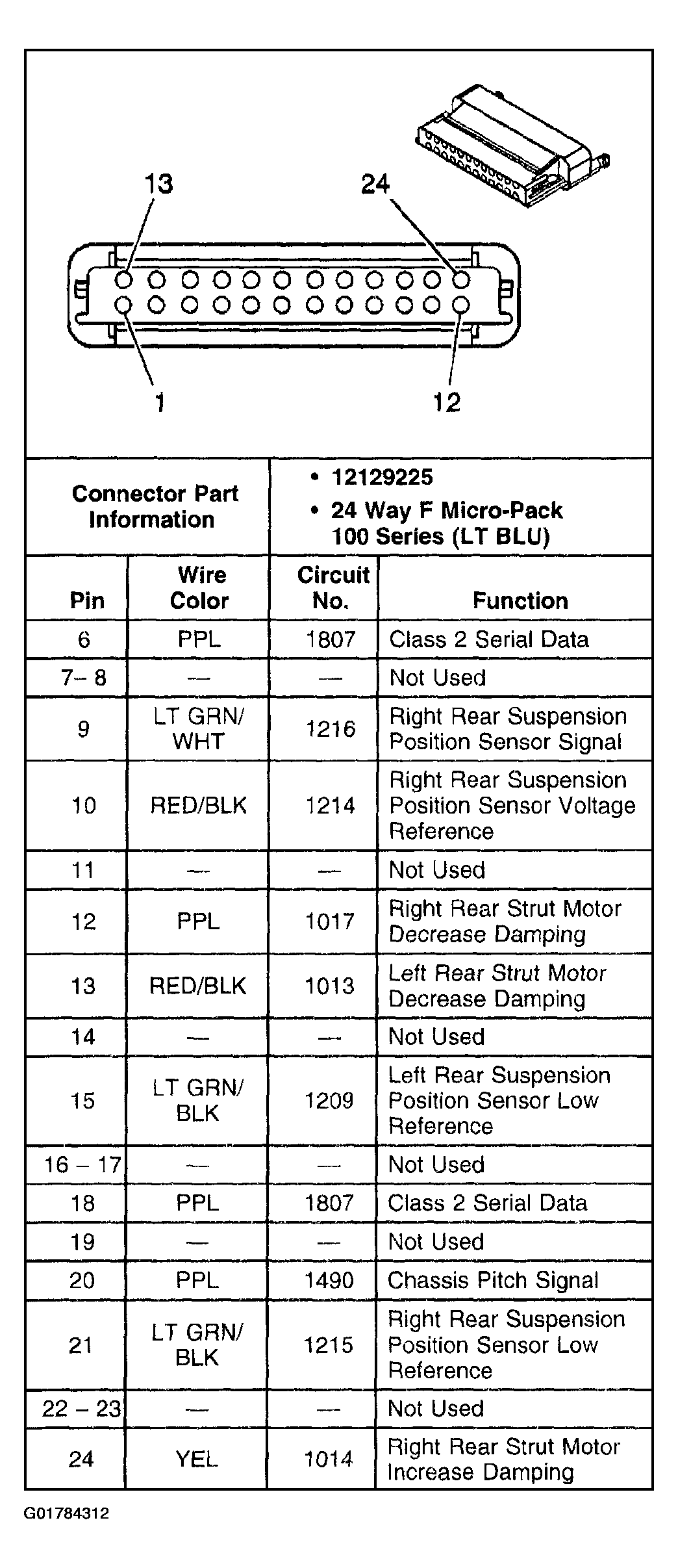

Fig 1: Electronic Suspension Control (ESC) Module C2 (w/F55)
G01784312Courtesy of GENERAL MOTORS CORP.
