Seat Horizontal Motor Connector End View - Driver

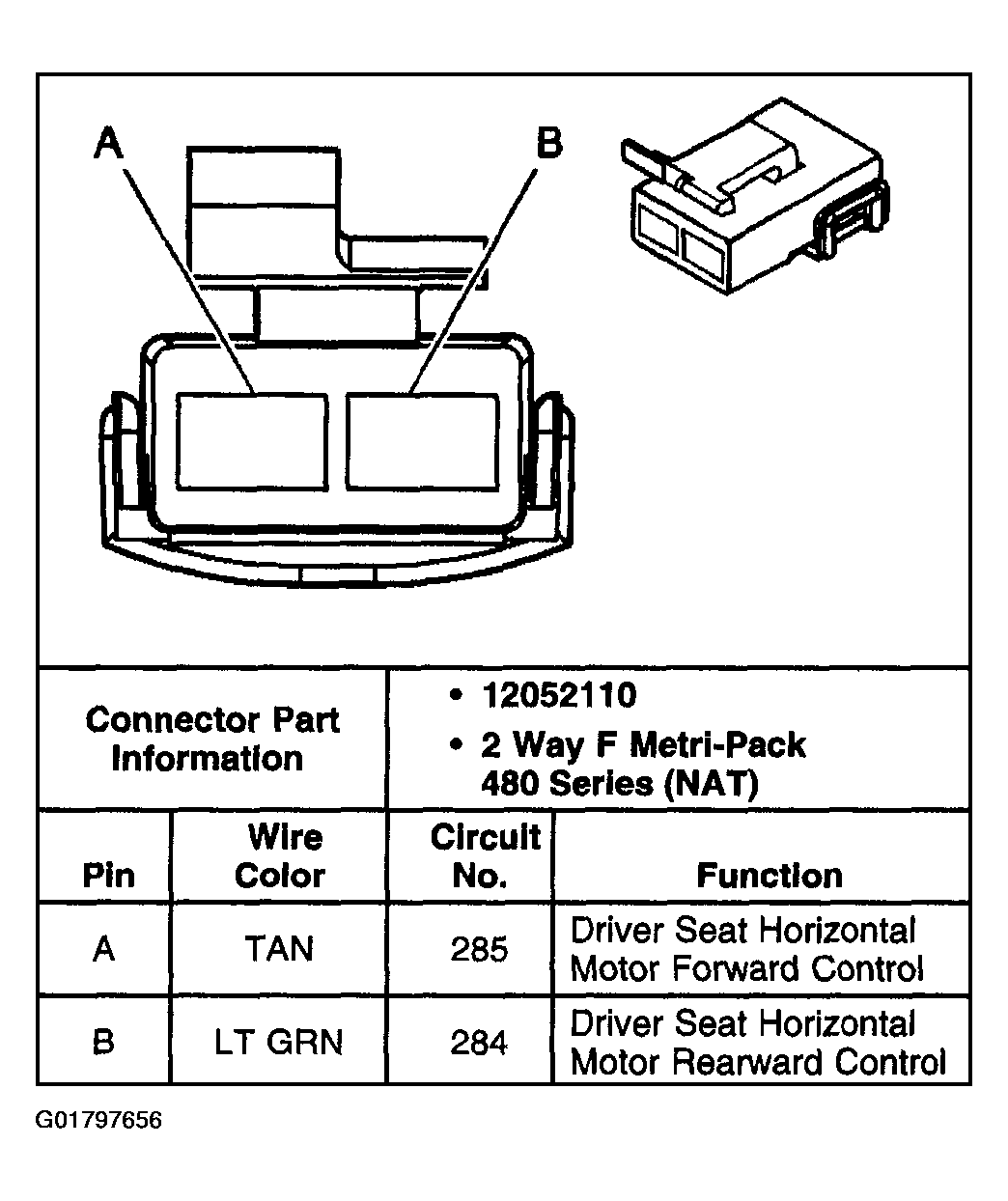

Fig 1: Seat Horizontal Motor - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
