Seat Horizontal Motor Connector End View - Front Passenger

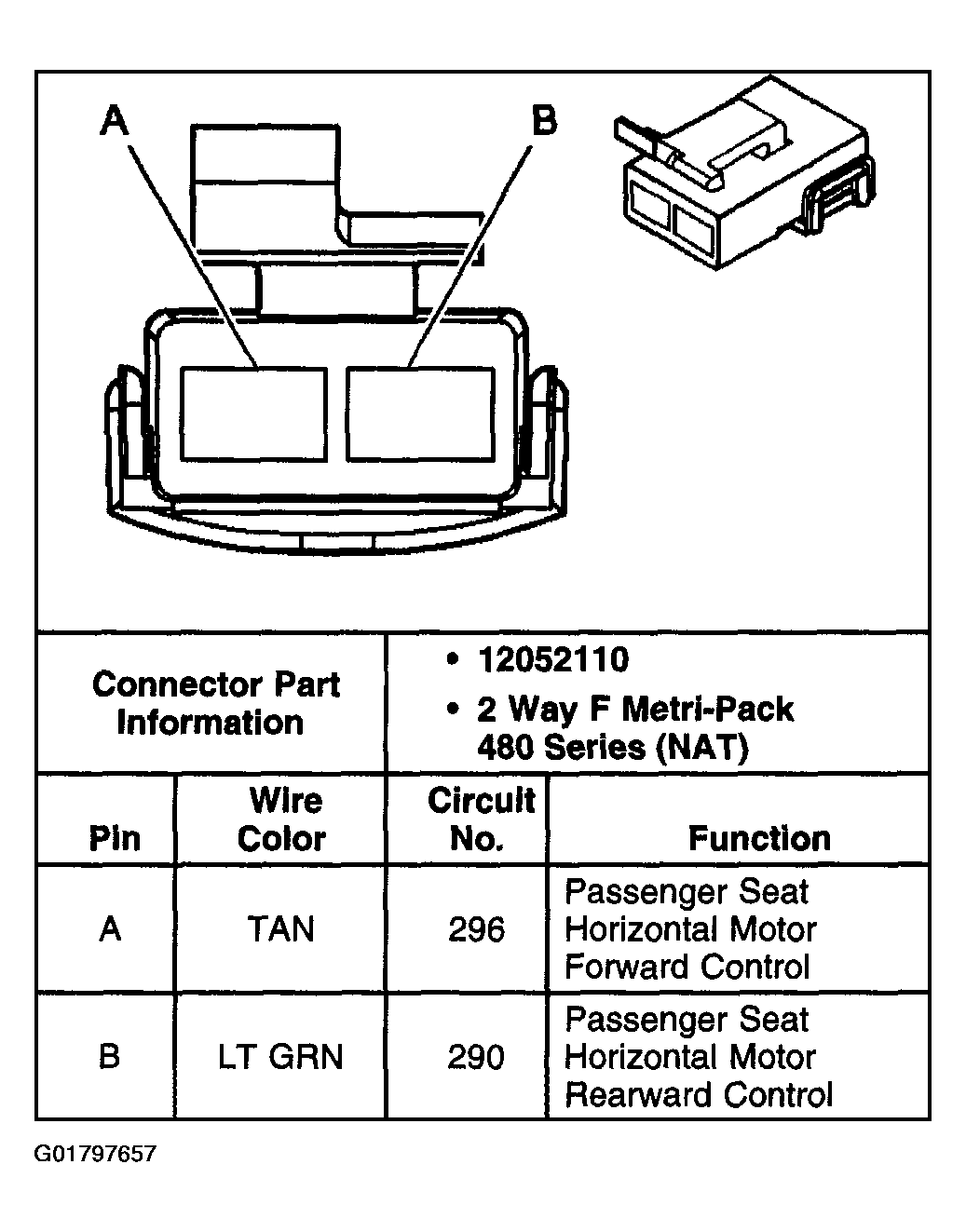

Fig 1: Seat Horizontal Motor - Front Passenger
G01797657Courtesy of GENERAL MOTORS CORP.
