Sunroof Module Connector End View C2

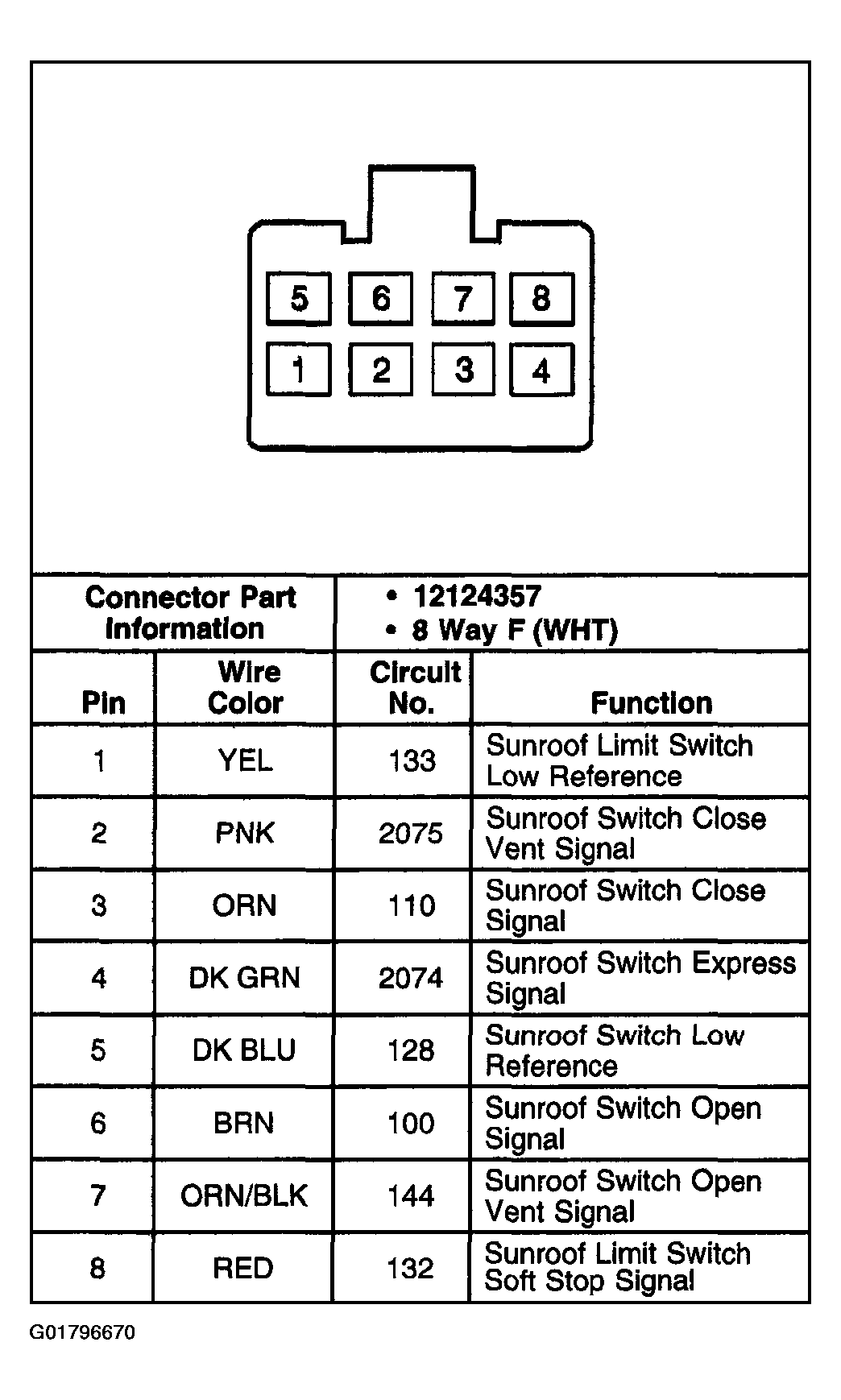

Fig 1: Sunroof Module C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
