Exchange Program-Parts Restriction Program For Magnetic Ride Control Suspension System Components (02-03-11-001A)

Publication date: 2002-05-01
Reference number: 02-03-11-001A
Supersedes refnos: 02-03-11-001

EXCHANGE PROGRAM-PARTS RESTRICTION PROGRAM FOR MAGNETIC RIDE CONTROL SUSPENSION SYSTEM COMPONENTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-03-11-001A, Date of Issue: May, 2002

CADILLAC:	2002 Seville STS with RPO F55 Built After VIN Breakpoint 2U217411
SECTION:	03 - Suspension

Superceded Bulletin(s): 02-03-11-001

NOTE: This bulletin is being revised to add additional part numbers. Please discard Corporate Bulletin Number 02-03-11-001 (Section 03 - Suspension).

IMPORTANT: "IPC" dealers are not authorized to utilize this Service Bulletin.

DESCRIPTION

Exchange Program-Parts Restriction Program for Magnetic Ride Control Suspension System Components

Beginning January 15, 2002, the 2002 Cadillac Seville STS will be equipped with a new suspension system. The new system is called Magnetic Ride Control. The RPO code is F55 and will replace RPO code F45, the Continuously Variable Road Sensing Suspension System (CVRSS/CVRTD).

BULLETIN CONTENT

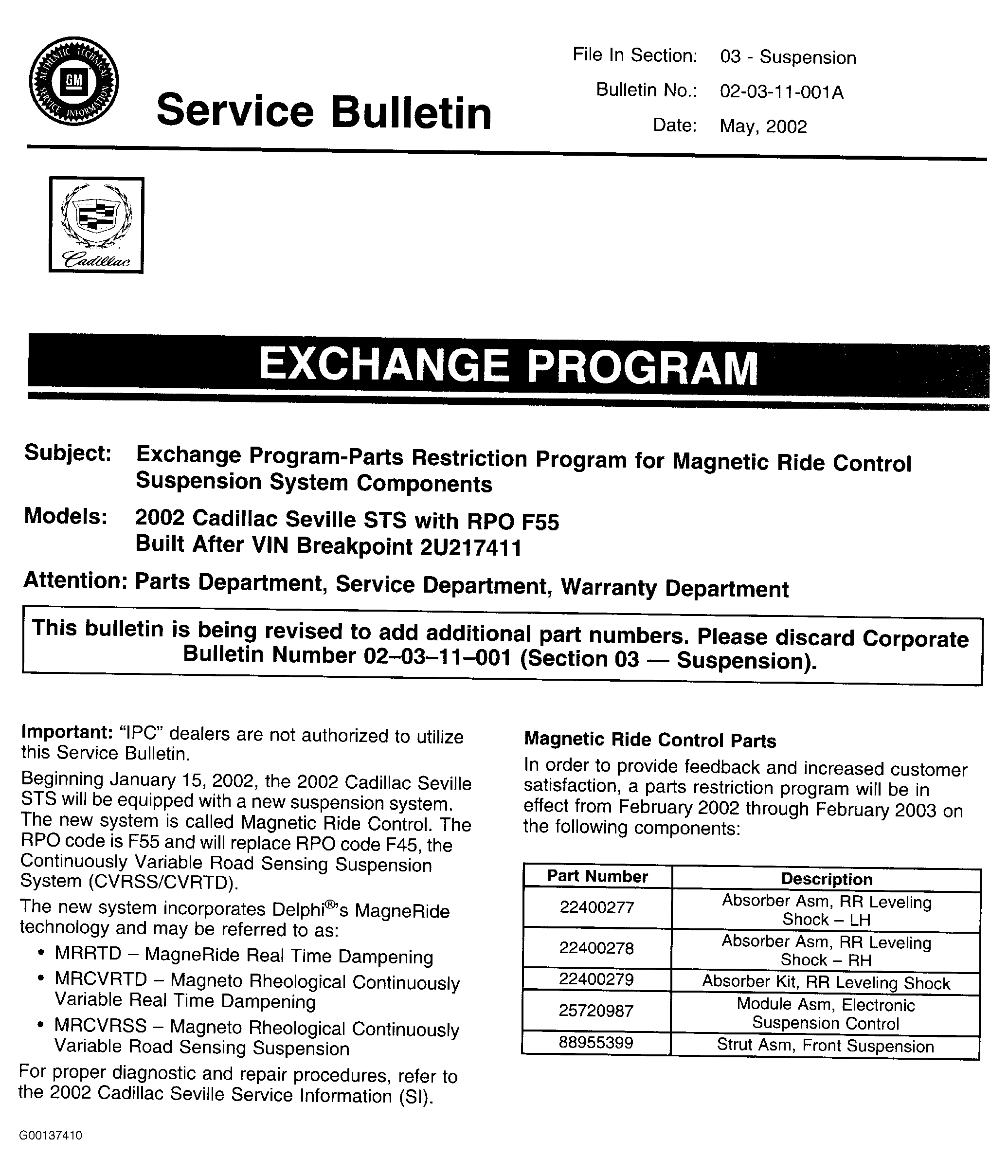

Fig 1: Page 1 of Bulletin

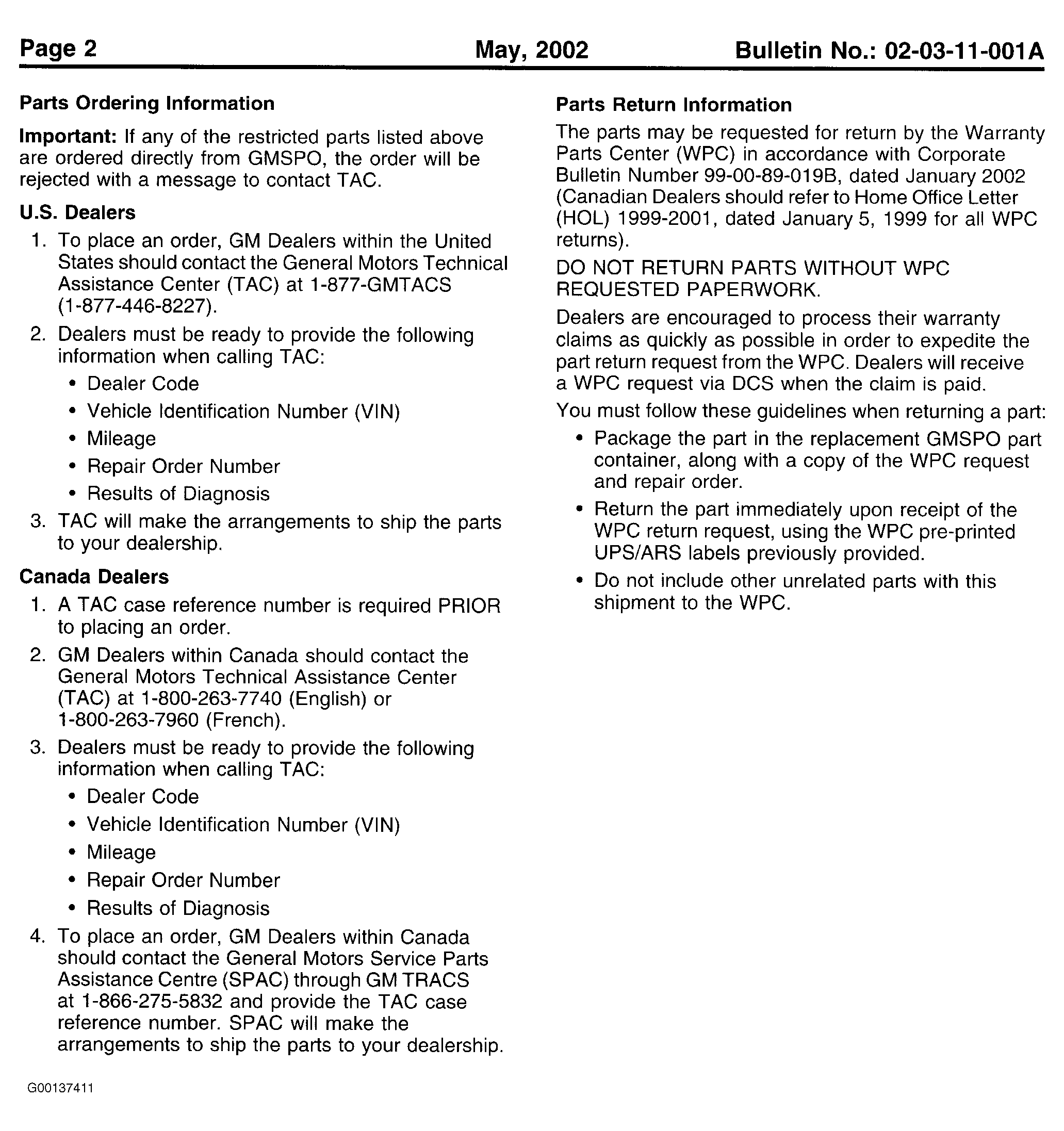

Fig 2: Page 2 of Bulletin
