Cellular Communication Component Views

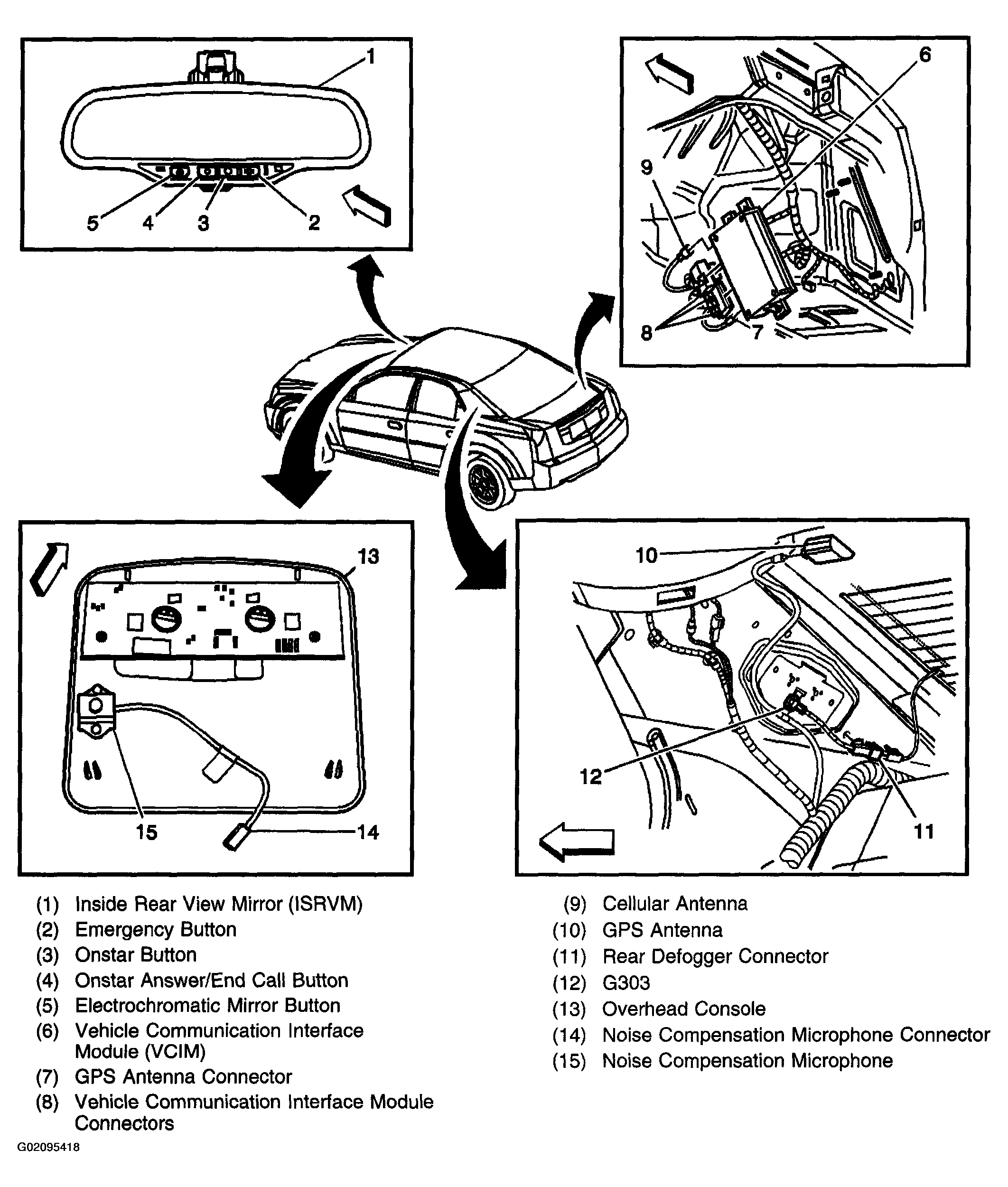

Fig 1: Component Location - Cellular Communication Sub-System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
