Wiper/Washer System Connector End Views

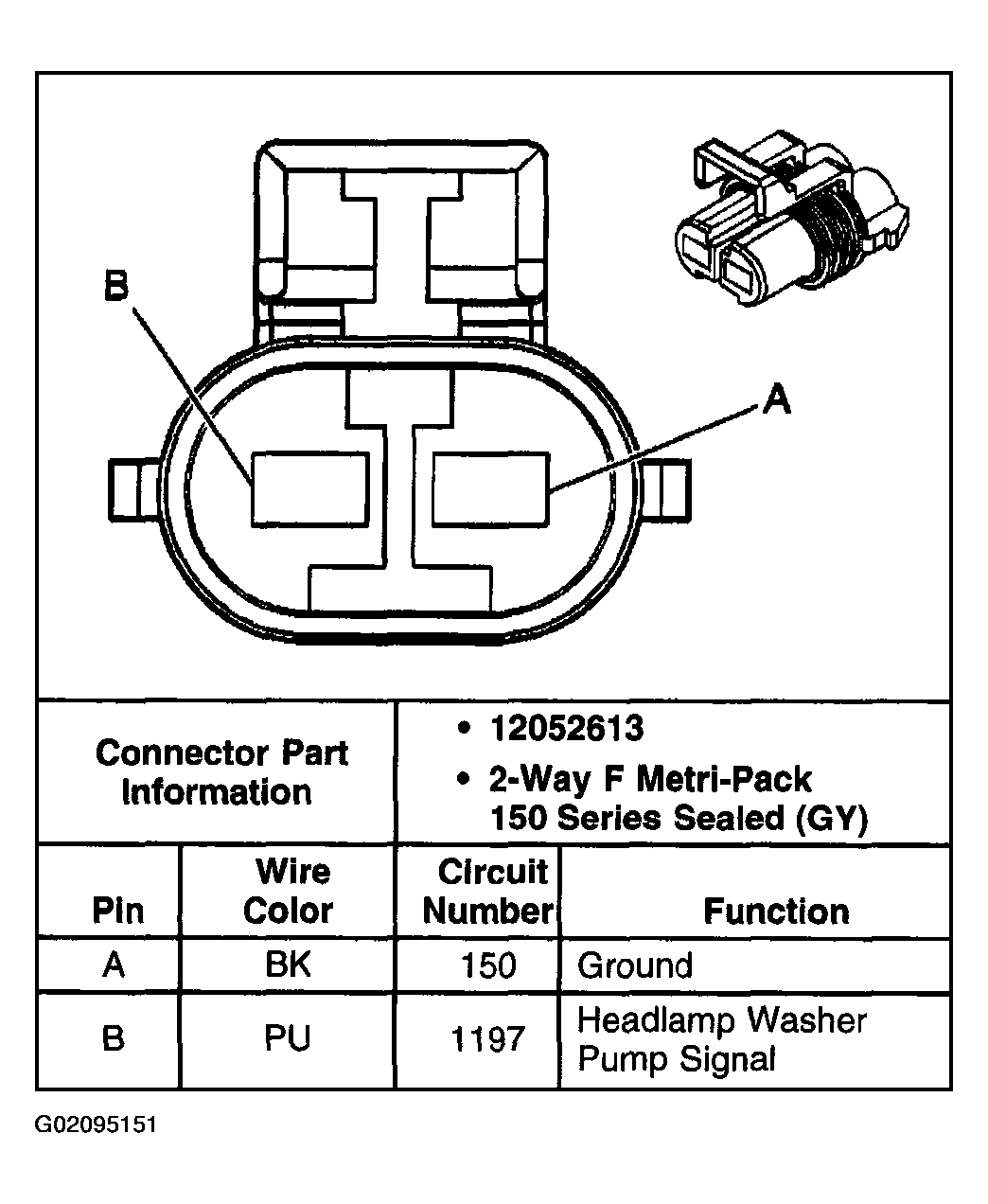

Fig 1: Headlamp Washer Fluid Pump Connector End View
G02095151Courtesy of GENERAL MOTORS CORP.

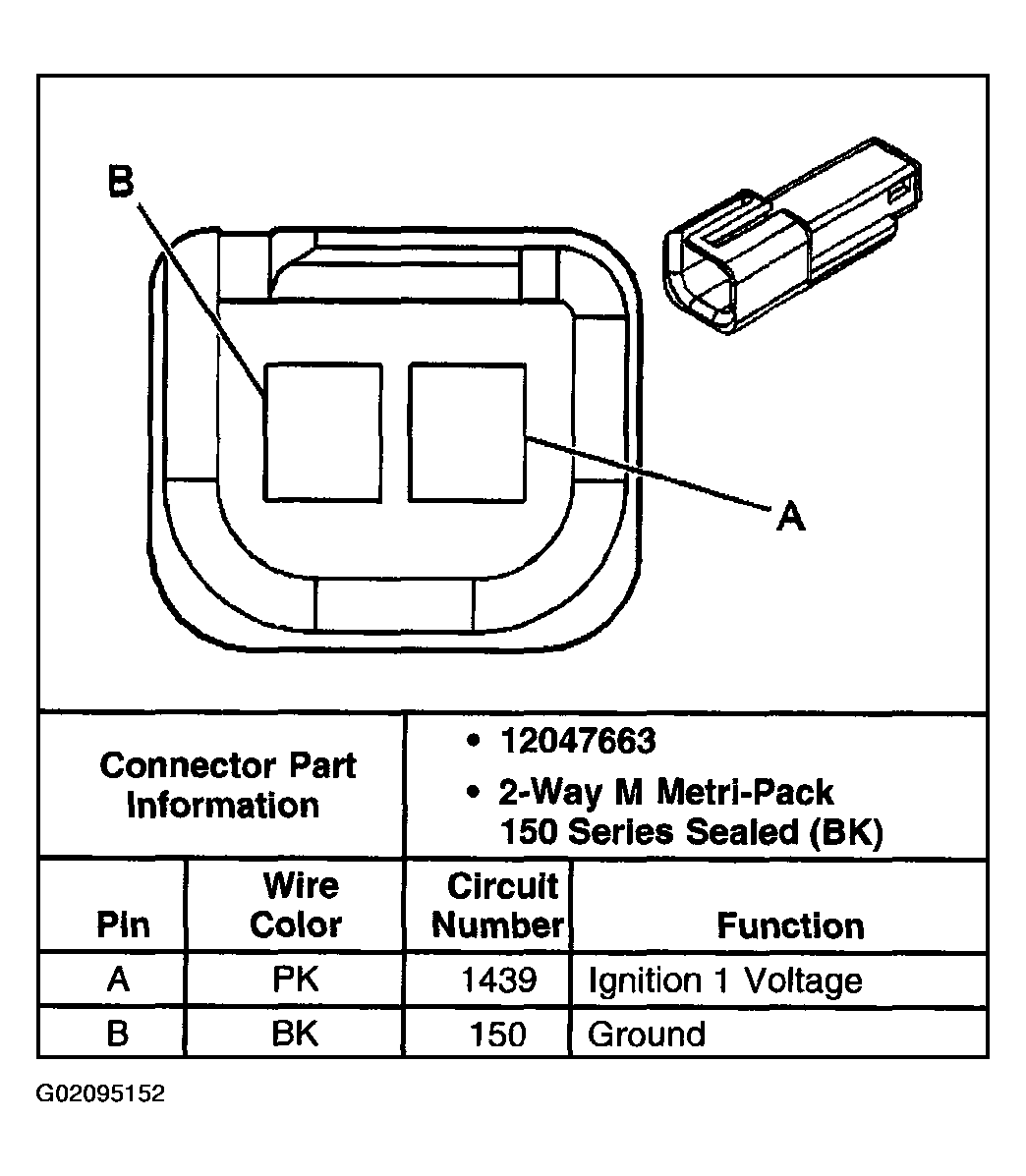

Fig 2: Heated Washer Nozzle Connector End View - Left
G02095152Courtesy of GENERAL MOTORS CORP.

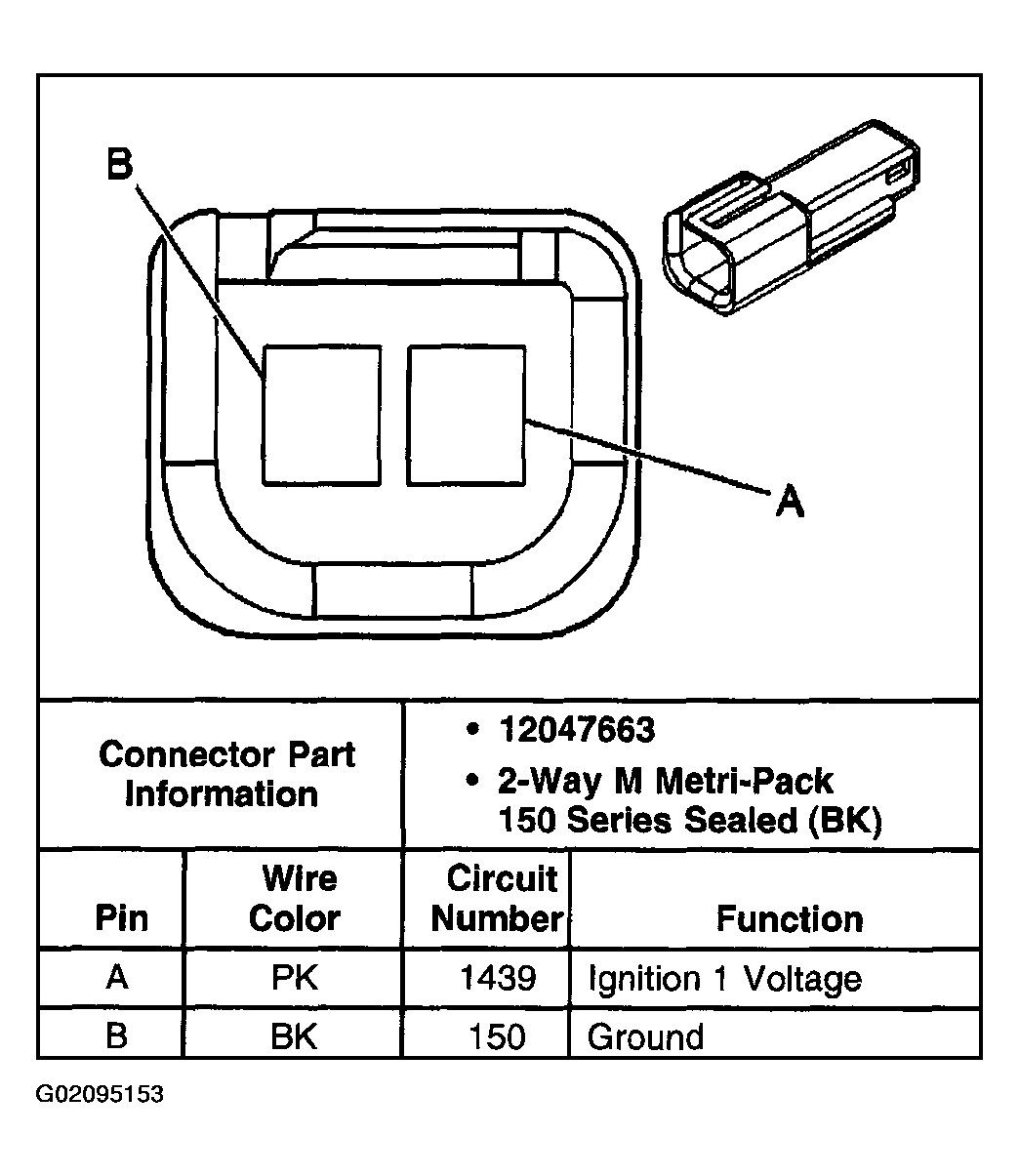

Fig 3: Heated Washer Nozzle Connector End View - Right
G02095153Courtesy of GENERAL MOTORS CORP.

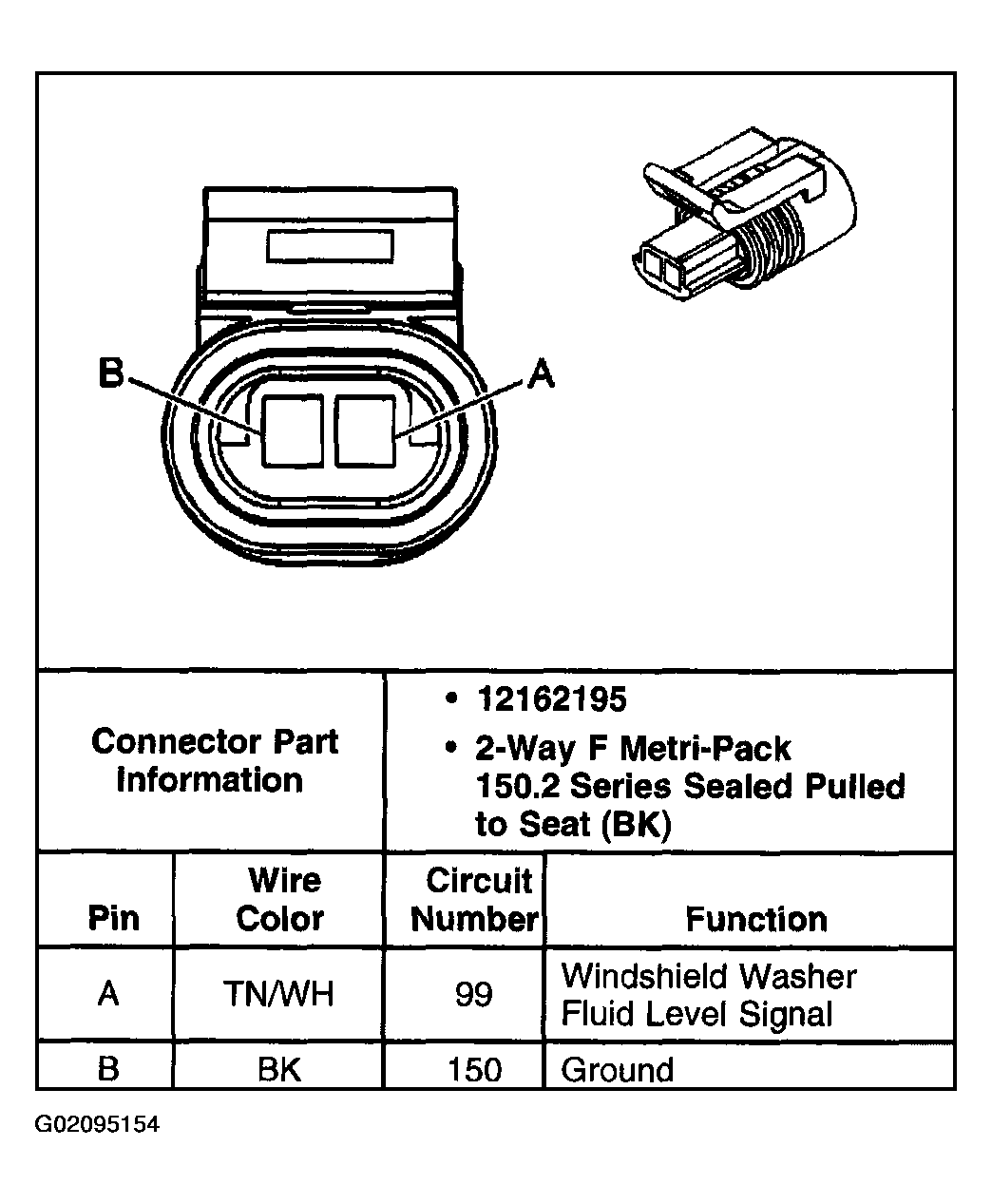

Fig 4: Windshield Washer Fluid Level Switch Connector End View
G02095154Courtesy of GENERAL MOTORS CORP.

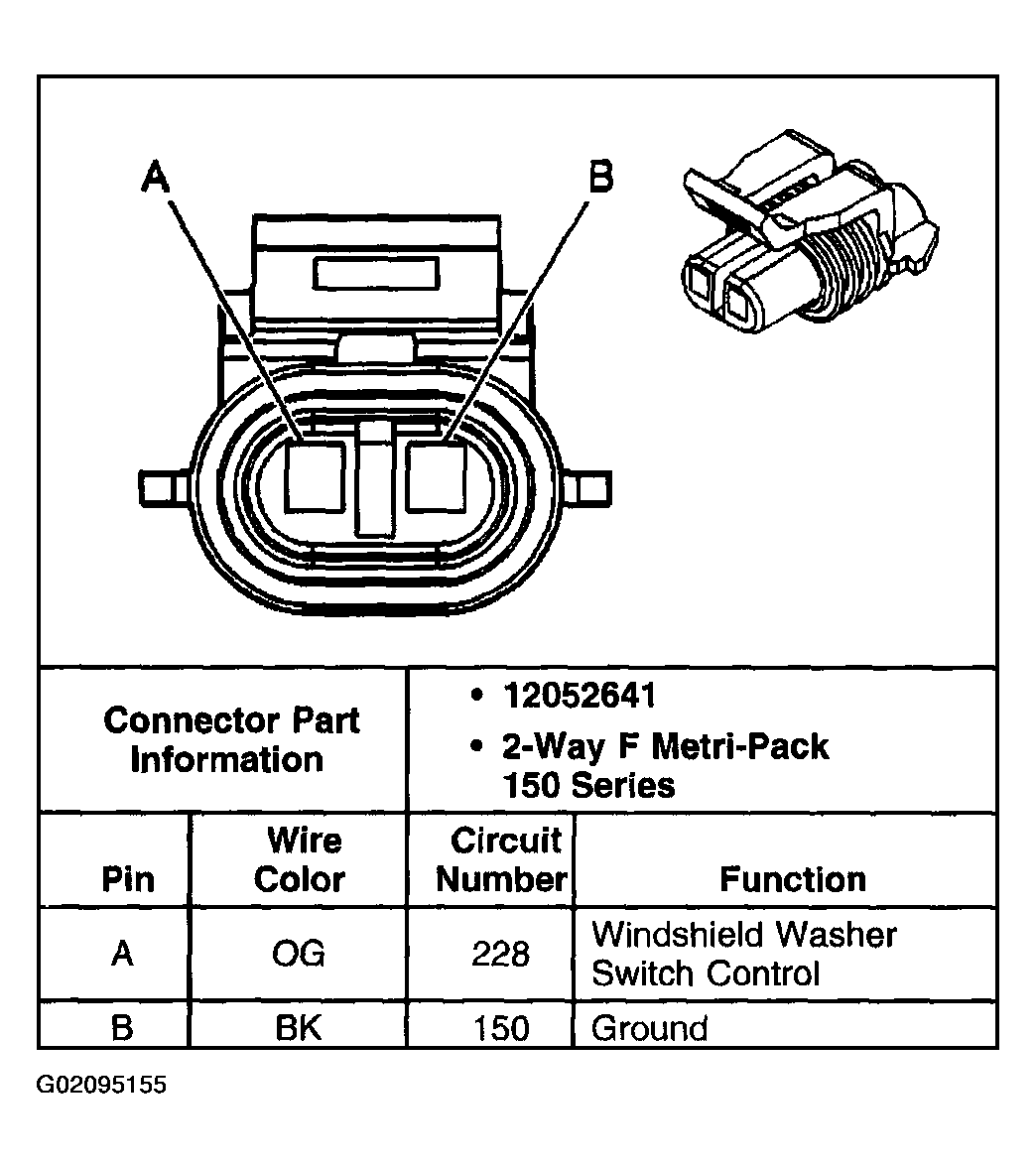

Fig 5: Windshield Washer Fluid Pump Connector End View
G02095155Courtesy of GENERAL MOTORS CORP.
Fig 6: Windshield Wiper/Washer Module Connector End View
G02095156Courtesy of GENERAL MOTORS CORP.

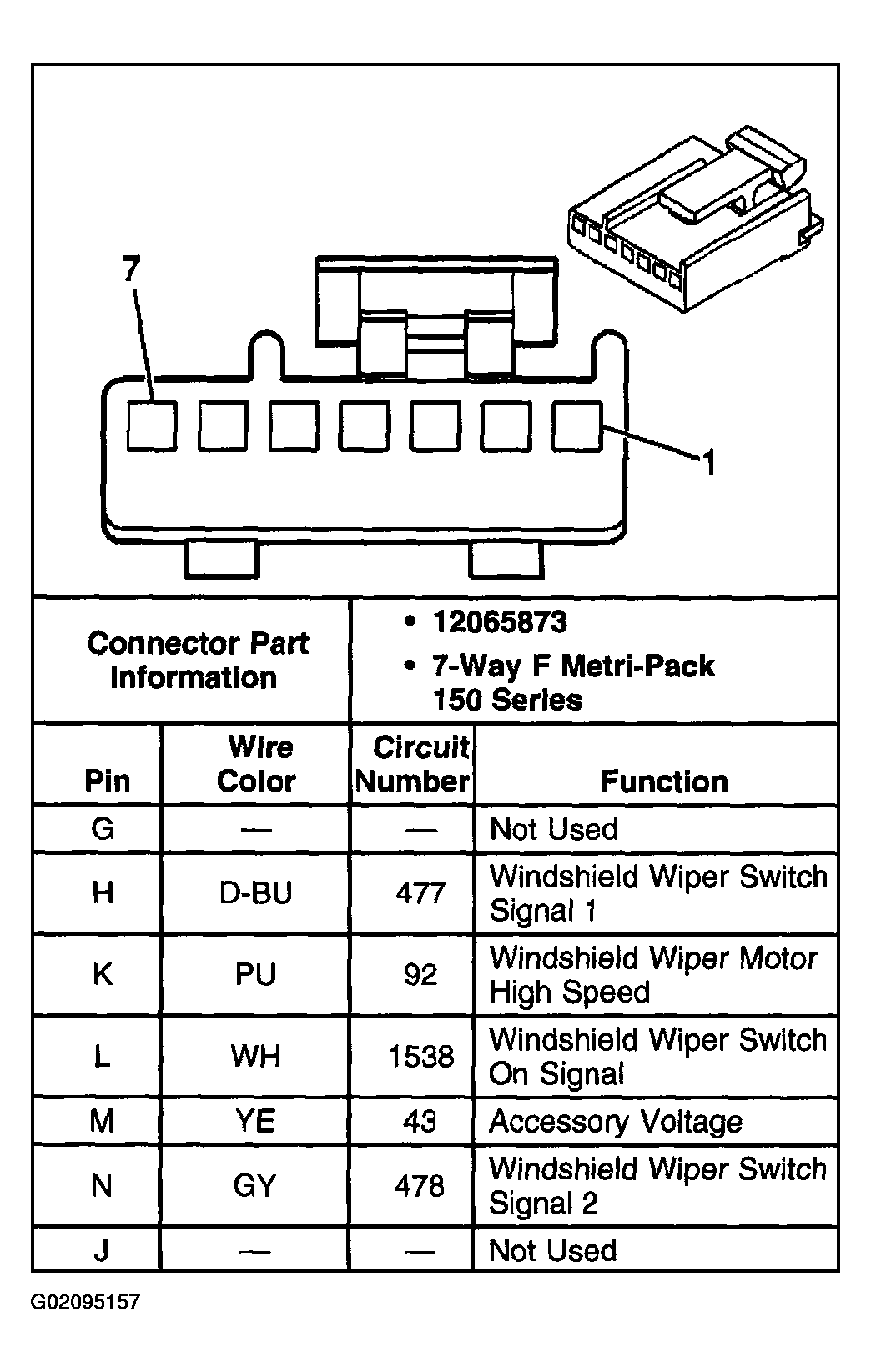

Fig 7: Windshield Wiper/Washer Switch Connector End View
G02095157Courtesy of GENERAL MOTORS CORP.
