Power Door Systems Component Views

Fig 1: Locating Power Door Sub-System Components (1 Of 2)
G02097481Courtesy of GENERAL MOTORS CORP.

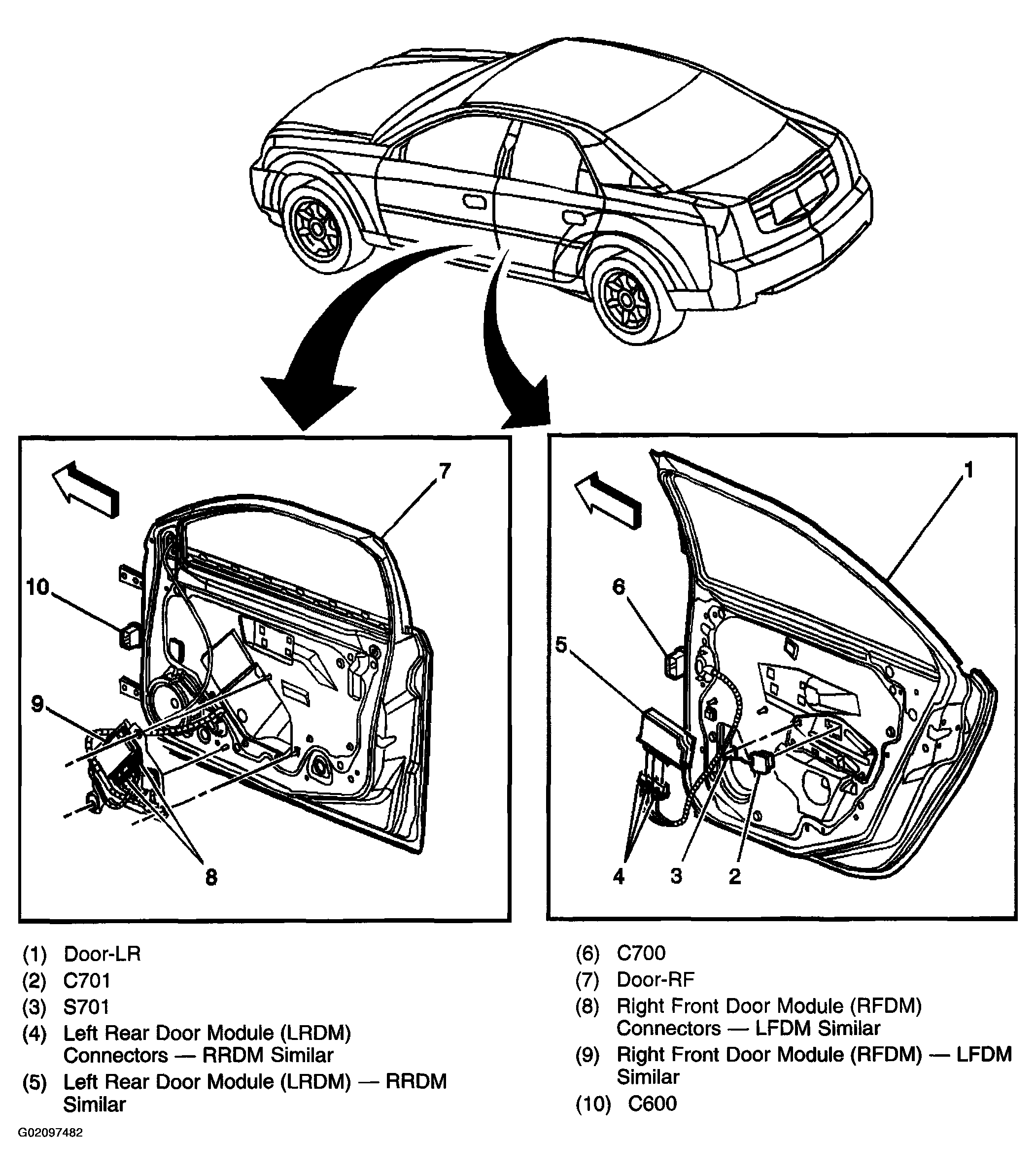

Fig 2: Locating Power Door Sub-System Components (2 Of 2)
G02097482Courtesy of GENERAL MOTORS CORP.
