HVAC Control Module Connector End View (2 Of 2)

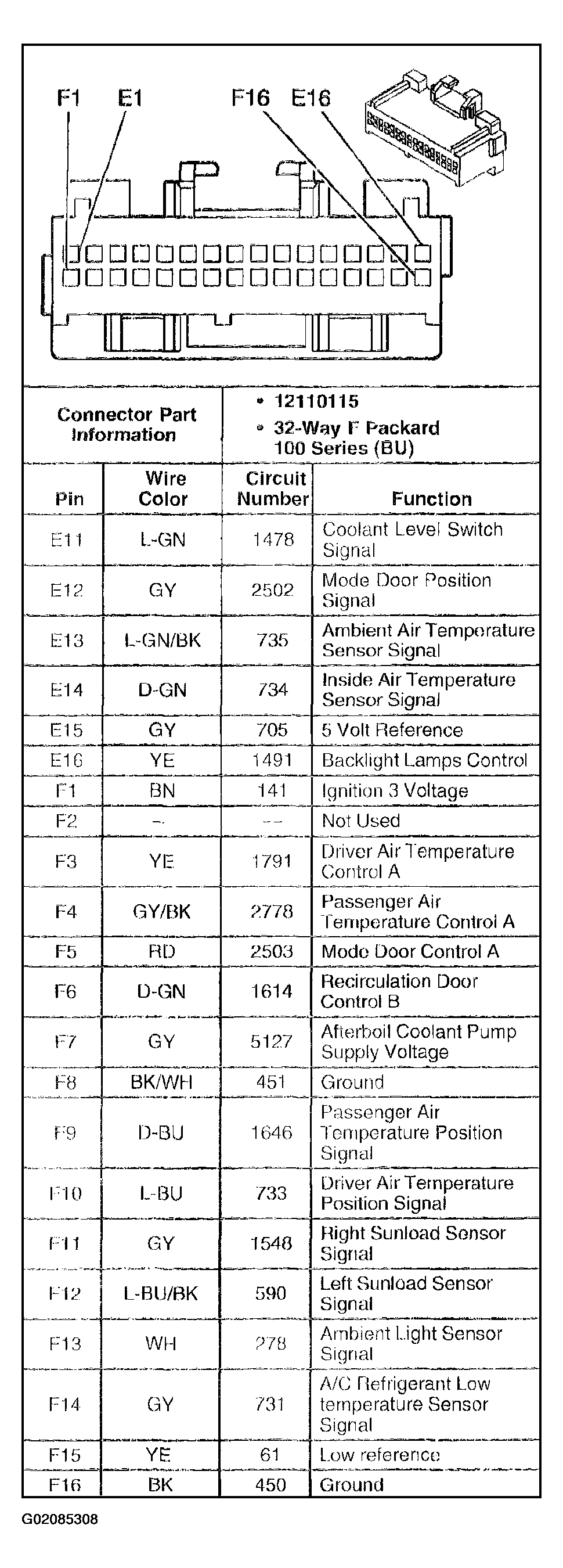

Fig 1: HVAC Control Module (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
