Torque Converter Assembly Installation.

  1. Install the turbine shaft seal (430).

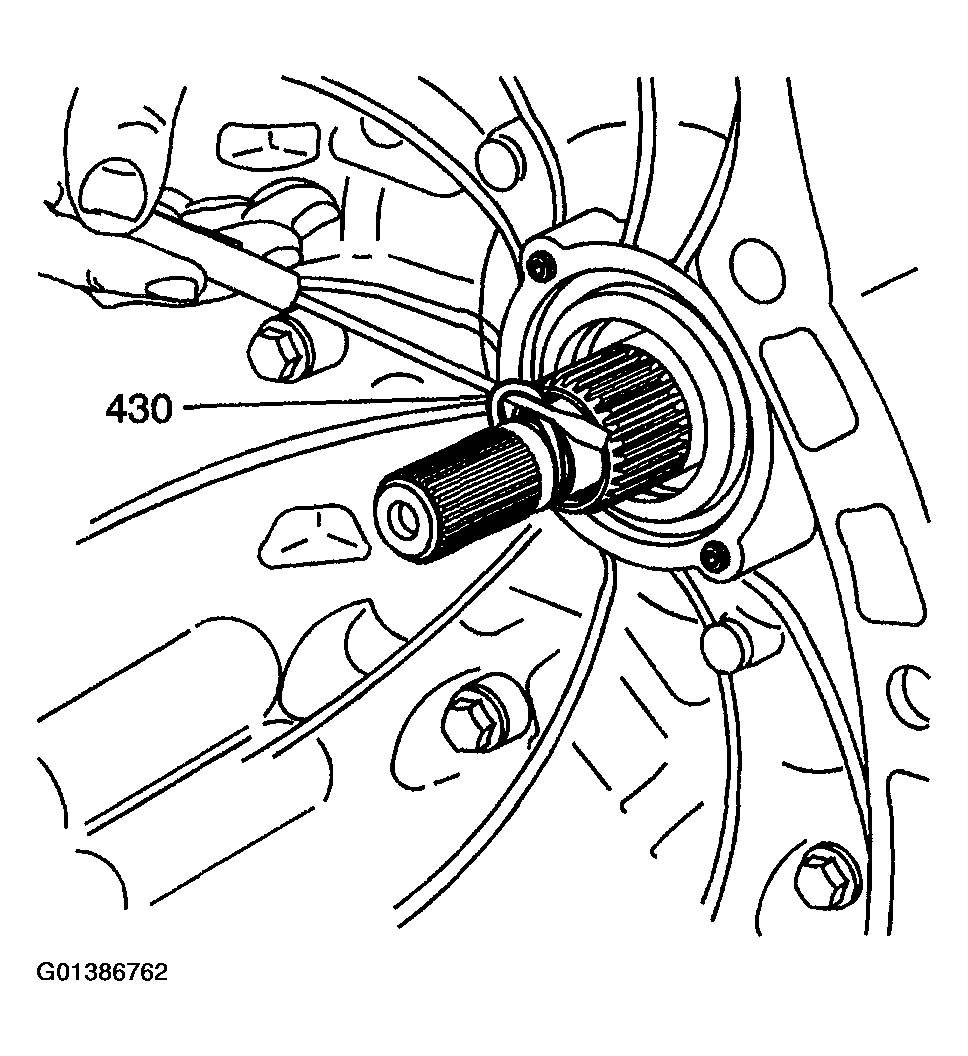

    Fig 1: Installing Turbine Shaft Seal
    G01386762Courtesy of GENERAL MOTORS CORP.
  2. Install the torque converter assembly (1).

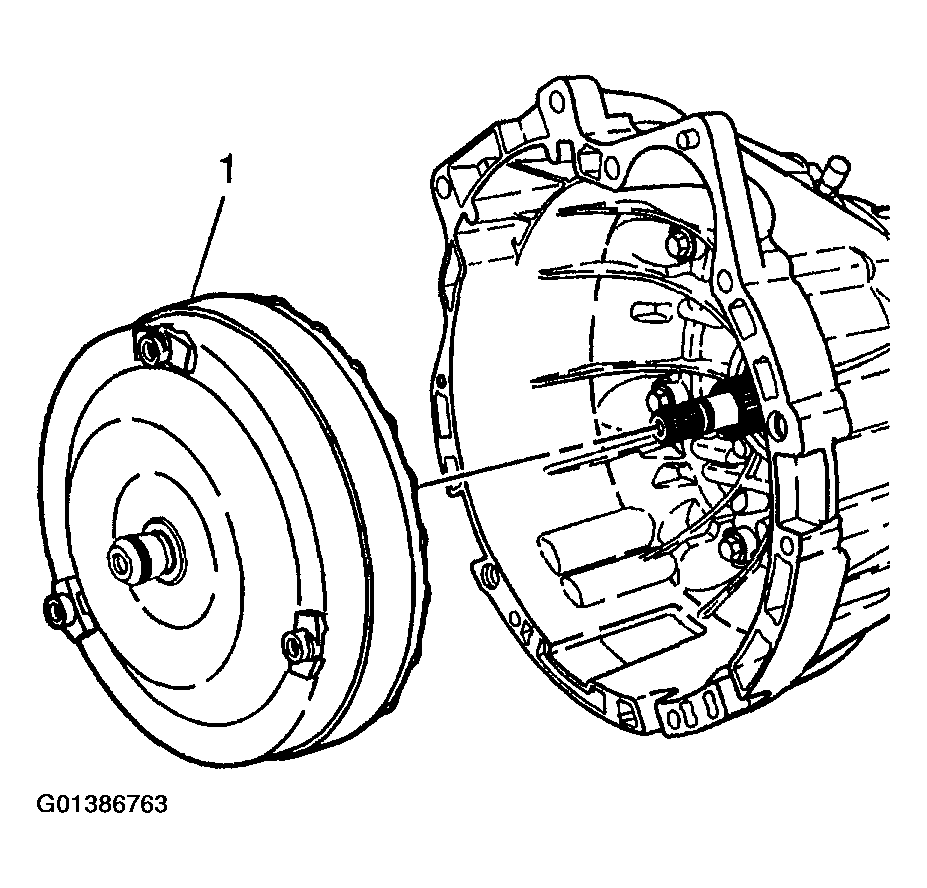

    Fig 2: Installing Torque Converter Assembly
    G01386763Courtesy of GENERAL MOTORS CORP.
