Diagnostic Procedures

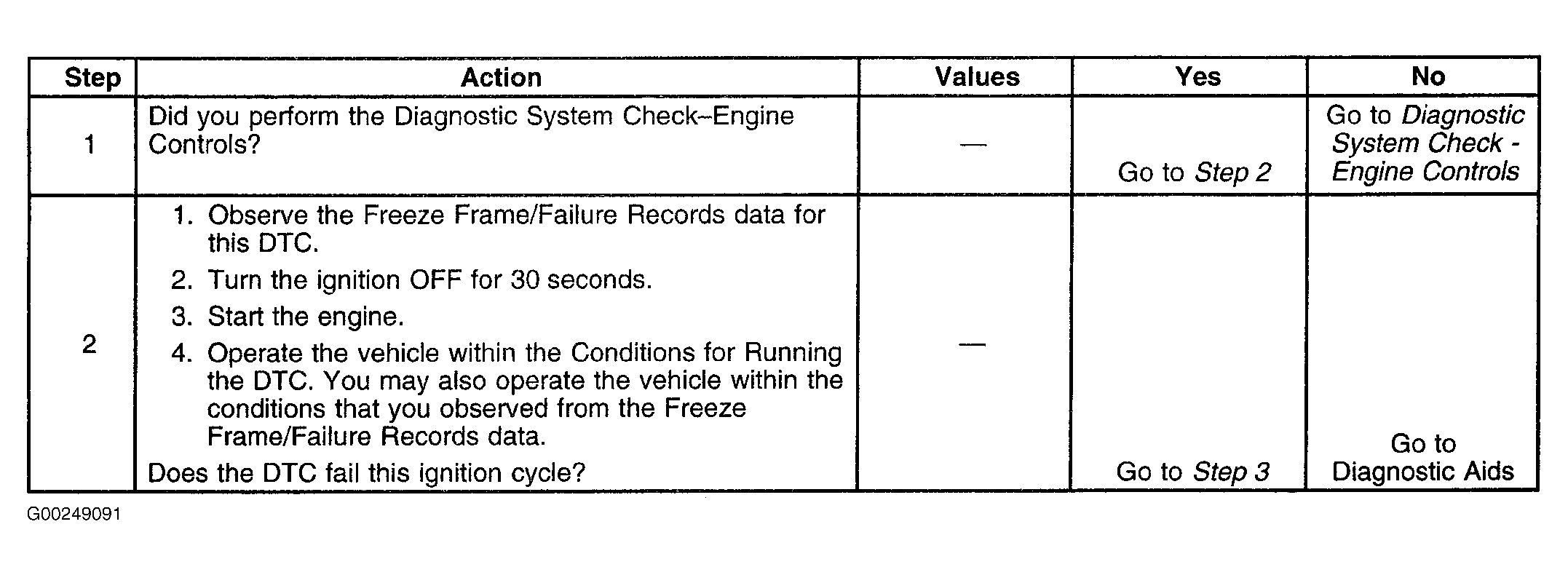

Fig 1: DTC P0327: Knock Sensor Circuit Low Input - Bank 1 & DTC P0332: Knock Sensor Circuit Low Input - Bank 2 (Steps 1 & 2)
G00249091Courtesy of GENERAL MOTORS CORP.

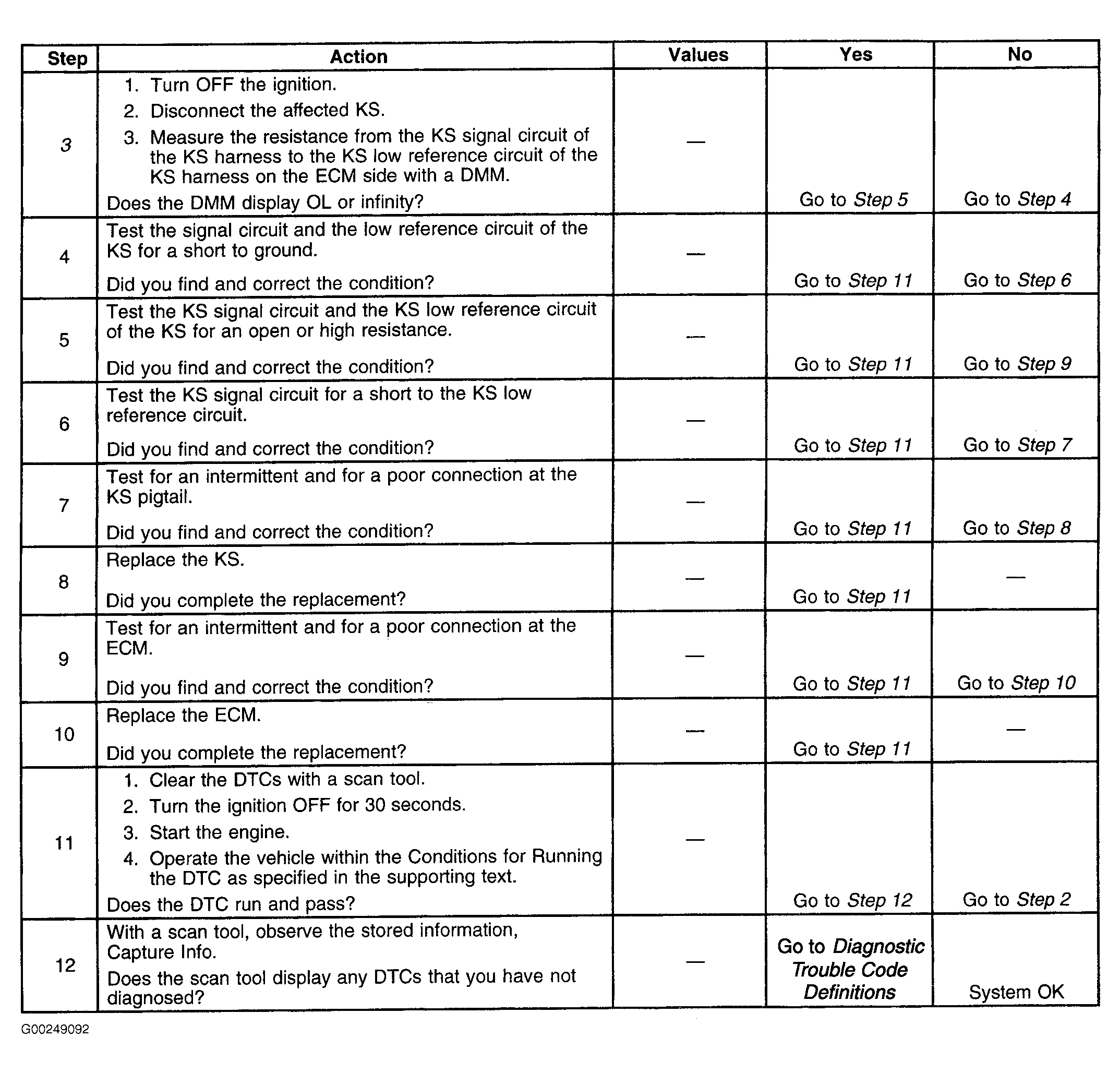

Fig 2: DTC P0327: Knock Sensor Circuit Low Input - Bank 1 & DTC P0332: Knock Sensor Circuit Low Input - Bank 2 (Steps 3-12)
G00249092Courtesy of GENERAL MOTORS CORP.
