DTC P2105: Throttle Control System - Out Of Controllable Limit
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

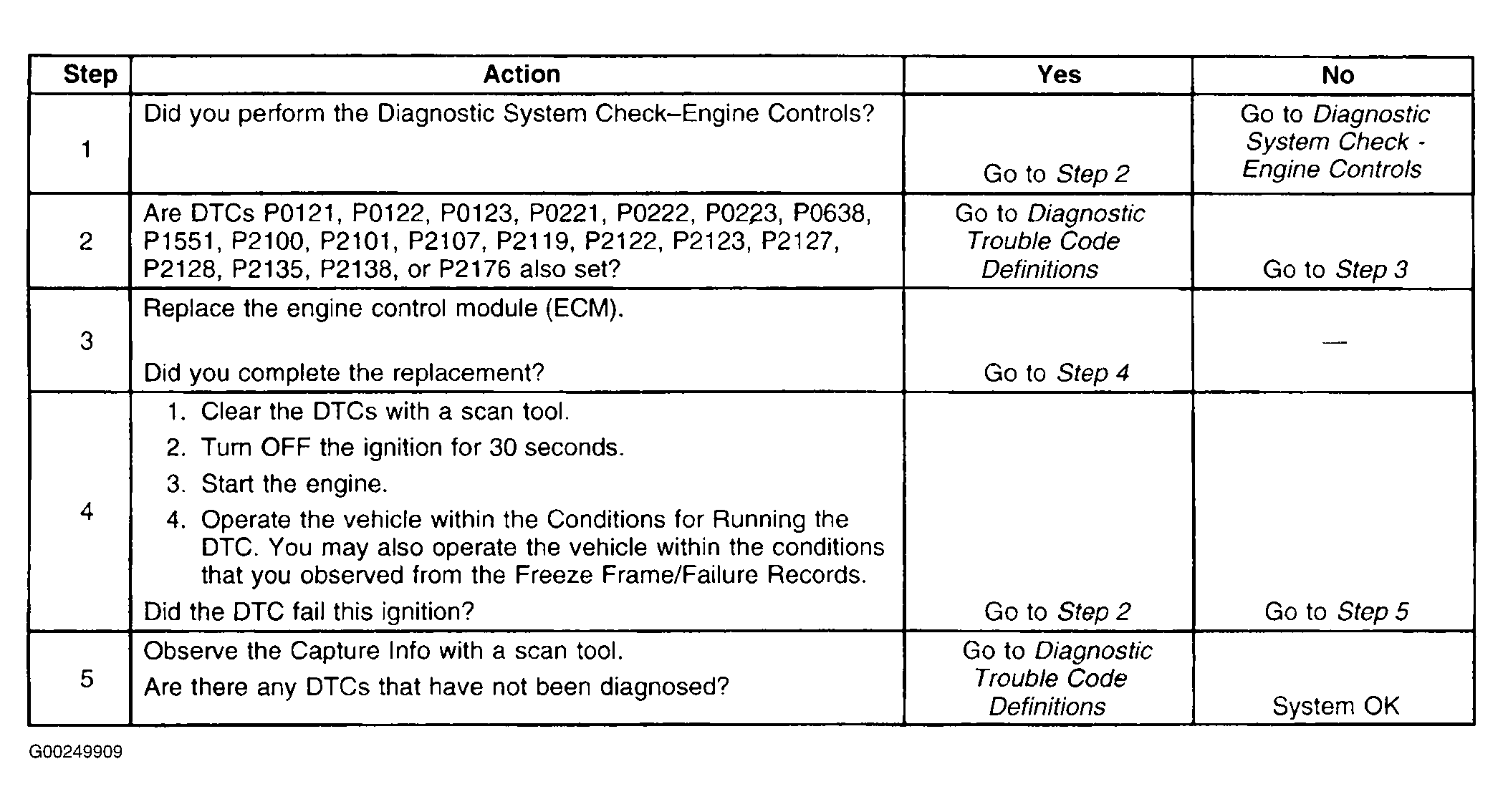

Fig 1: DTC P2105: Throttle Control System - Out Of Controllable Limit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
