Wiper/Washer System Component Views

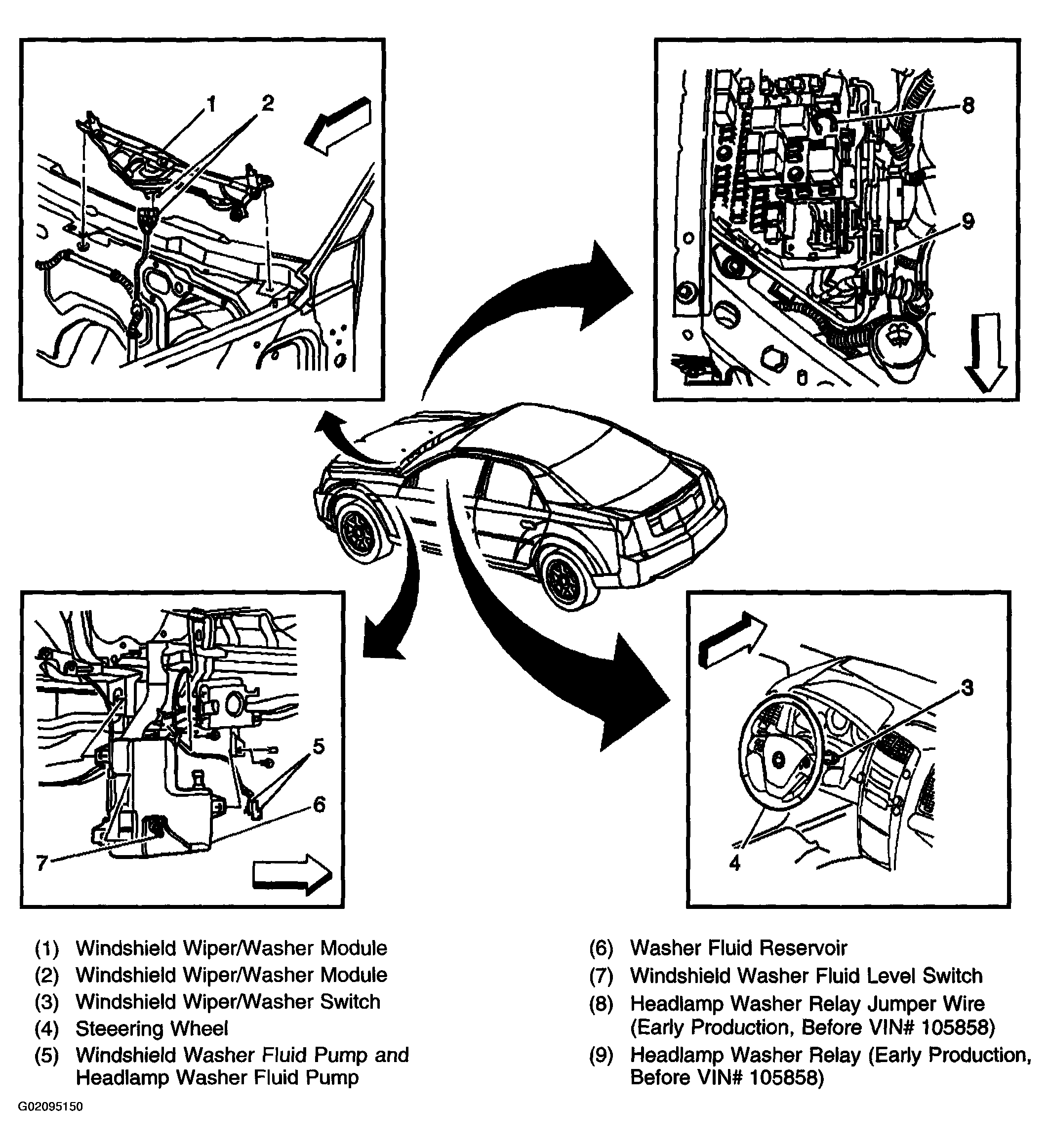

Fig 1: Component Location - Wiper/Washer System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
