Vehicle Communication Interface Module Connector End View C1

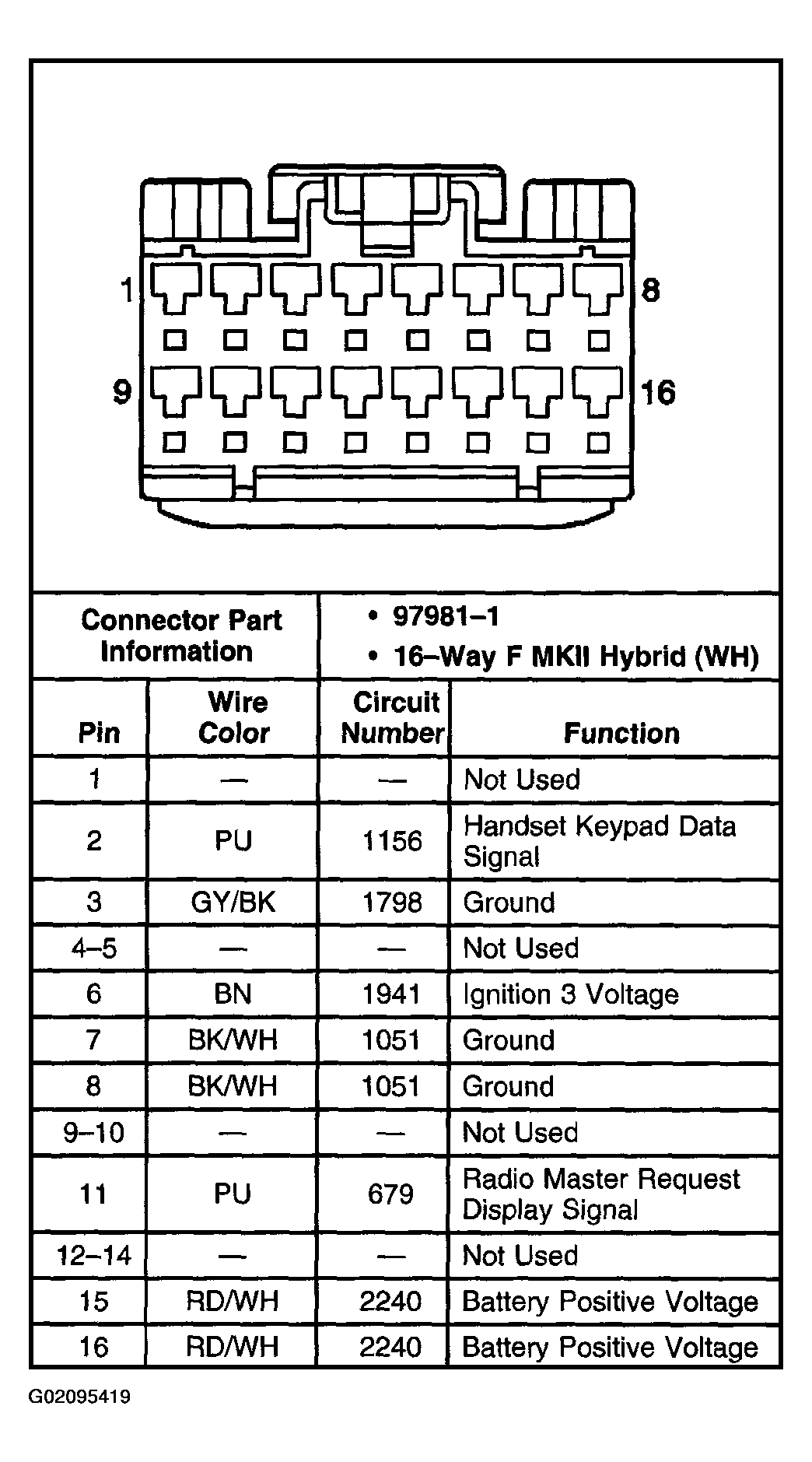

Fig 1: Vehicle Communication Interface Module C1
G02095419Courtesy of GENERAL MOTORS CORP.
