LH Seat Front Horizontal Position Sensor Connector End View

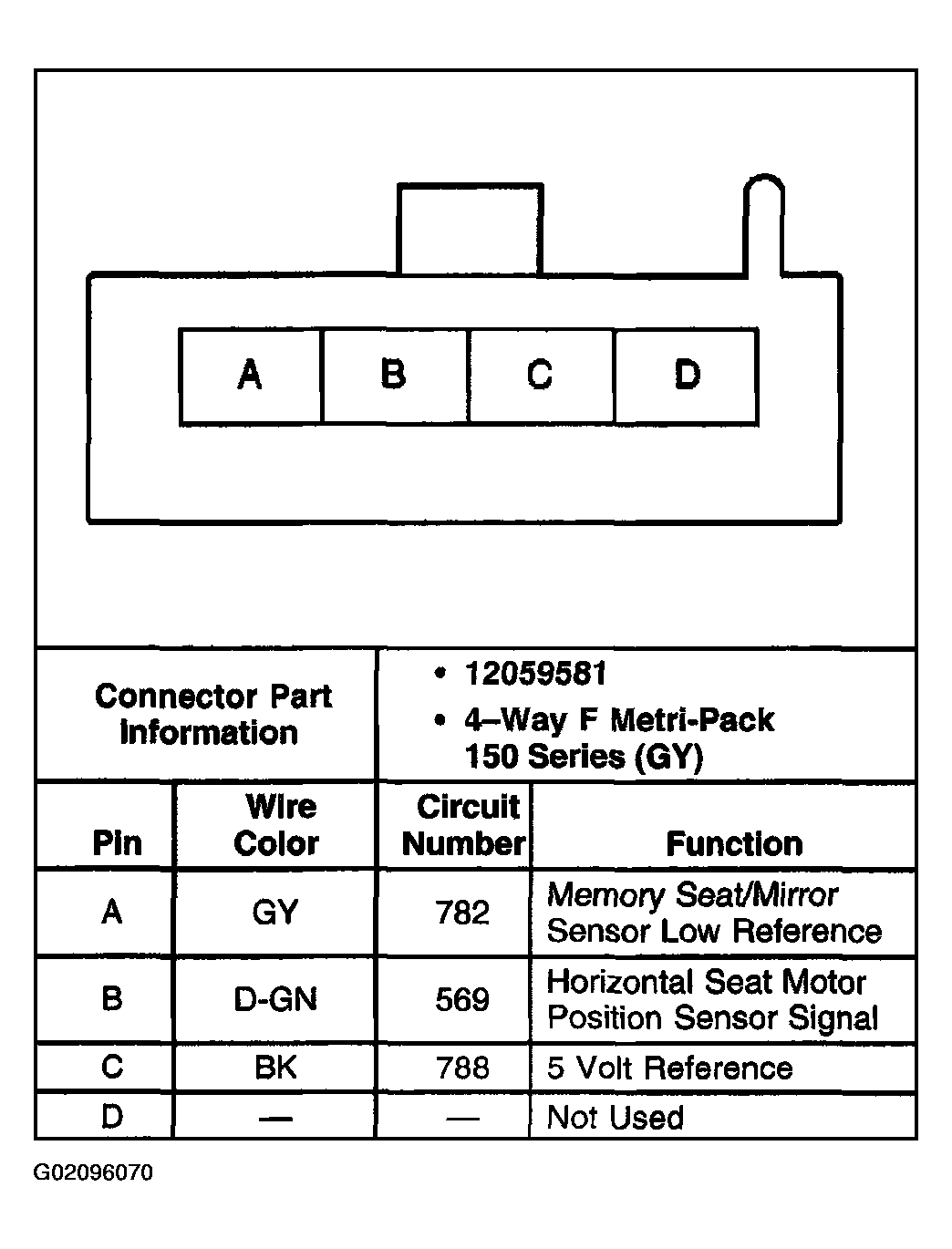

Fig 1: LH Seat Front Horizontal Position Sensor
G02096070Courtesy of GENERAL MOTORS CORP.
