Memory Seat Module (MSM) Connector End View - C2

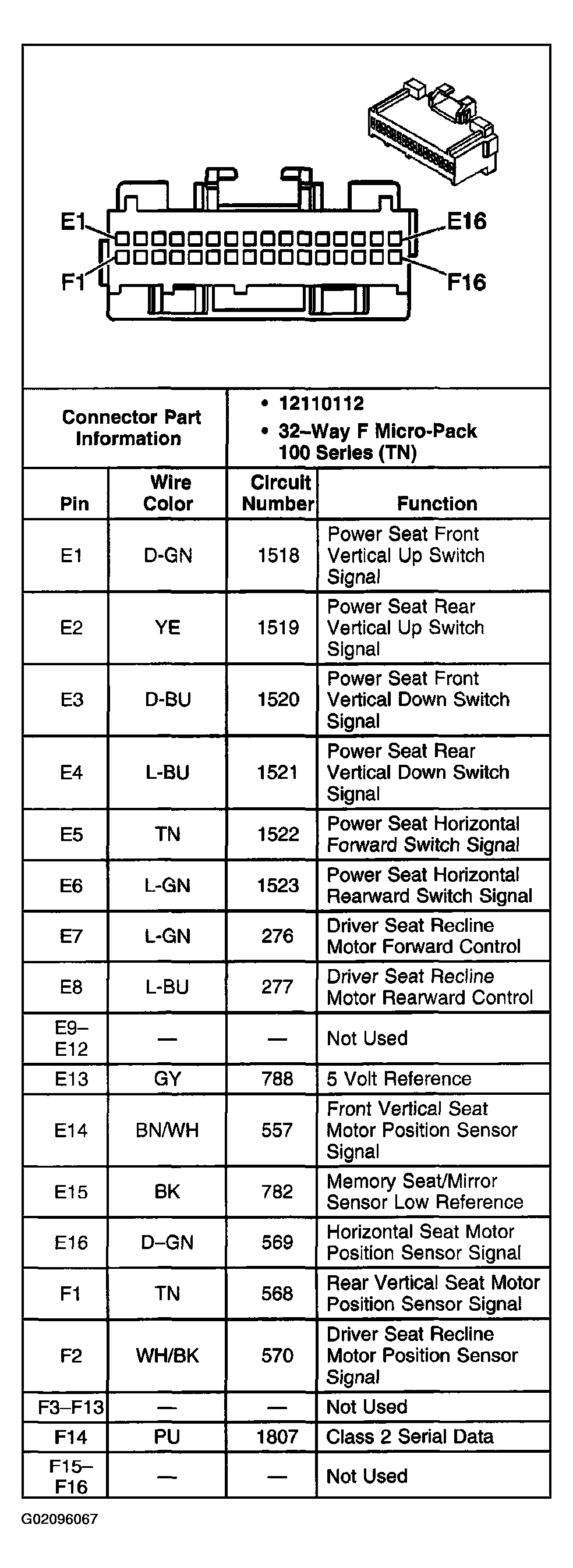

Fig 1: Memory Seat Module (MSM) - C2
G02096067Courtesy of GENERAL MOTORS CORP.
