Vehicle Communication Interface Module Connector End View C2

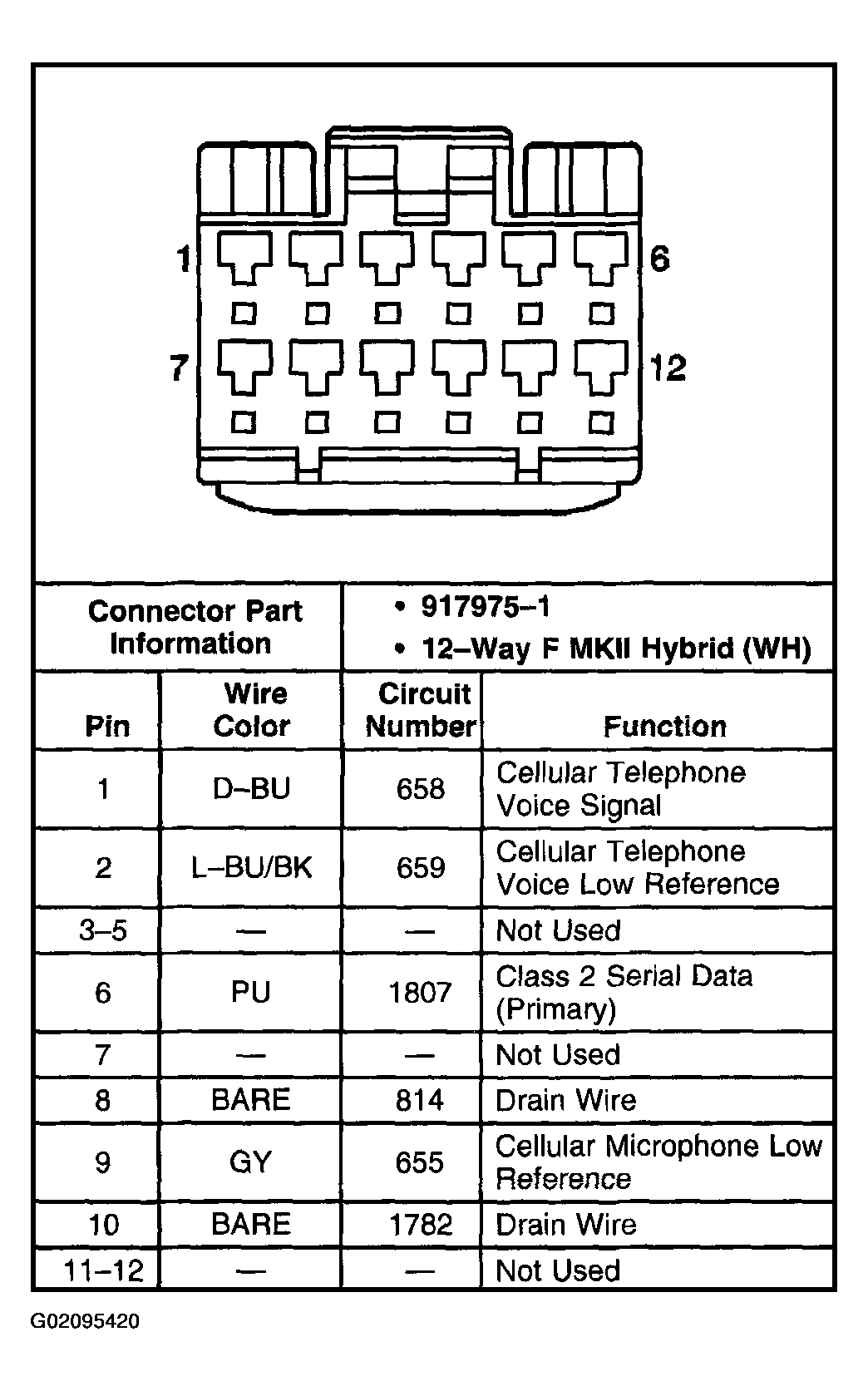

Fig 1: Vehicle Communication Interface Module C2
G02095420Courtesy of GENERAL MOTORS CORP.
