Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the screws securing the data link connector to the I/P carrier.
Tighten

Tighten the screws to 2 N.m (18 lb in).

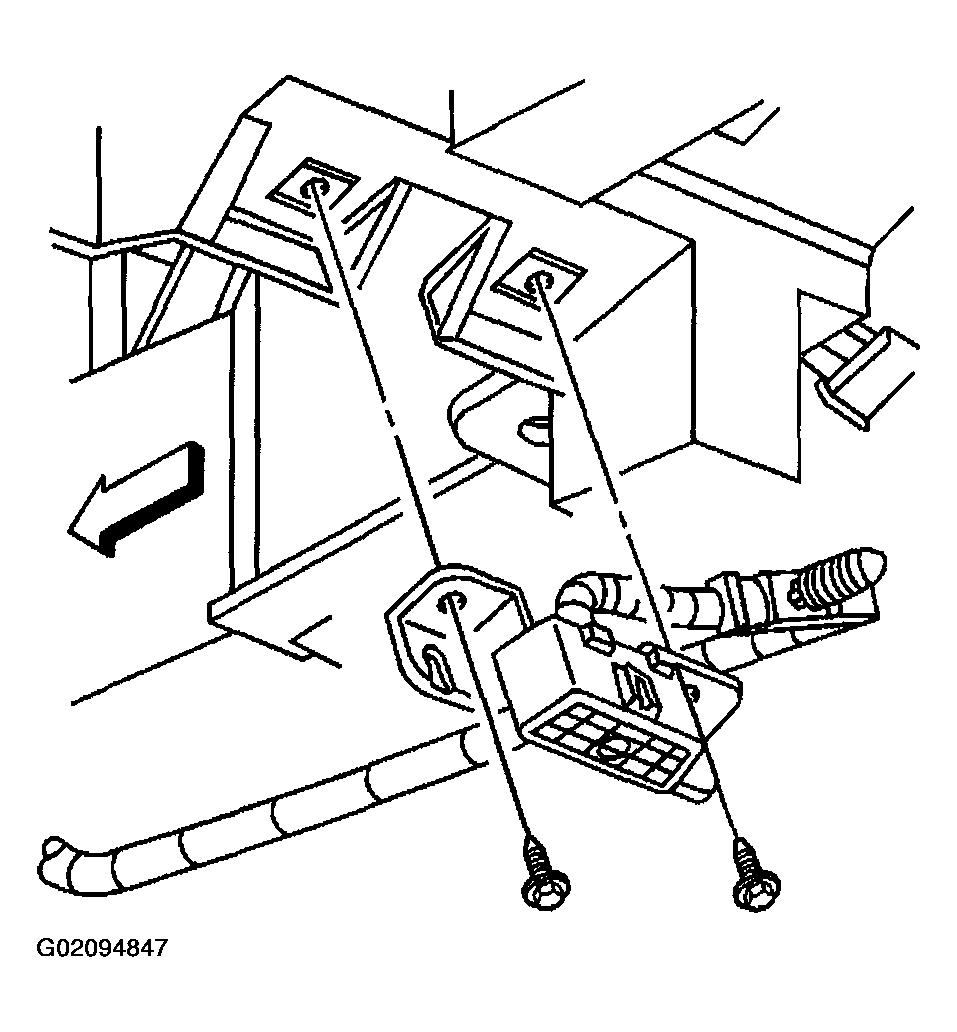

Fig 1: Installing Screws Securing Data Link Connector To I/P Carrier
Courtesy of GENERAL MOTORS CORP.
Install the I/P closeout panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE .
