Removal Procedure

  1. Lower the I/P closeout panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Remove the screws securing the data link connector to the I/P carrier.

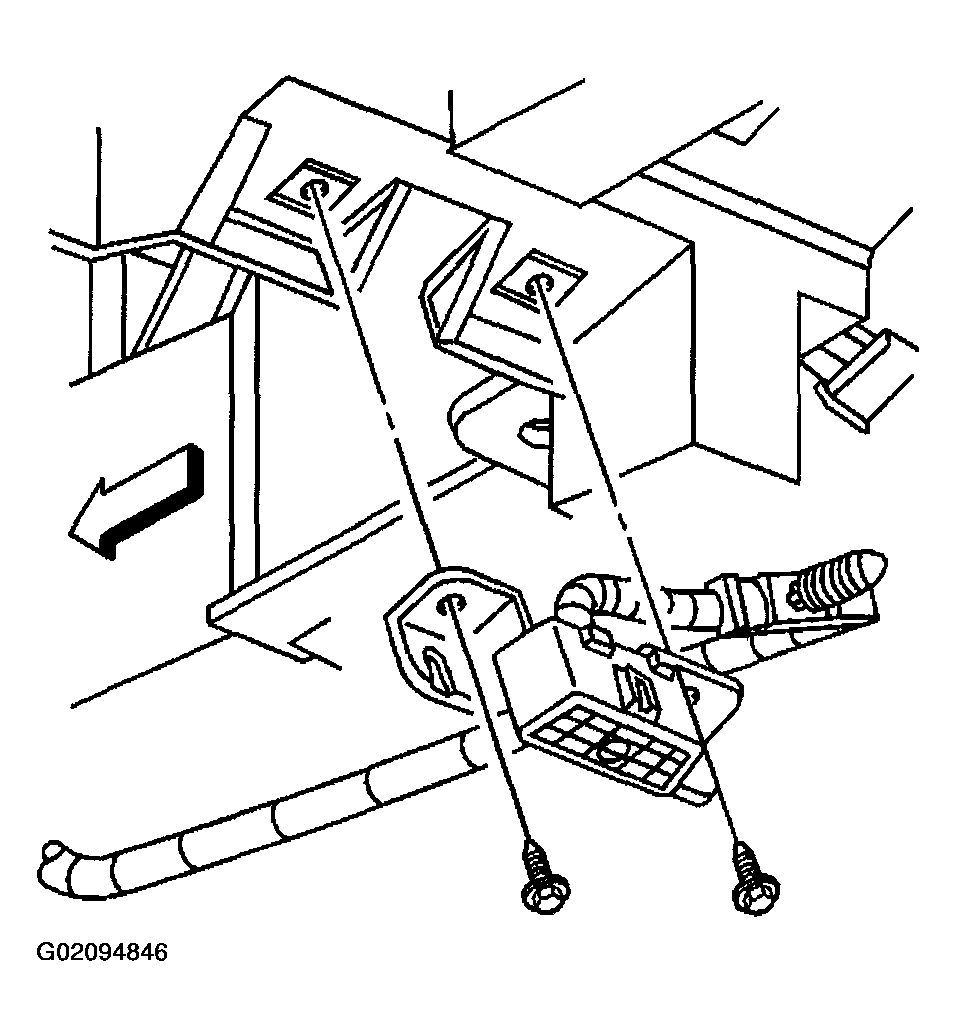

    Fig 1: Removing Screws Securing Data Link Connector To I/P Carrier
    G02094846Courtesy of GENERAL MOTORS CORP.
