Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the heated seat control module and install the retaining screws (2).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  2. Connect the electrical connector.
  3. Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .

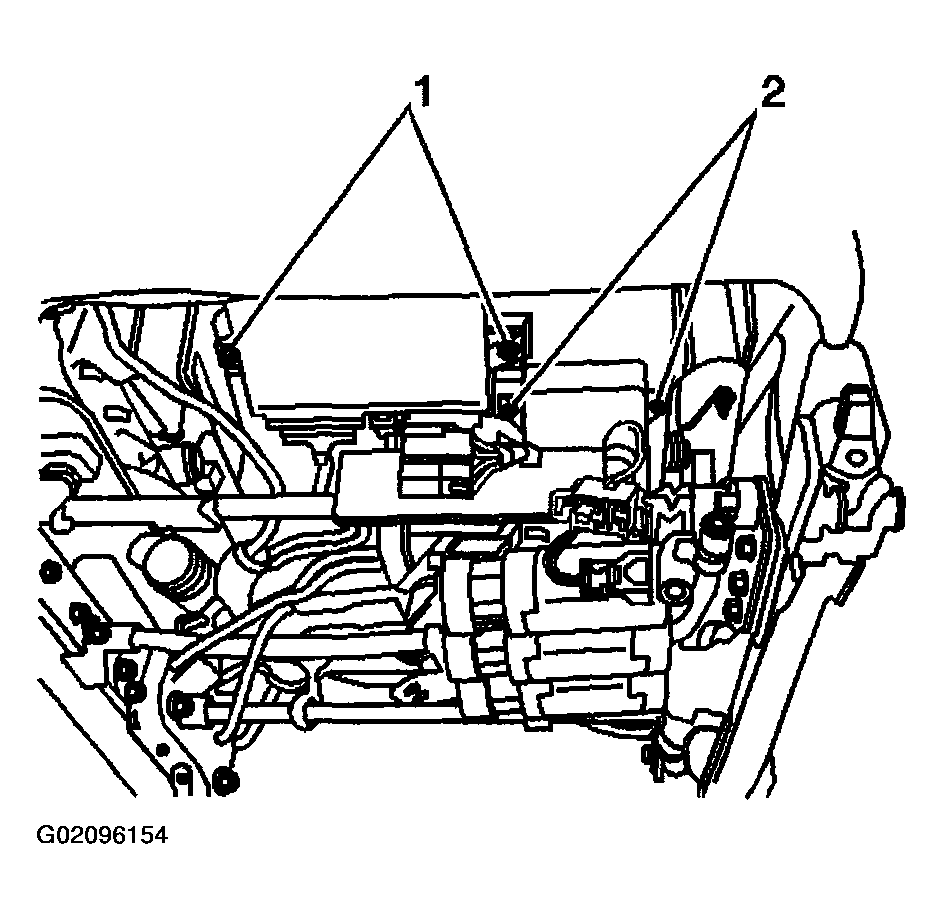

    Fig 1: Installing Heated Seat Control Module And Retaining Screws
    G02096154Courtesy of GENERAL MOTORS CORP.
