Power Door Systems Connector End Views

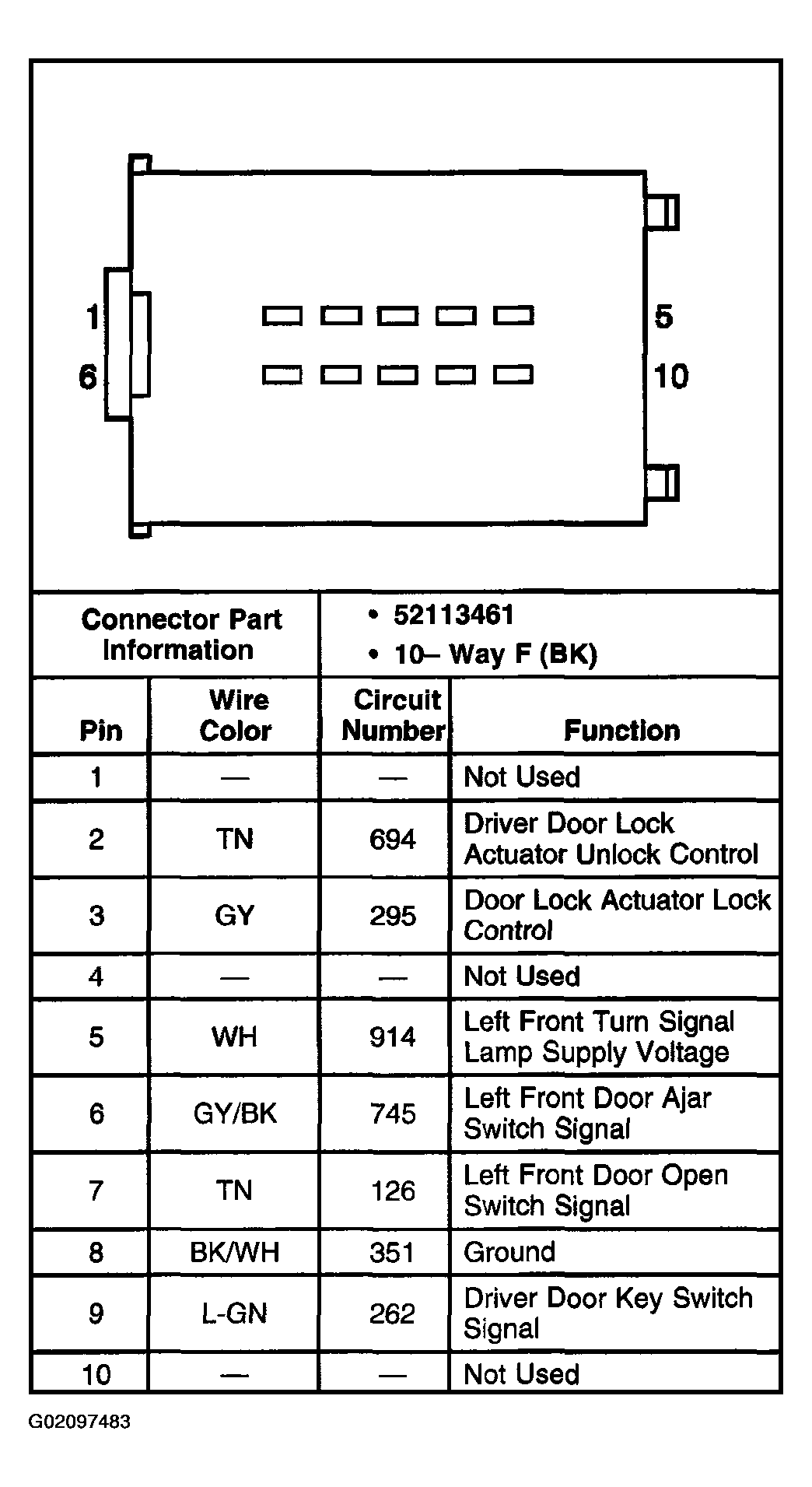

Fig 1: Door Latch Assembly Connector End View - Driver Connector Terminal
G02097483Courtesy of GENERAL MOTORS CORP.

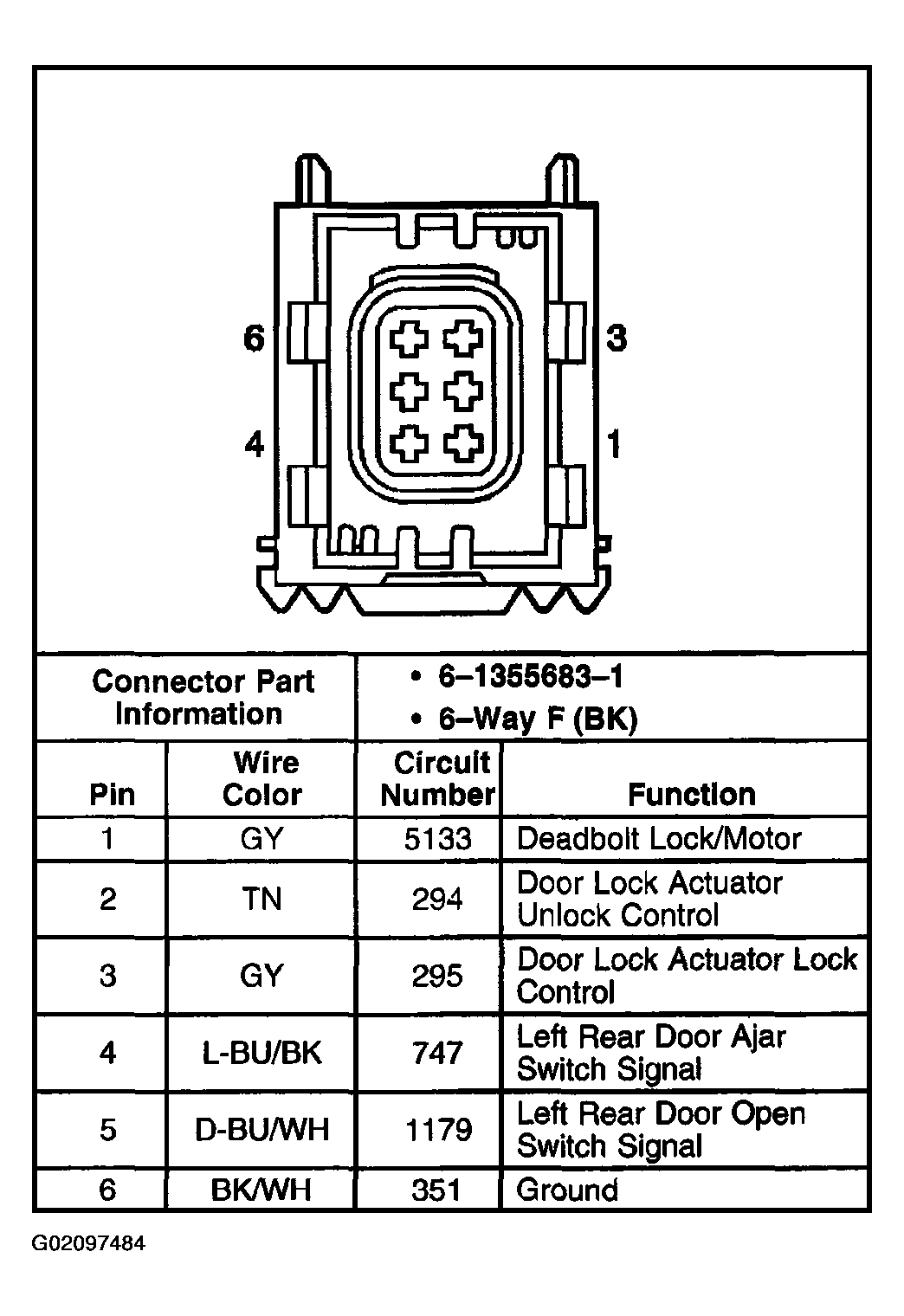

Fig 2: Door Latch Assembly Connector End View - LR Connector Terminal
G02097484Courtesy of GENERAL MOTORS CORP.

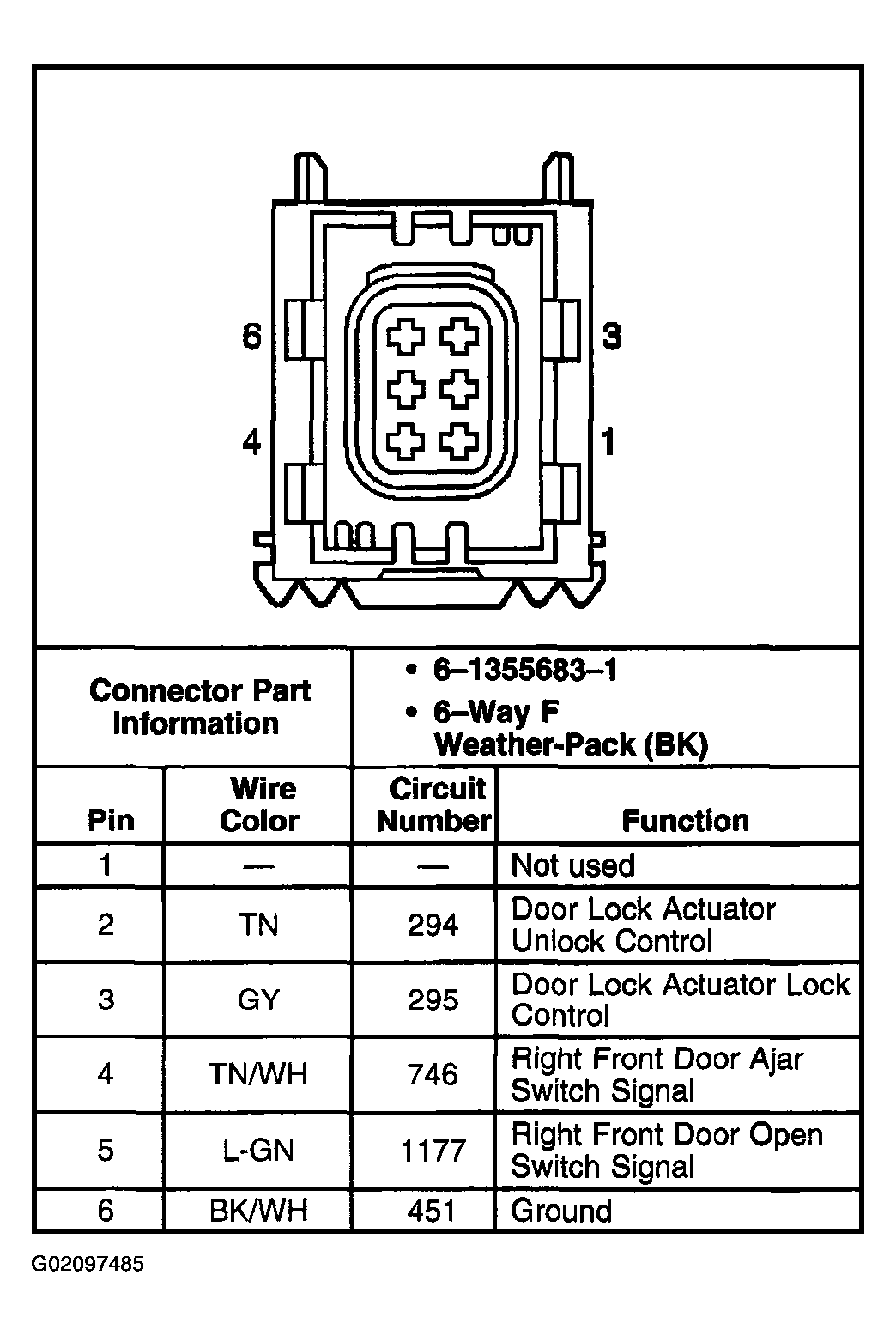

Fig 3: Door Latch Assembly Connector End View - Passenger Connector Terminal
G02097485Courtesy of GENERAL MOTORS CORP.

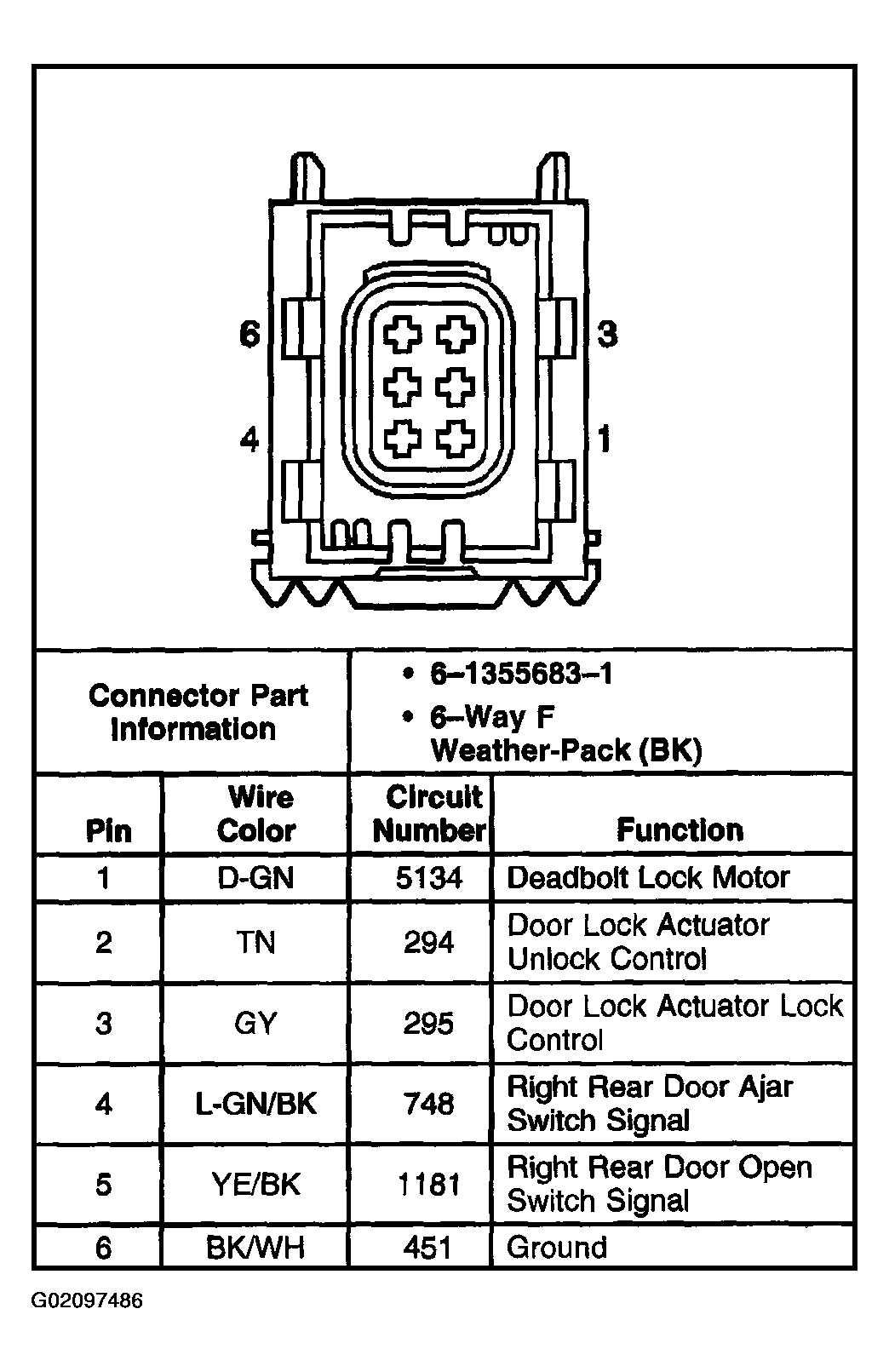

Fig 4: Door Latch Assembly Connector End View - RR Connector Terminal
G02097486Courtesy of GENERAL MOTORS CORP.

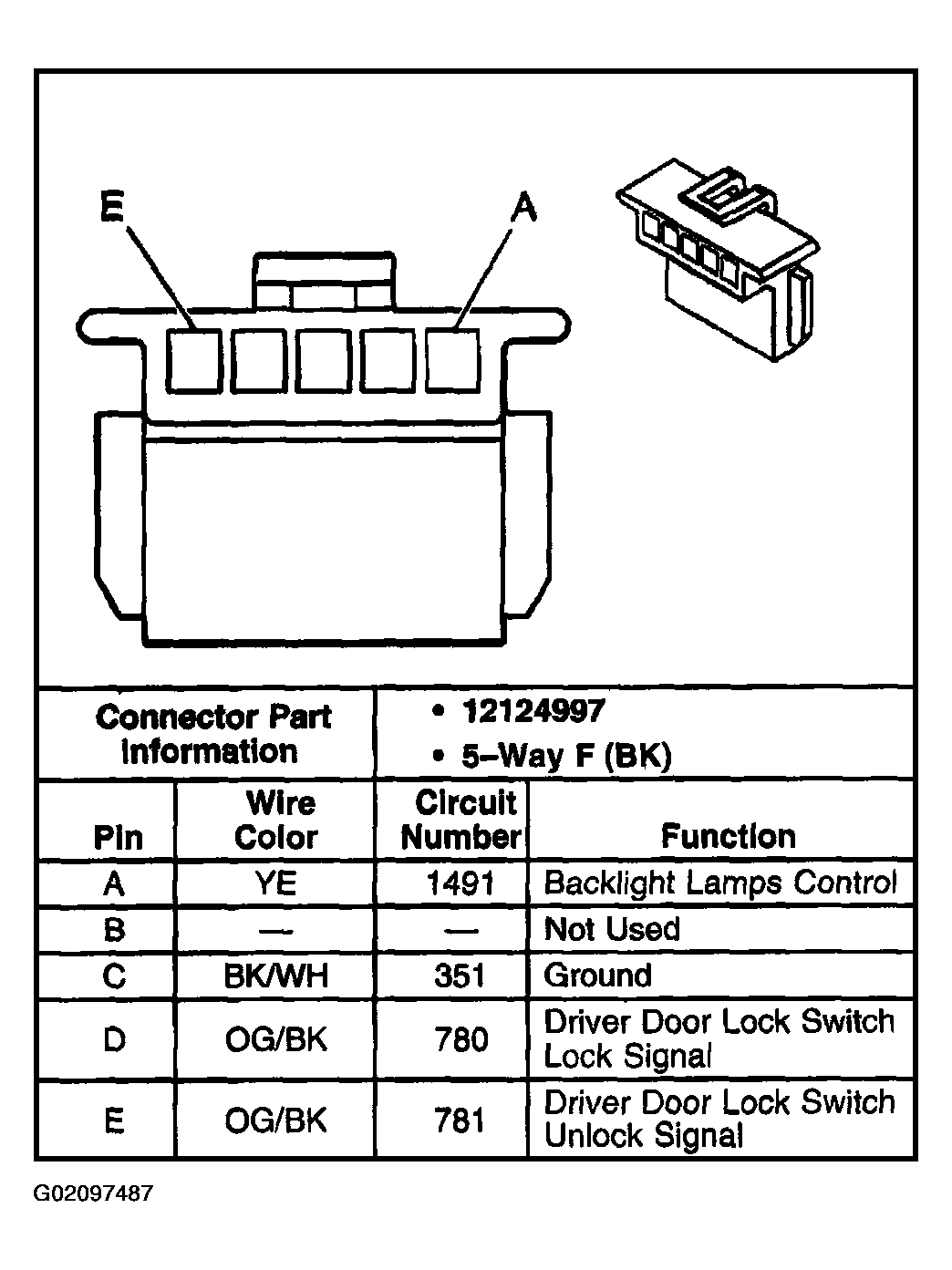

Fig 5: Door Lock Switch Connector End View - Driver Connector Terminal
G02097487Courtesy of GENERAL MOTORS CORP.

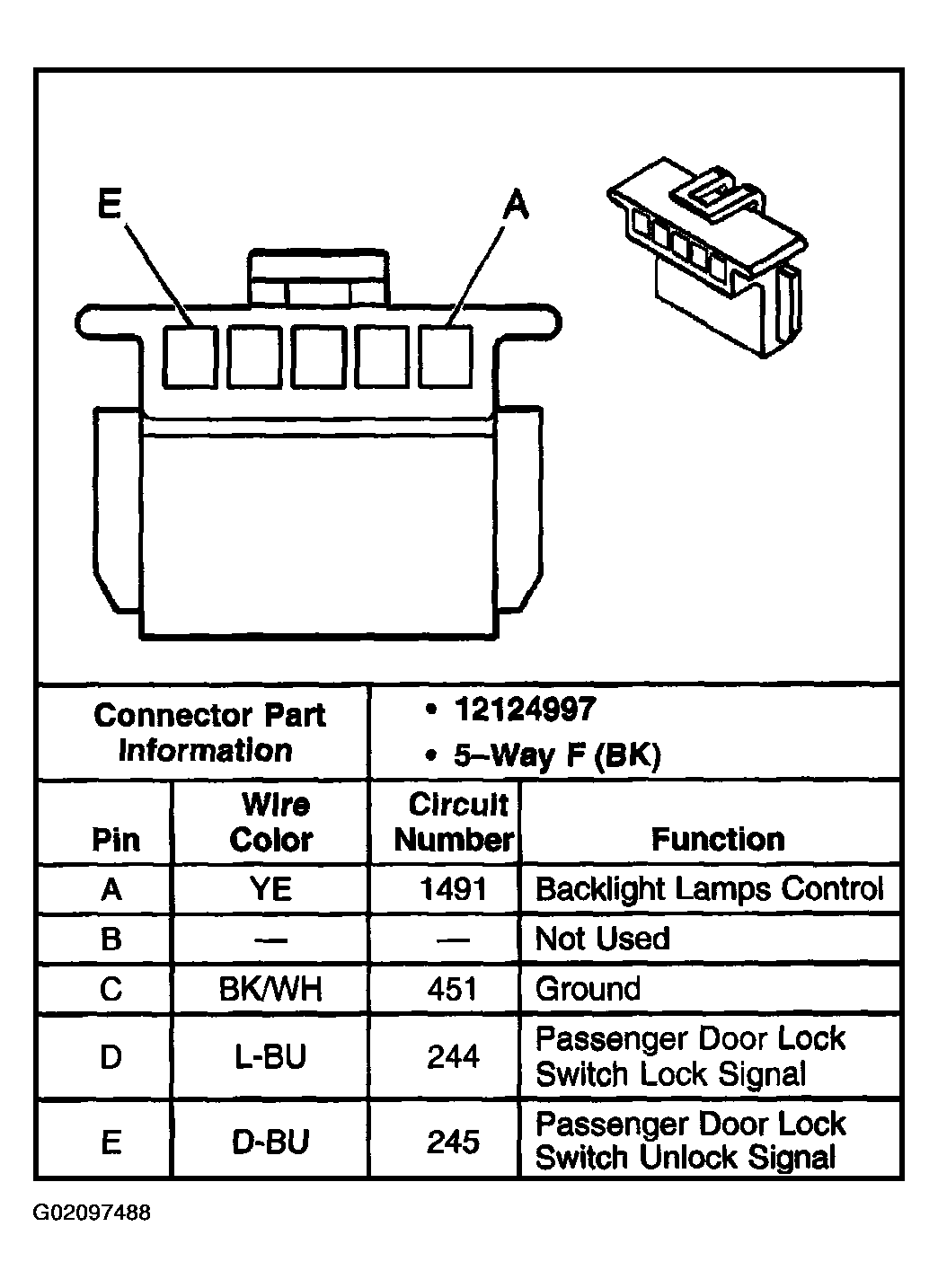

Fig 6: Door Lock Switch Connector End View - Passenger Connector Terminal
G02097488Courtesy of GENERAL MOTORS CORP.
Fig 7: Driver Door Module (DDM) Connector End View - C1 Connector Terminal
G02097489Courtesy of GENERAL MOTORS CORP.

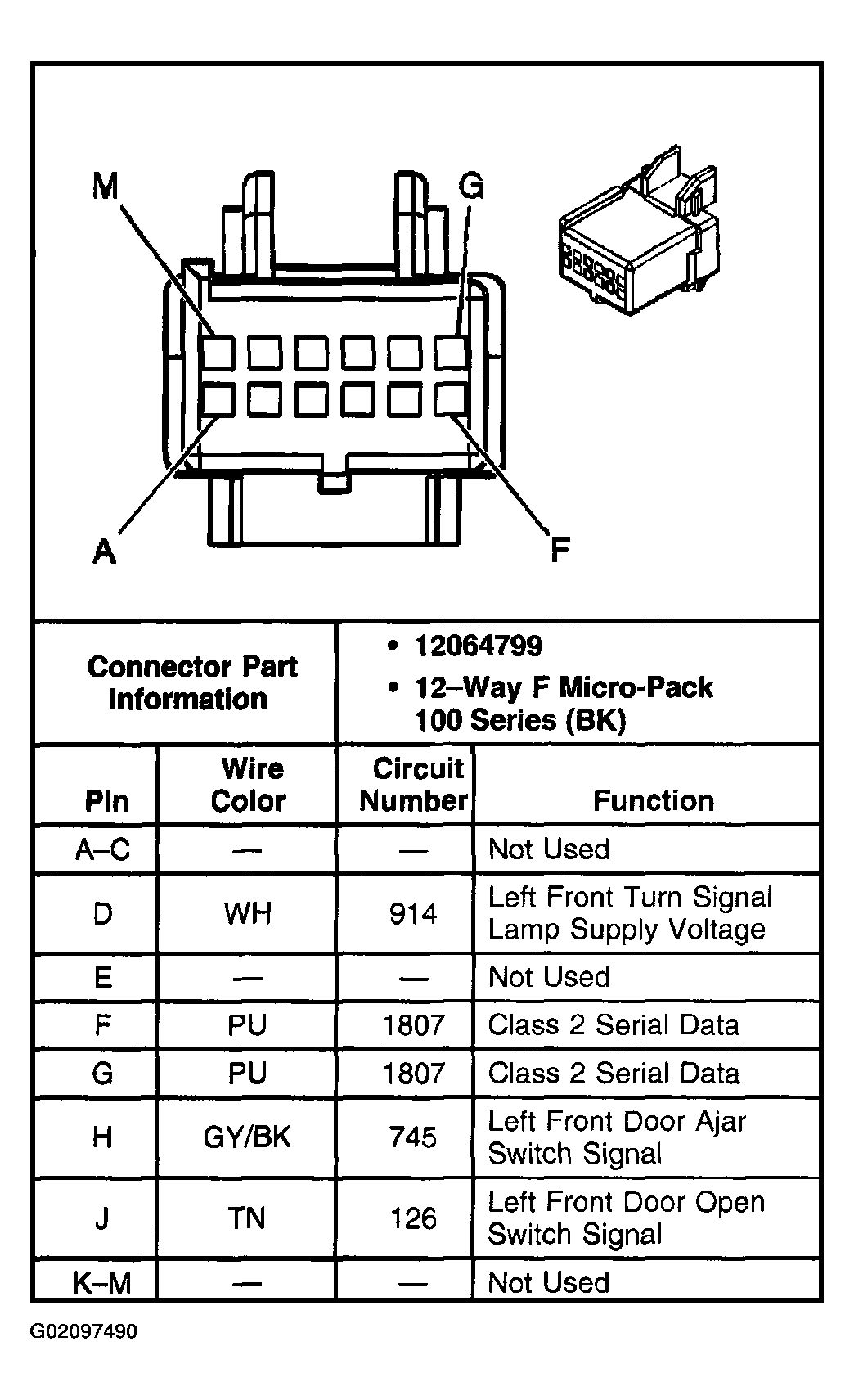

Fig 8: Driver Door Module (DDM) Connector End View - C2 Connector Terminal
G02097490Courtesy of GENERAL MOTORS CORP.

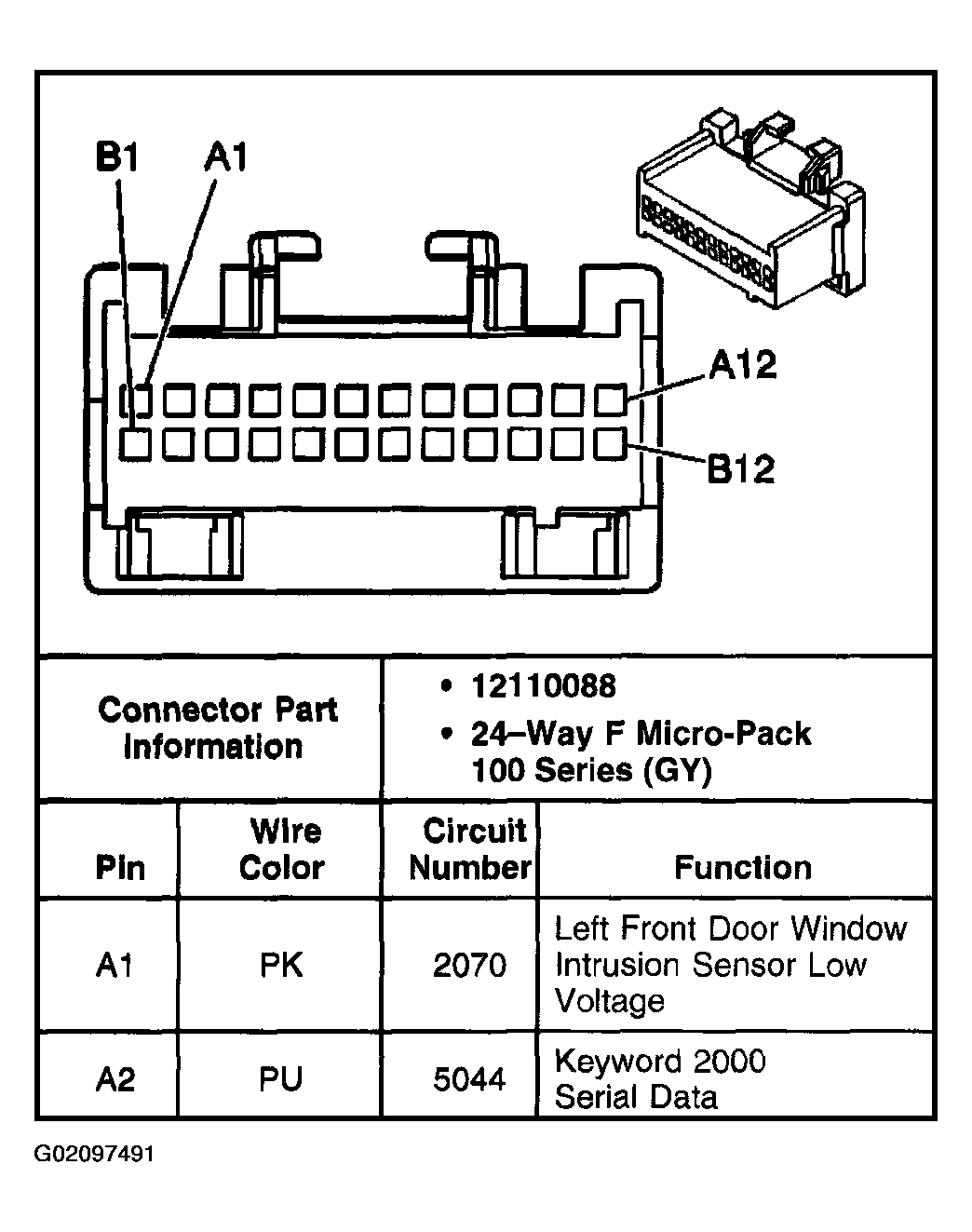

Fig 9: Driver Door Module (DDM) Connector End View - C3 Connector Terminal (1 Of 2)
G02097491Courtesy of GENERAL MOTORS CORP.

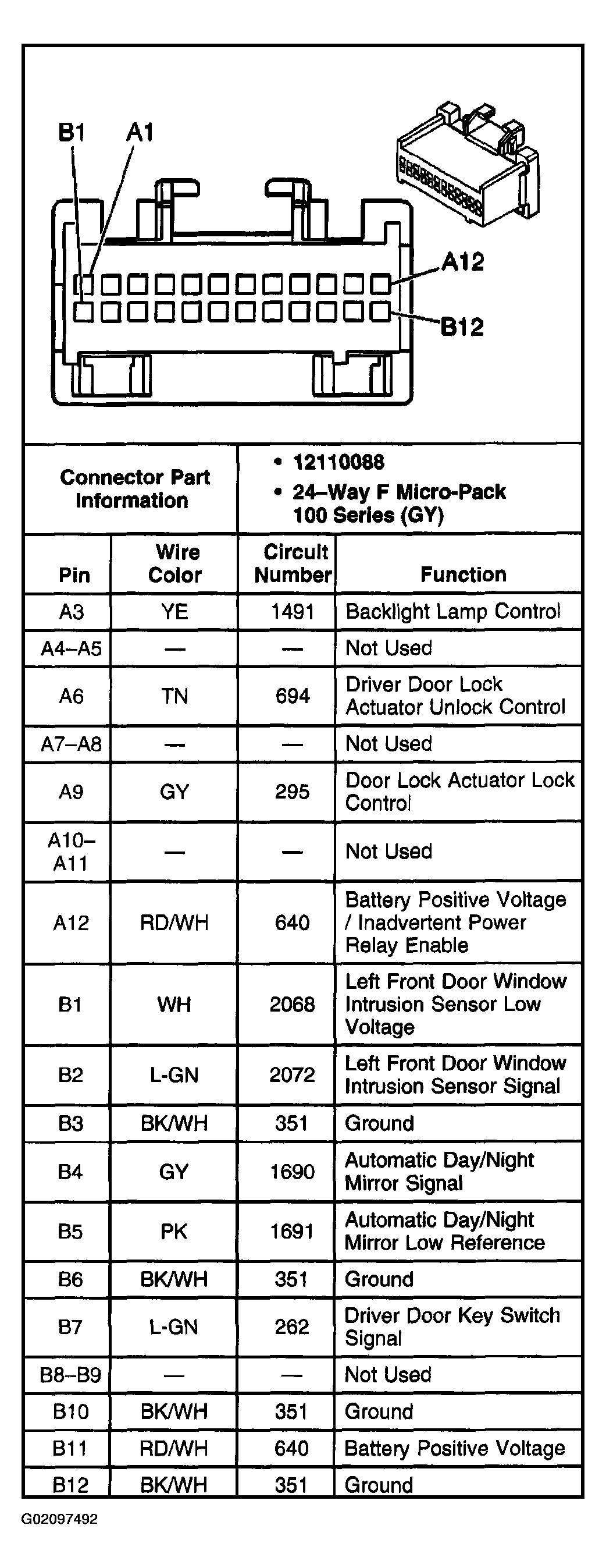

Fig 10: Driver Door Module (DDM) Connector End View - C3 Connector Terminal (2 Of 2)
G02097492Courtesy of GENERAL MOTORS CORP.

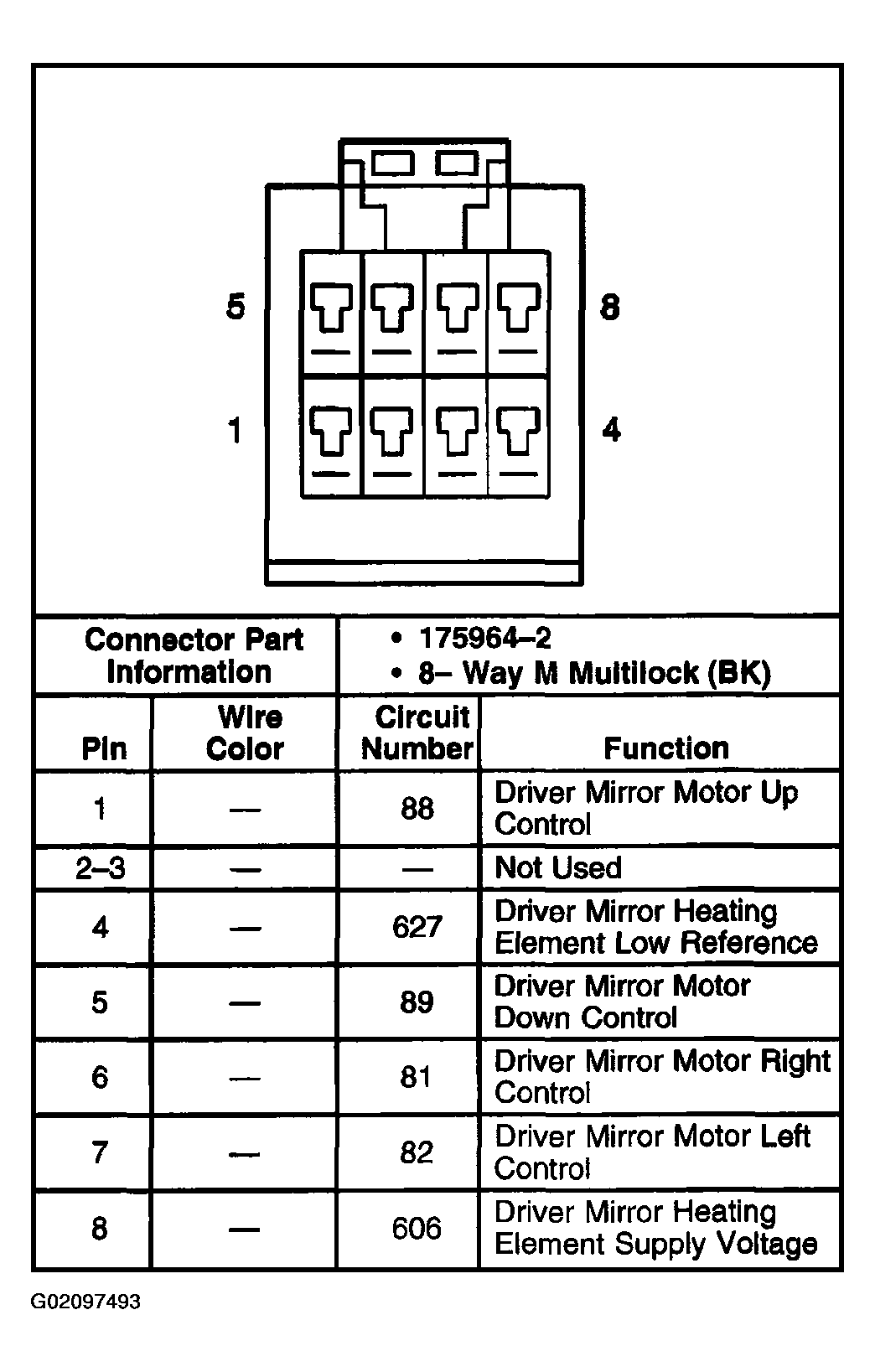

Fig 11: Driver Door Module (DDM) Connector End View - C4 Connector Terminal
G02097493Courtesy of GENERAL MOTORS CORP.

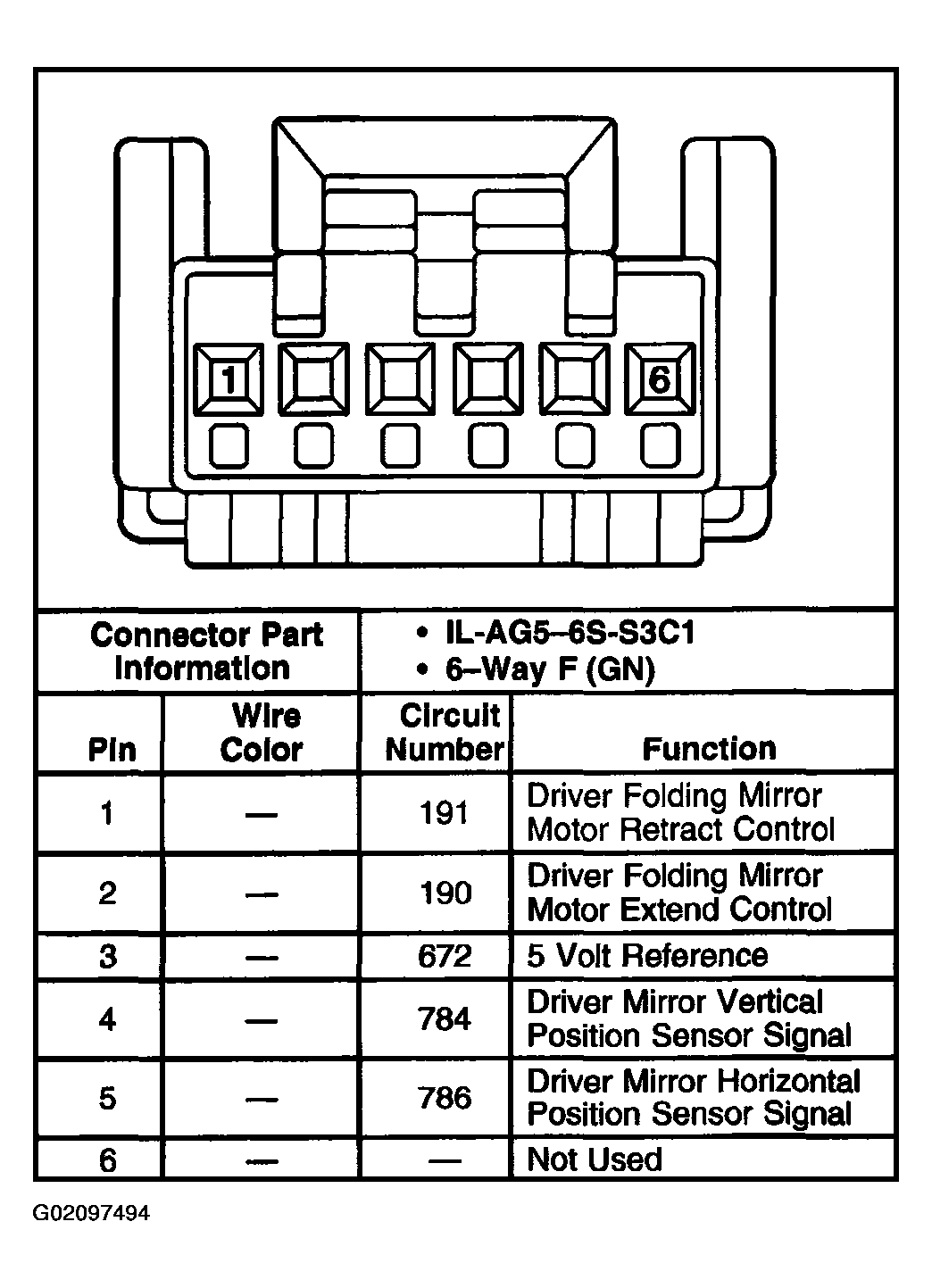

Fig 12: Driver Door Module (DDM) Connector End View - C5 Connector Terminal
G02097494Courtesy of GENERAL MOTORS CORP.

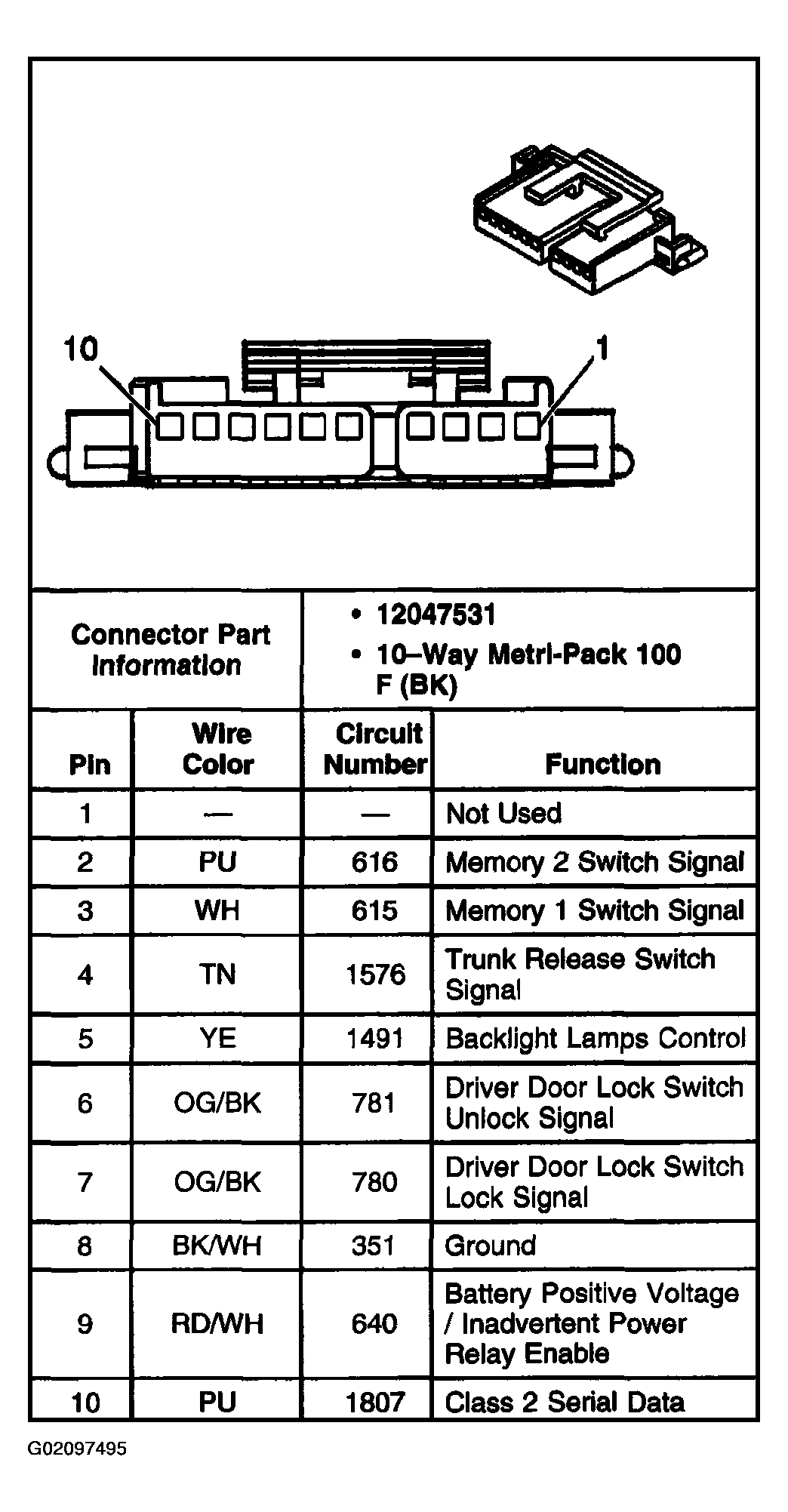

Fig 13: Driver Door Switch Assembly (DDSA) Connector End View - Connector Terminal
G02097495Courtesy of GENERAL MOTORS CORP.

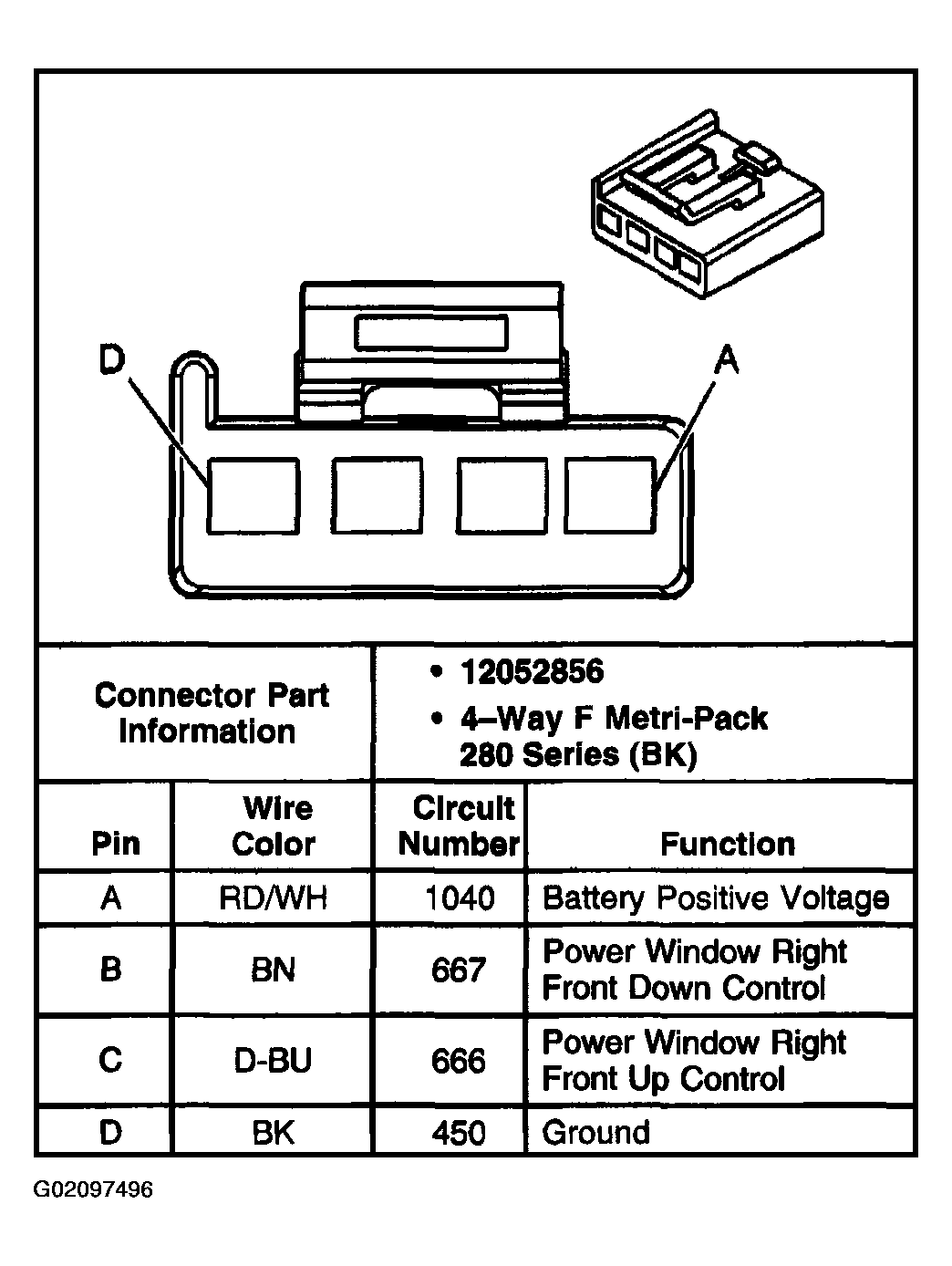

Fig 14: Front Passenger Door Module (FPDM) Connector End View - C1 Connector Terminal
G02097496Courtesy of GENERAL MOTORS CORP.

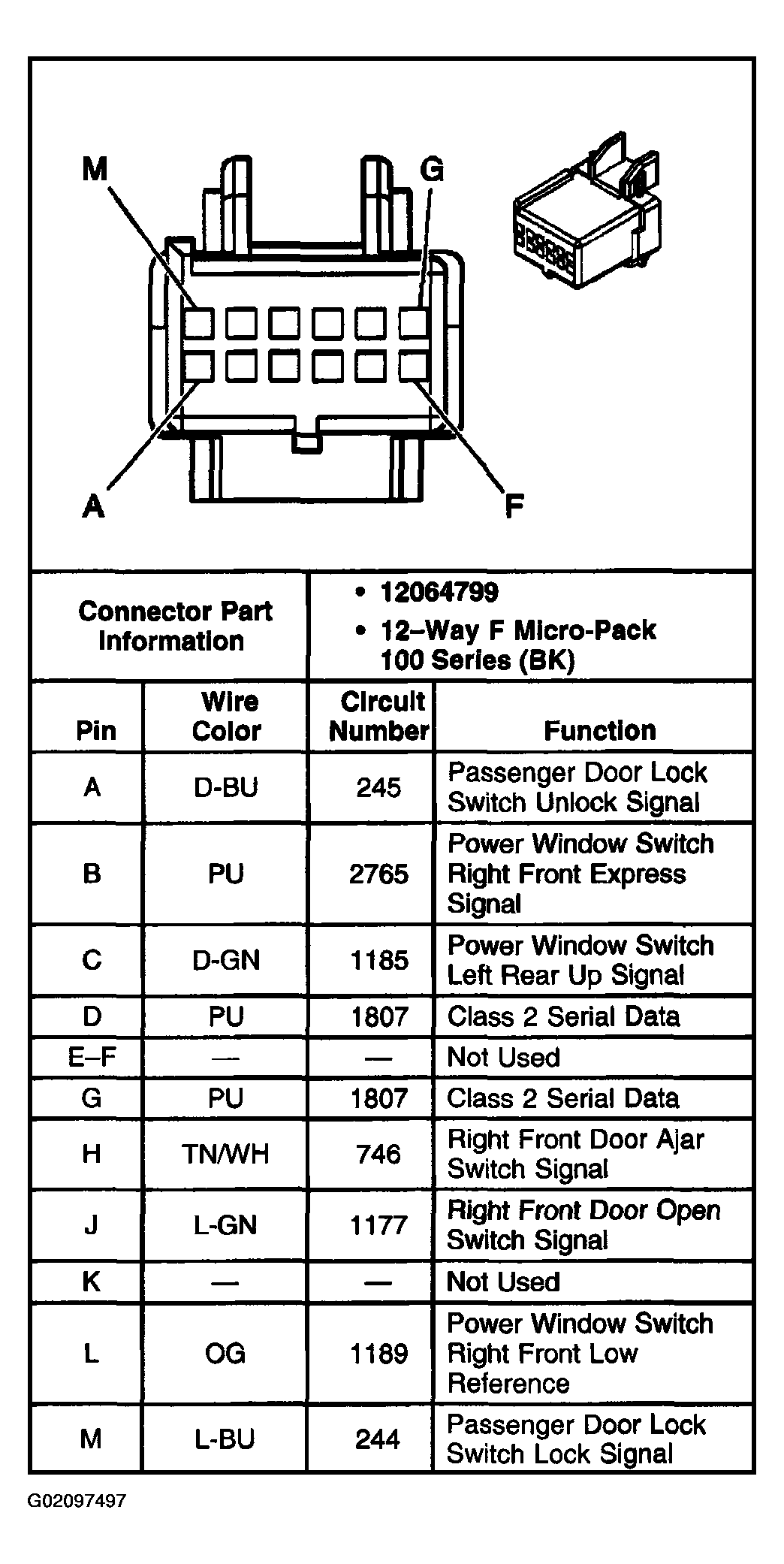

Fig 15: Front Passenger Door Module (FPDM) Connector End View - C2 Connector Terminal
G02097497Courtesy of GENERAL MOTORS CORP.

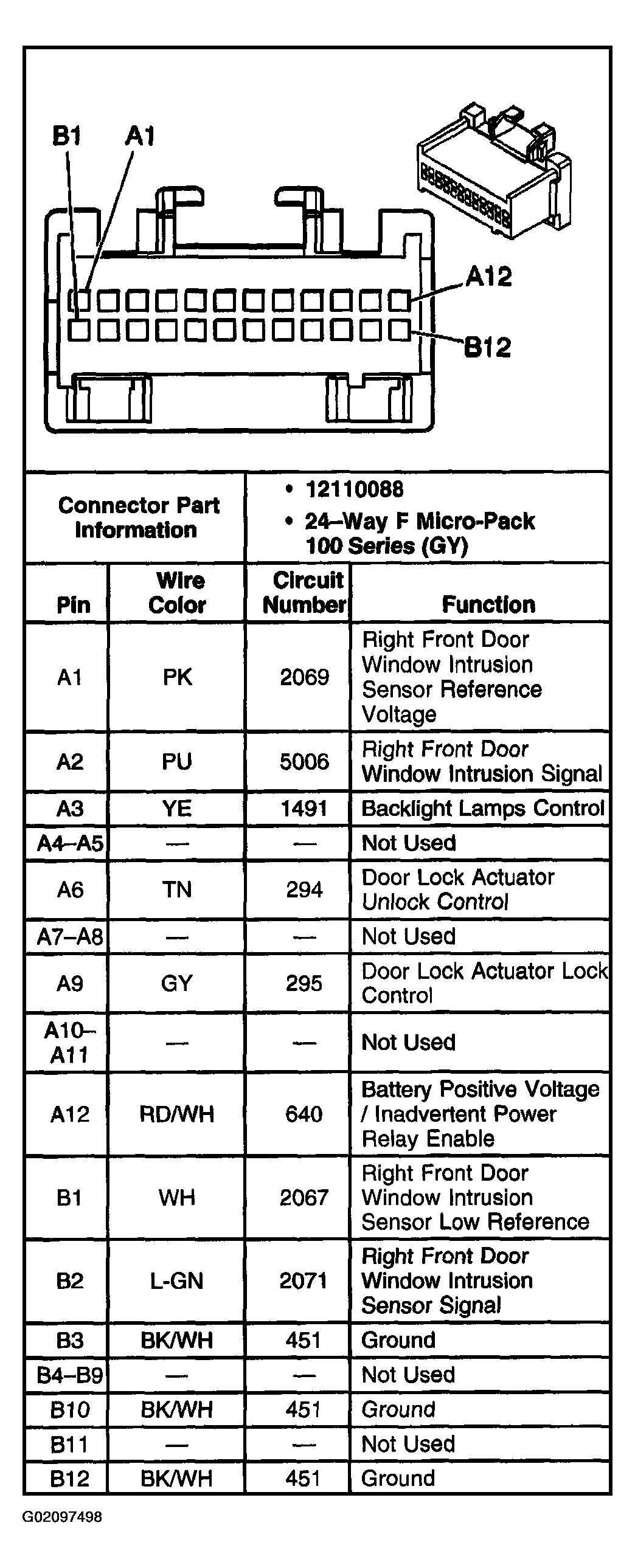

Fig 16: Front Passenger Door Module (FPDM) Connector End View - C3 Connector Terminal
G02097498Courtesy of GENERAL MOTORS CORP.

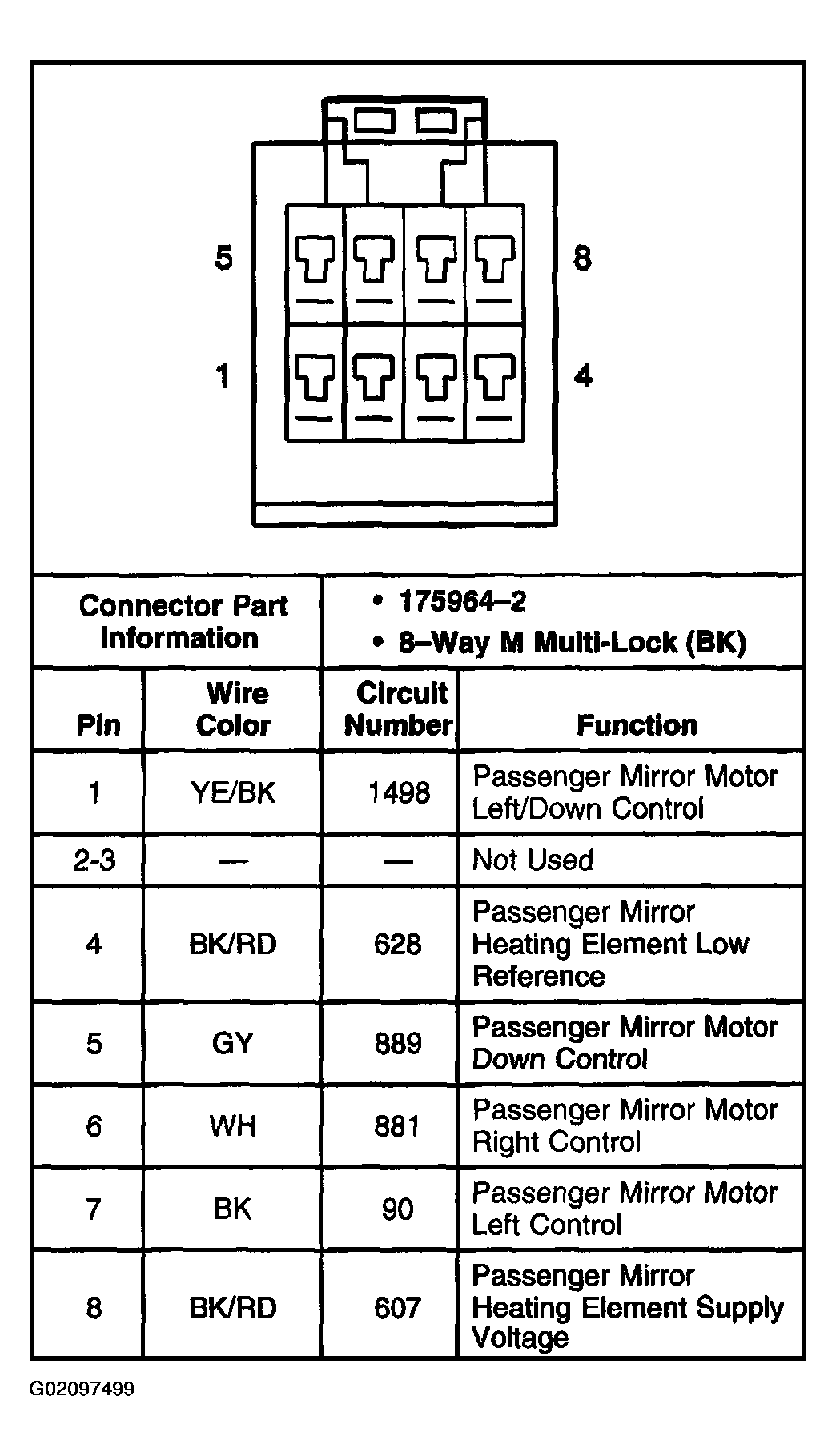

Fig 17: Front Passenger Door Module (FPDM) Connector End View - C4 Connector Terminal
G02097499Courtesy of GENERAL MOTORS CORP.

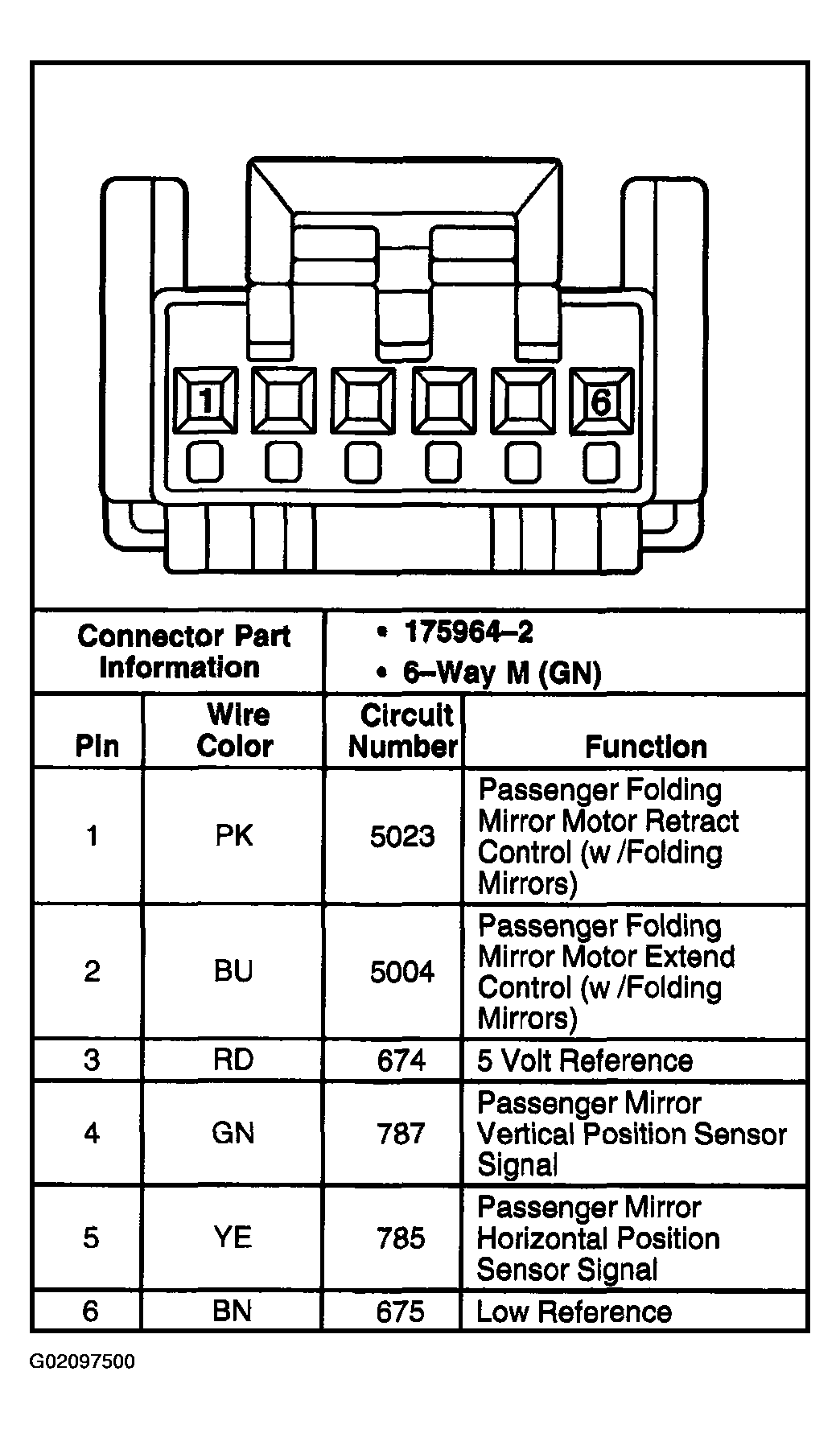

Fig 18: Front Passenger Door Module (FPDM) Connector End View - C5 Connector Terminal
G02097500Courtesy of GENERAL MOTORS CORP.

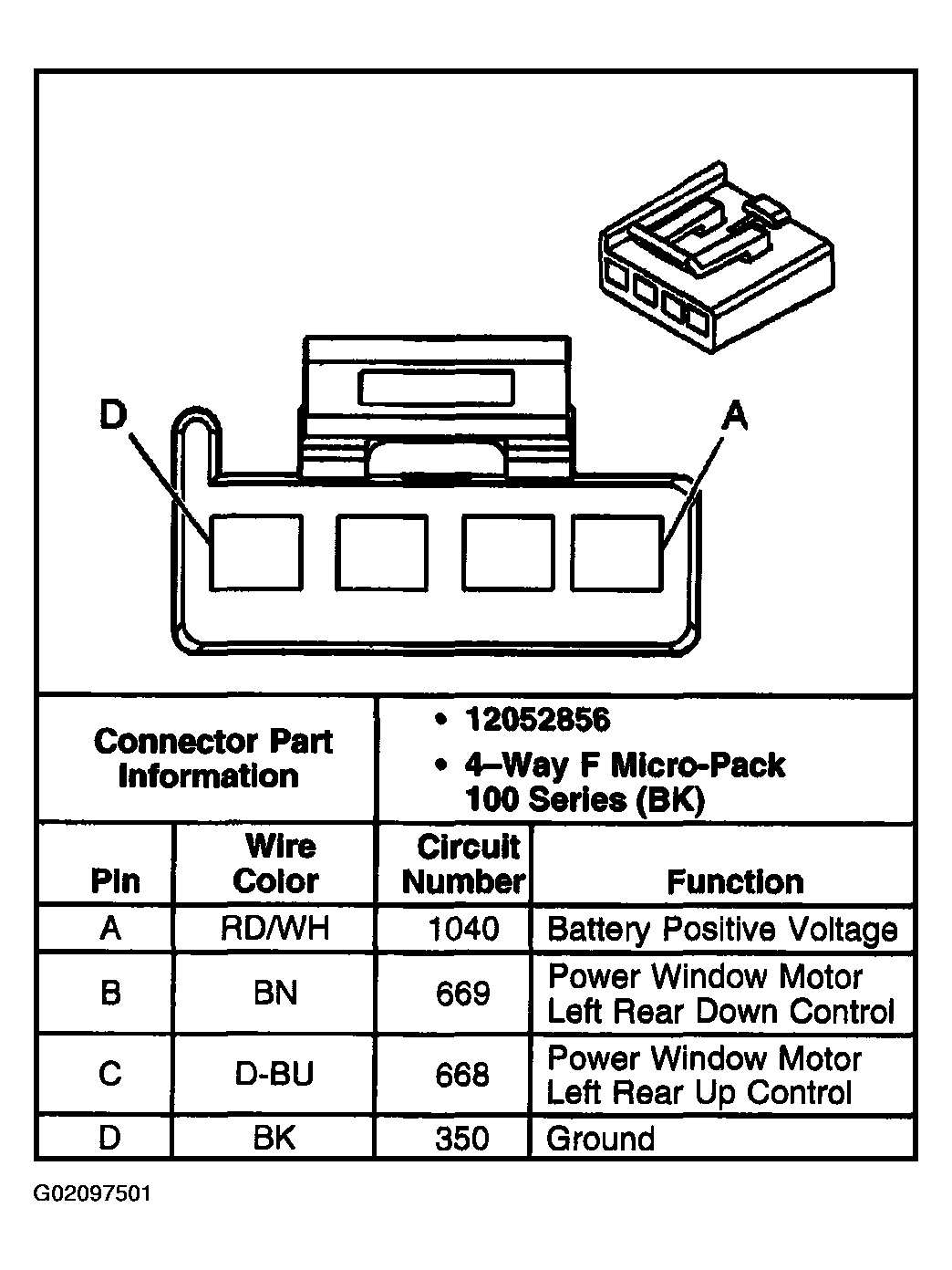

Fig 19: Left Rear Door Module (LRDM) Connector End View - C1 Connector Terminal
G02097501Courtesy of GENERAL MOTORS CORP.

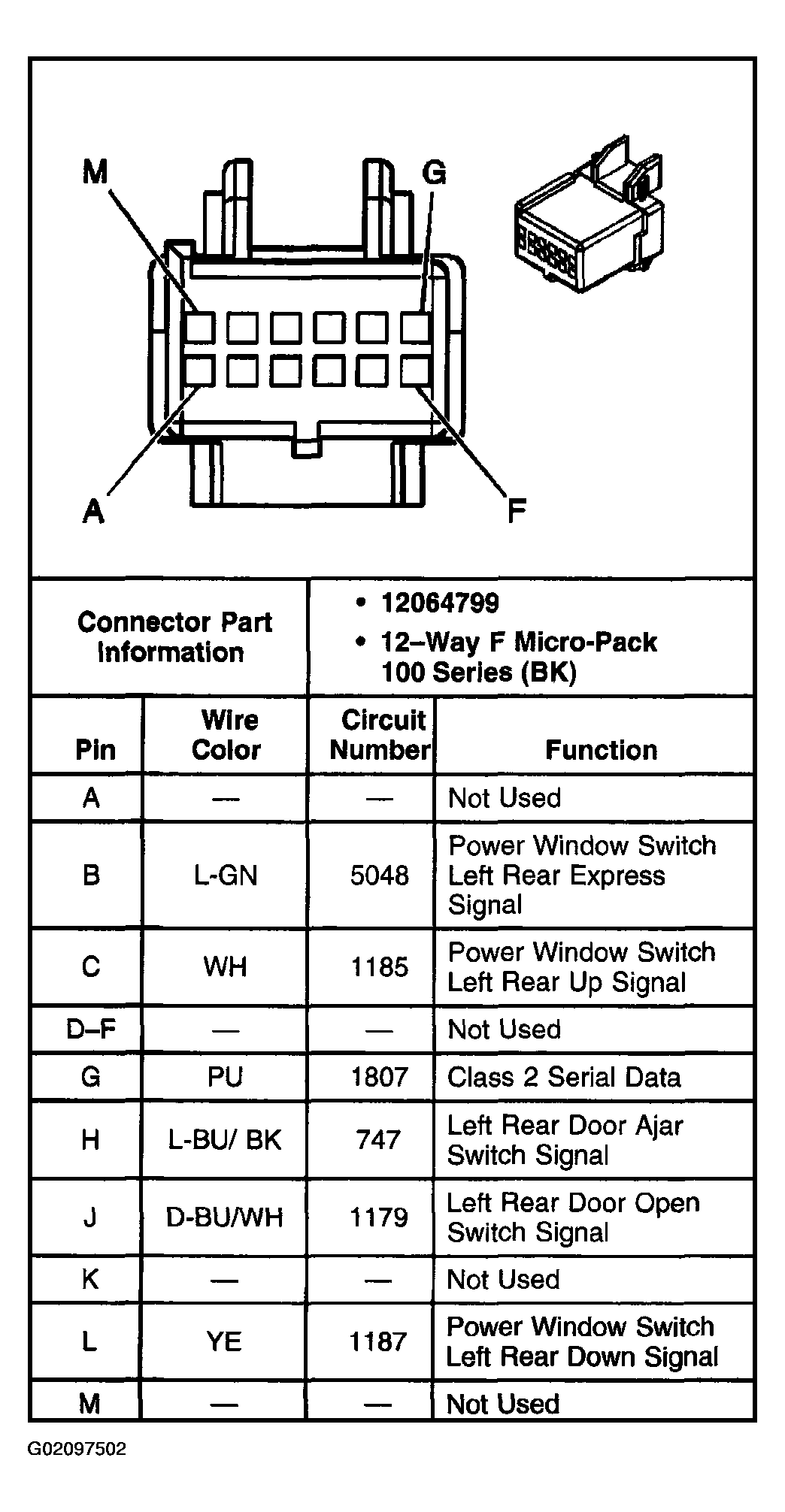

Fig 20: Left Rear Door Module (LRDM) Connector End View - C2 Connector Terminal
G02097502Courtesy of GENERAL MOTORS CORP.

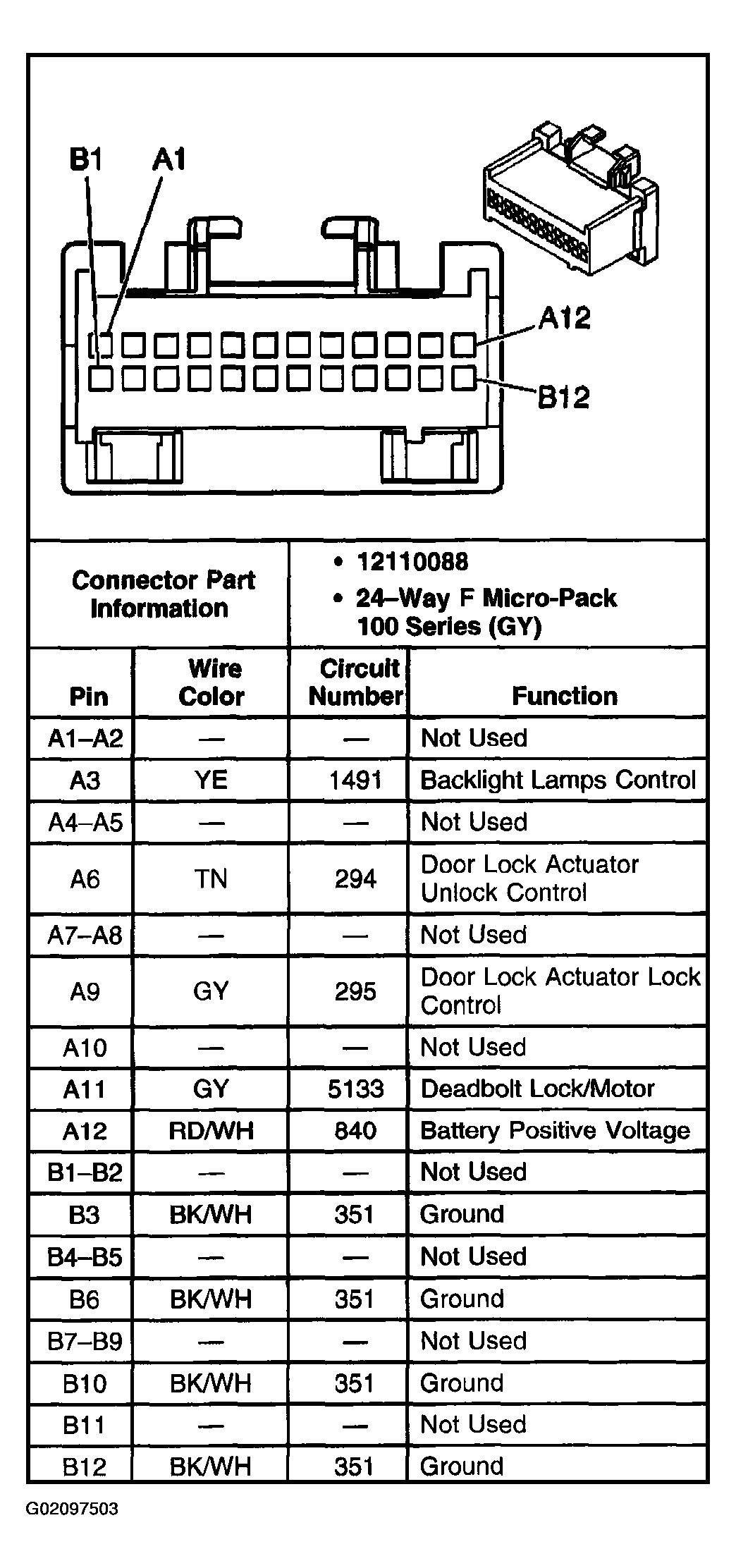

Fig 21: Left Rear Door Module (LRDM) Connector End View - C3 Connector Terminal
G02097503Courtesy of GENERAL MOTORS CORP.

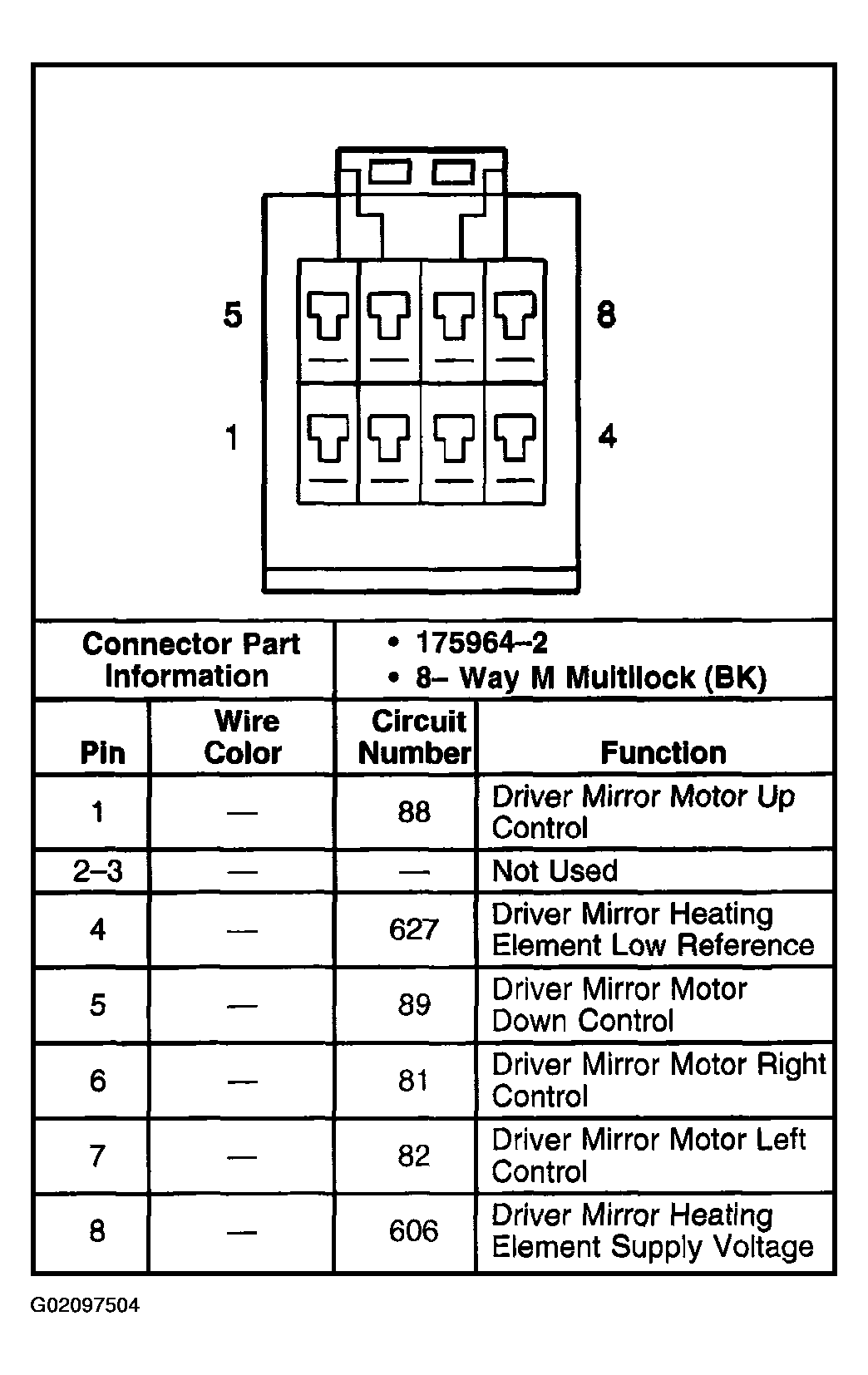

Fig 22: Outside Rearview Mirror Connector End View - Driver (DDM C4) Connector Terminal
G02097504Courtesy of GENERAL MOTORS CORP.

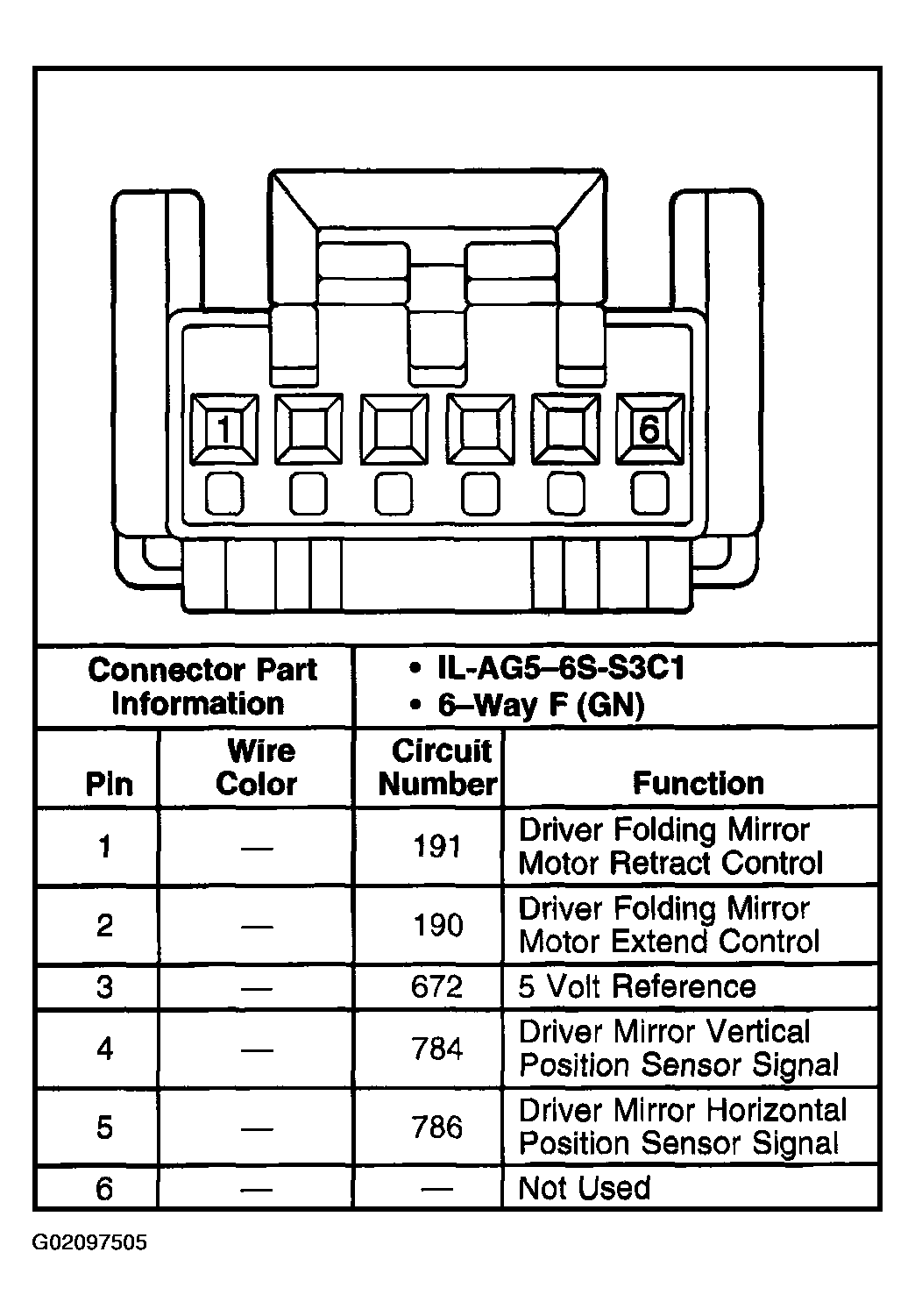

Fig 23: Outside Rearview Mirror Connector End View - Driver (DDM C5) Connector Terminal
G02097505Courtesy of GENERAL MOTORS CORP.

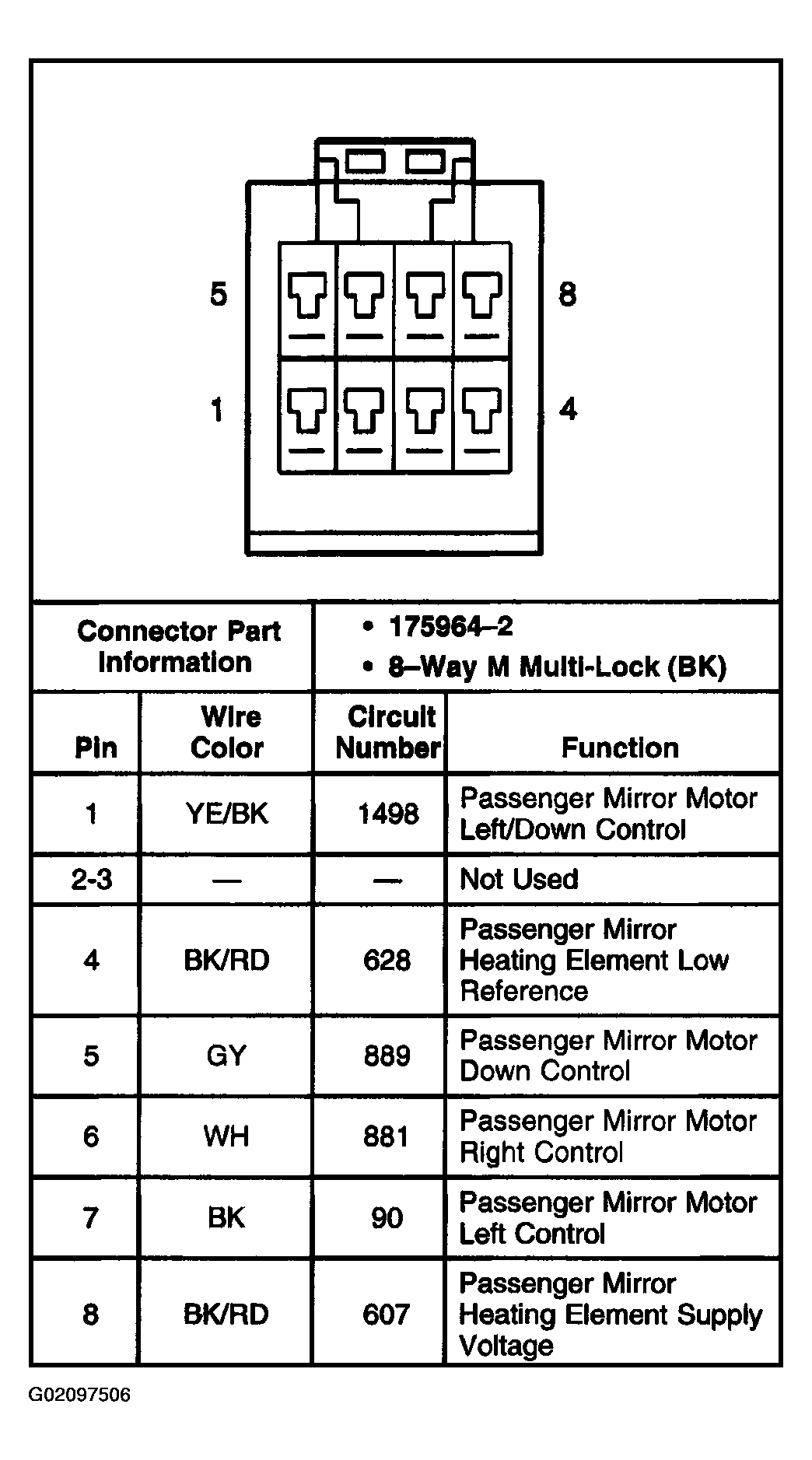

Fig 24: Outside Rearview Mirror Connector End View - Passenger (FPDM C4) Connector Terminal
G02097506Courtesy of GENERAL MOTORS CORP.

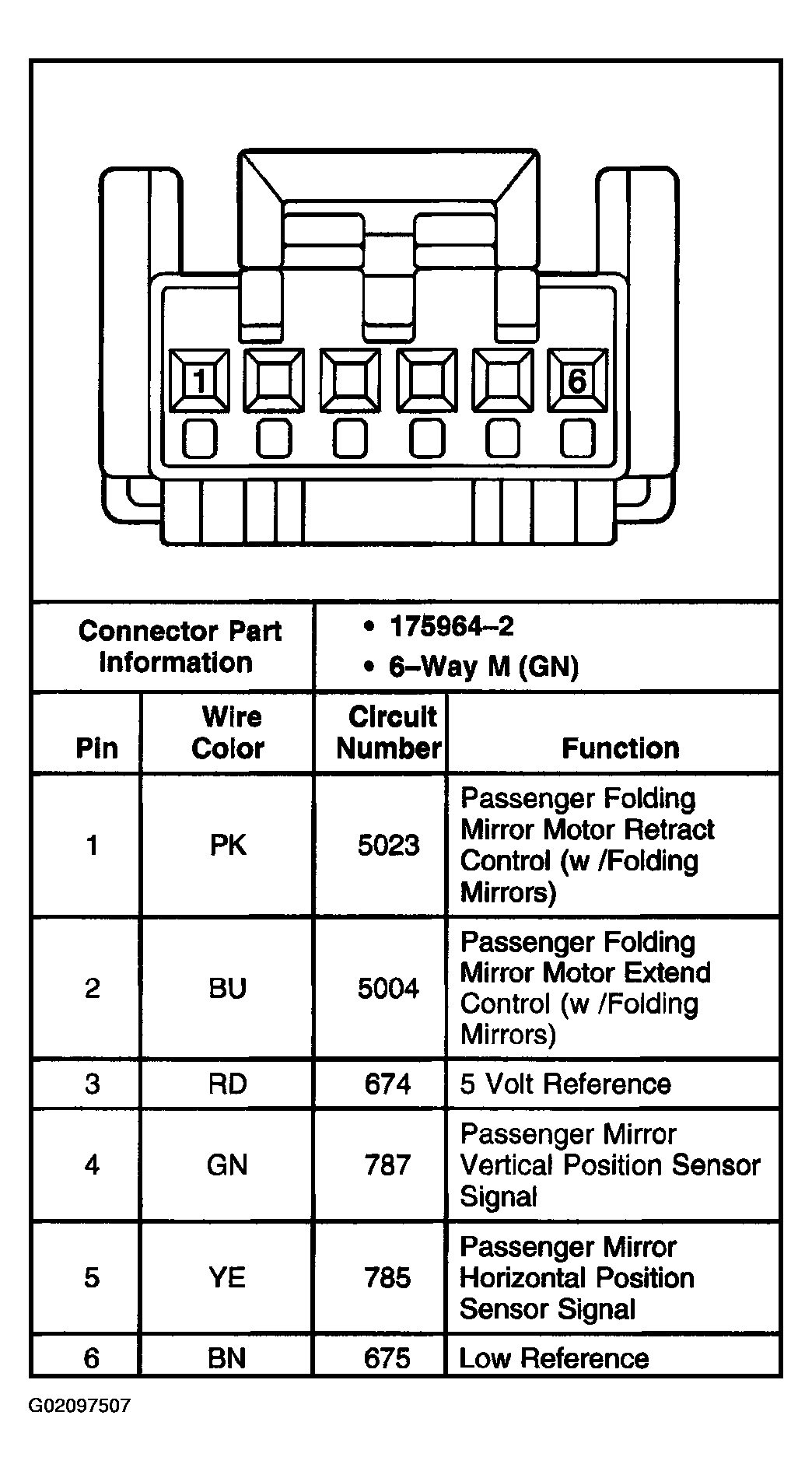

Fig 25: Outside Rearview Mirror Connector End View - Passenger (FPDM C5) Connector Terminal
G02097507Courtesy of GENERAL MOTORS CORP.

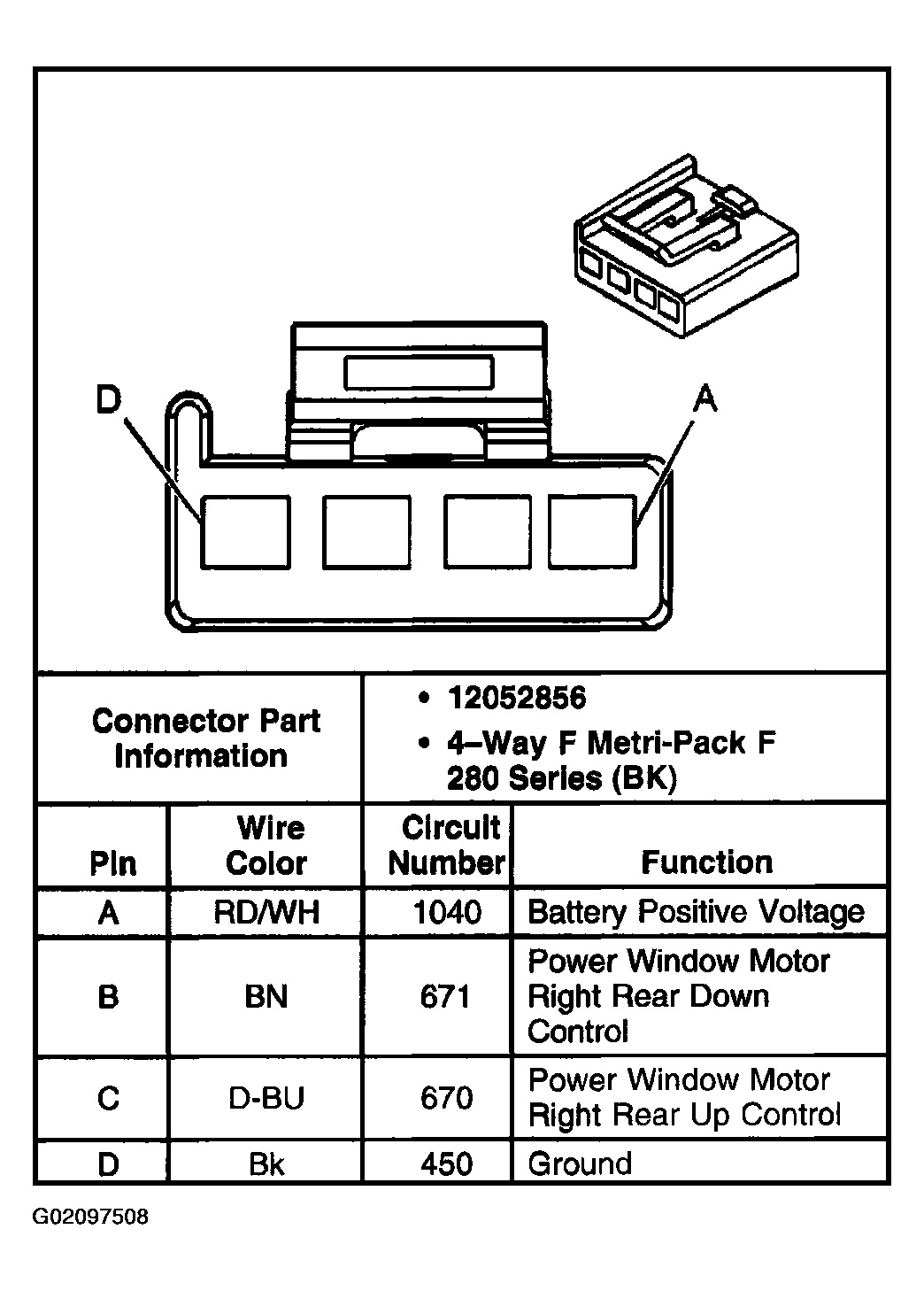

Fig 26: Right Rear Door Module (RRDM) Connector End View - C1 Connector Terminal
G02097508Courtesy of GENERAL MOTORS CORP.

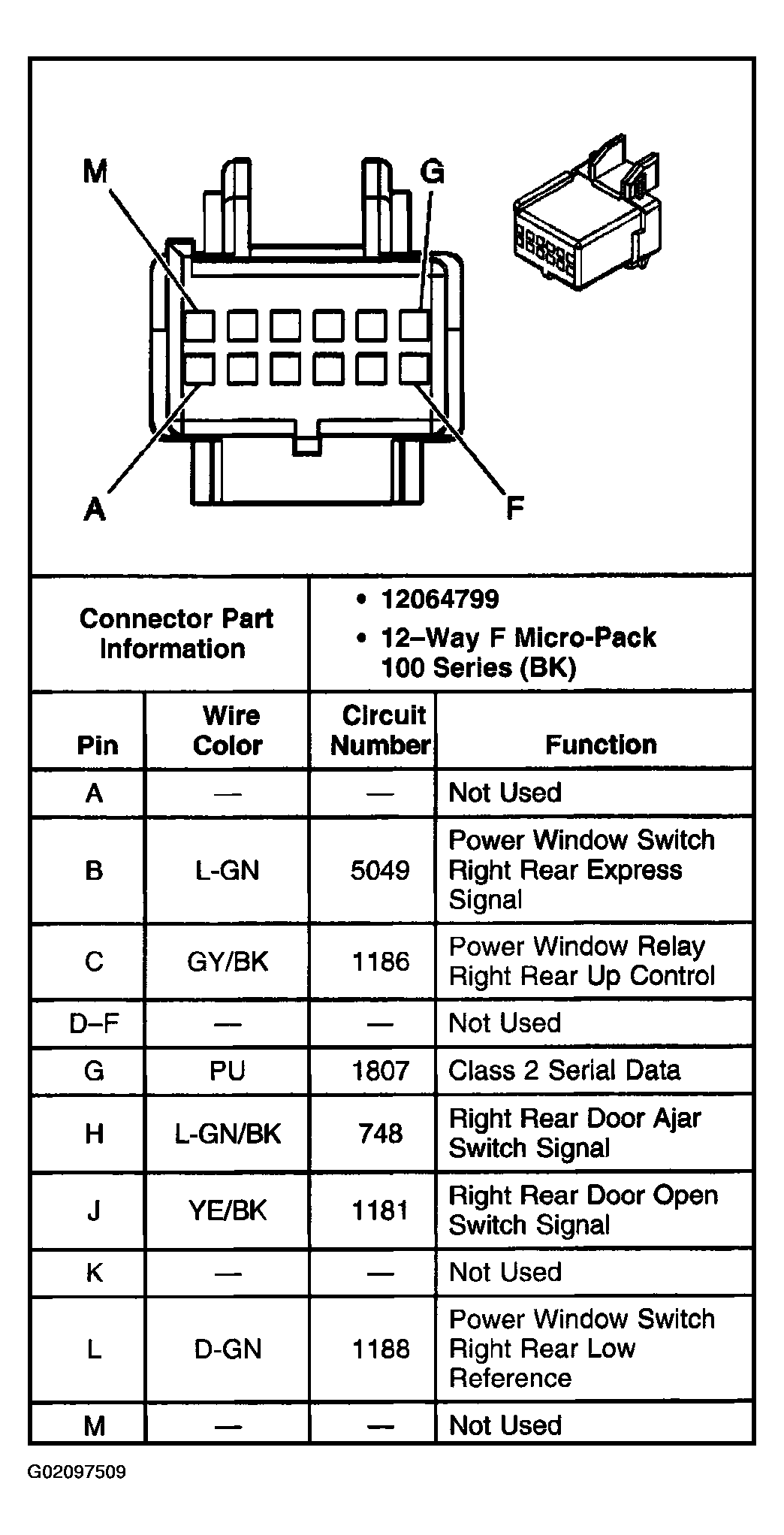

Fig 27: Right Rear Door Module (RRDM) Connector End View - C2 Connector Terminal
G02097509Courtesy of GENERAL MOTORS CORP.

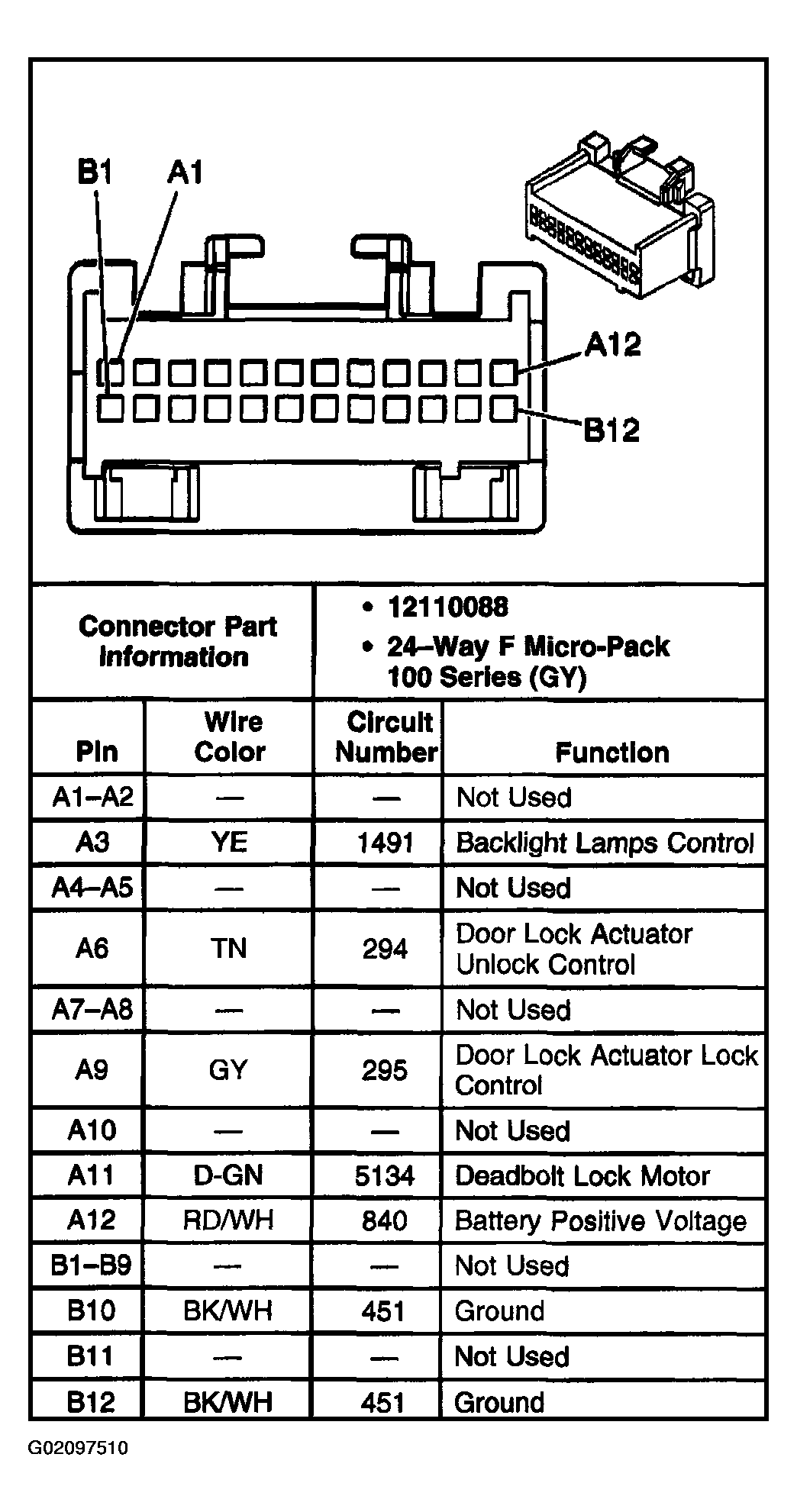

Fig 28: Right Rear Door Module (RRDM) Connector End View - C3 Connector Terminal
G02097510Courtesy of GENERAL MOTORS CORP.

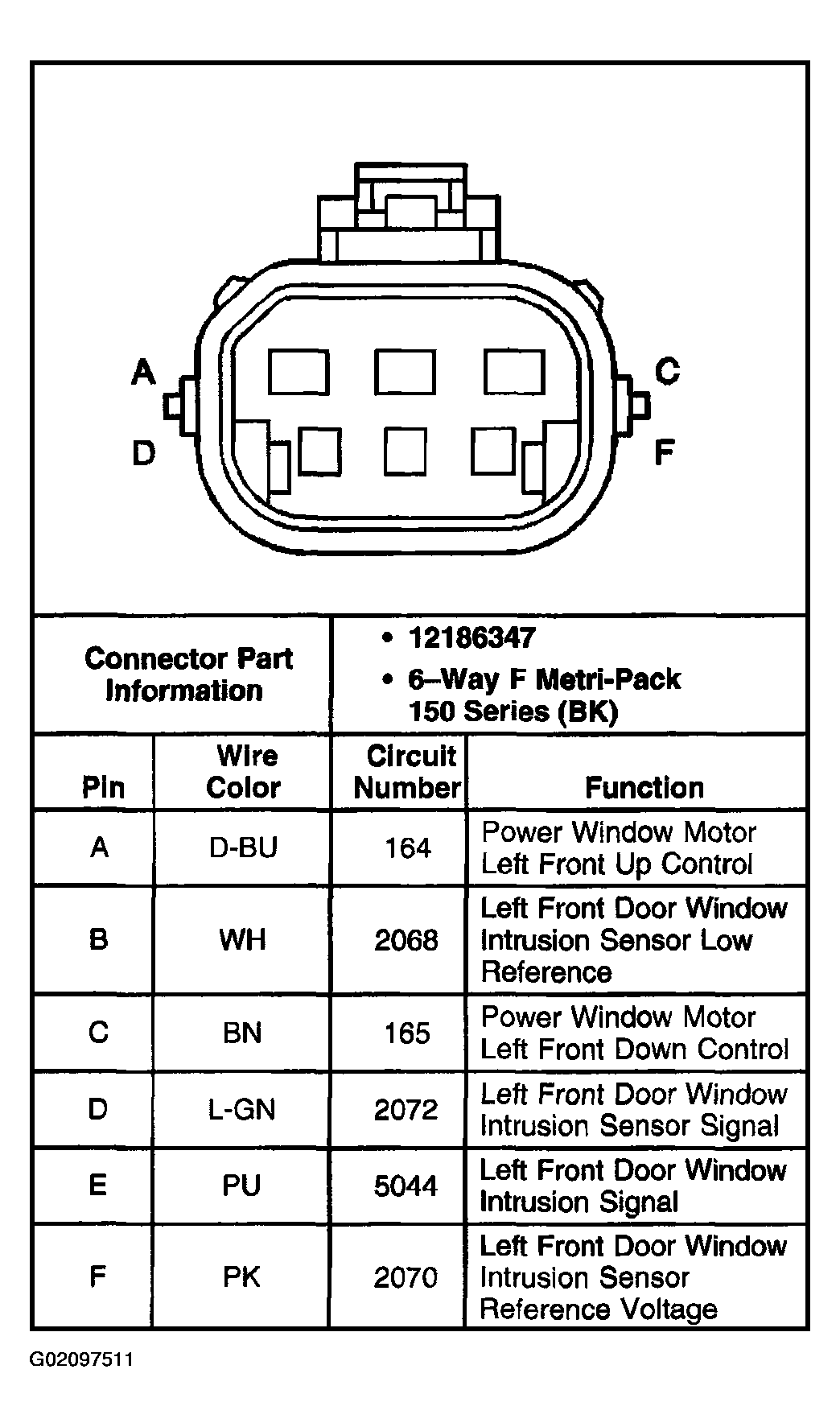

Fig 29: Window Motor Connector End View - Driver Connector Terminal
G02097511Courtesy of GENERAL MOTORS CORP.

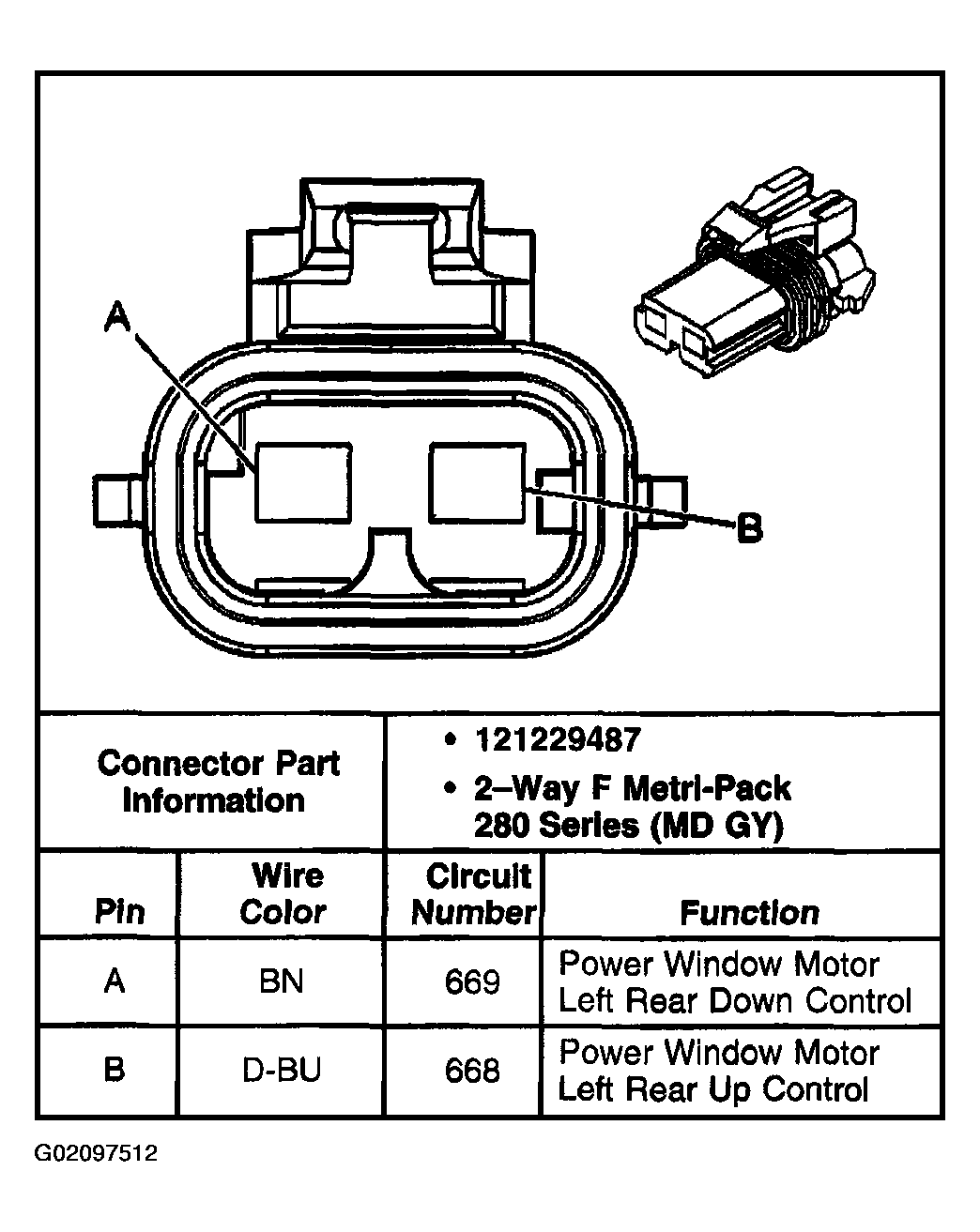

Fig 30: Window Motor Connector End View - LR Connector Terminal
G02097512Courtesy of GENERAL MOTORS CORP.

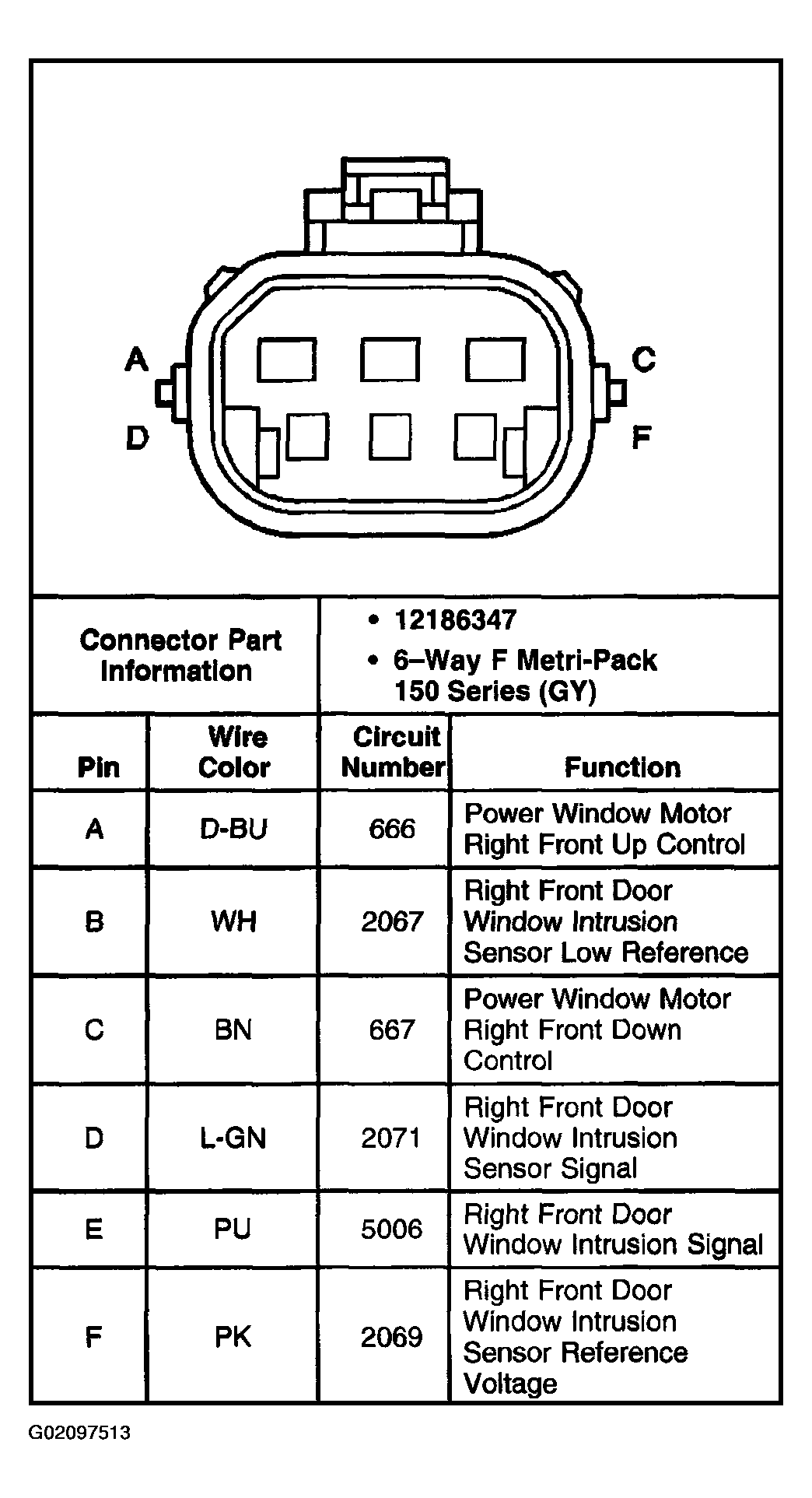

Fig 31: Window Motor Connector End View - Passenger Connector Terminal
G02097513Courtesy of GENERAL MOTORS CORP.

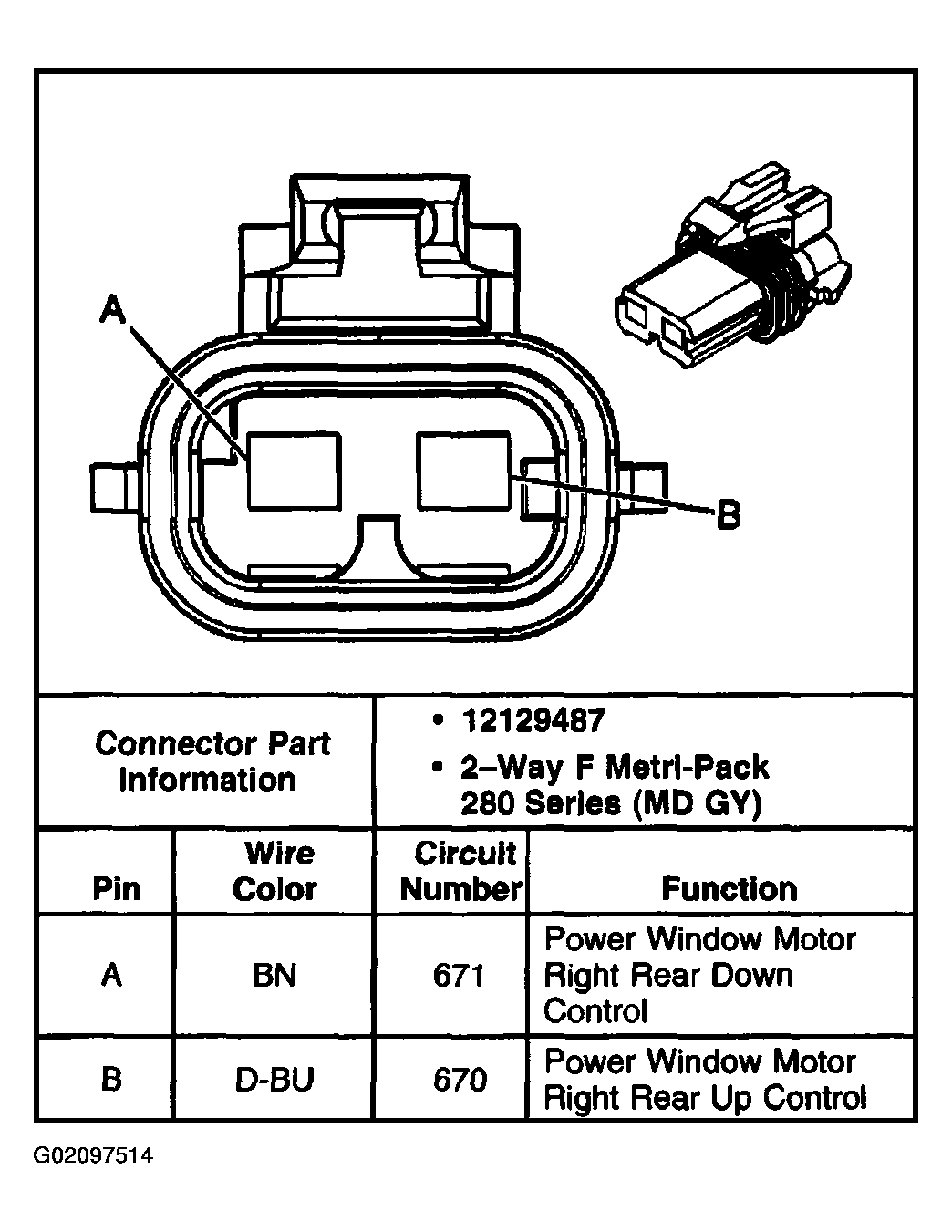

Fig 32: Window Motor Connector End View - RR Connector Terminal
G02097514Courtesy of GENERAL MOTORS CORP.
Fig 33: Window Switch Connector End View - LR Connector Terminal
G02097515Courtesy of GENERAL MOTORS CORP.
