Scan Tool Output Controls

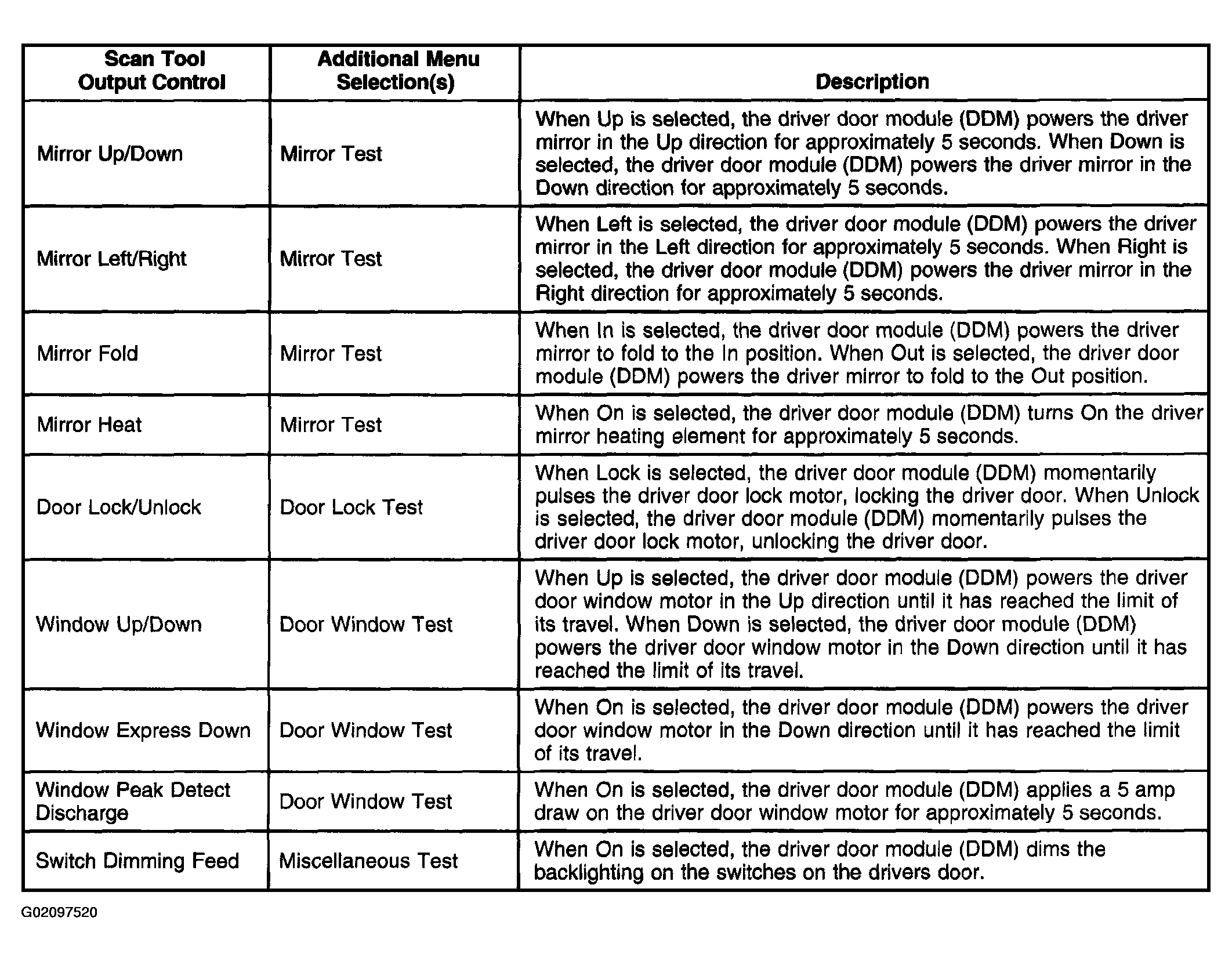

Fig 1: DDM Scan Tool Output Control Description Table

Courtesy of GENERAL MOTORS CORP.

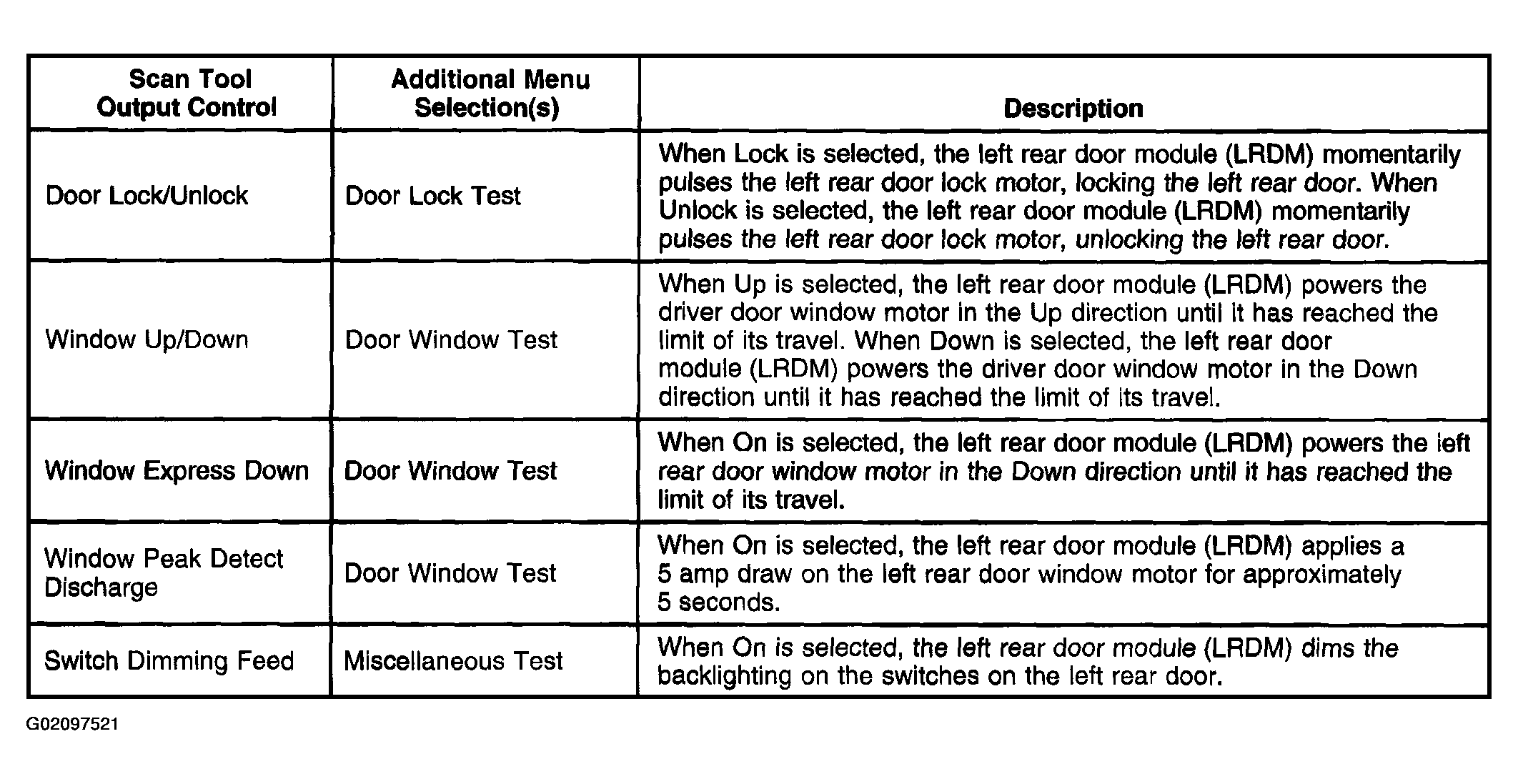

Fig 2: LRDM Scan Tool Output Control Description Table

Courtesy of GENERAL MOTORS CORP.

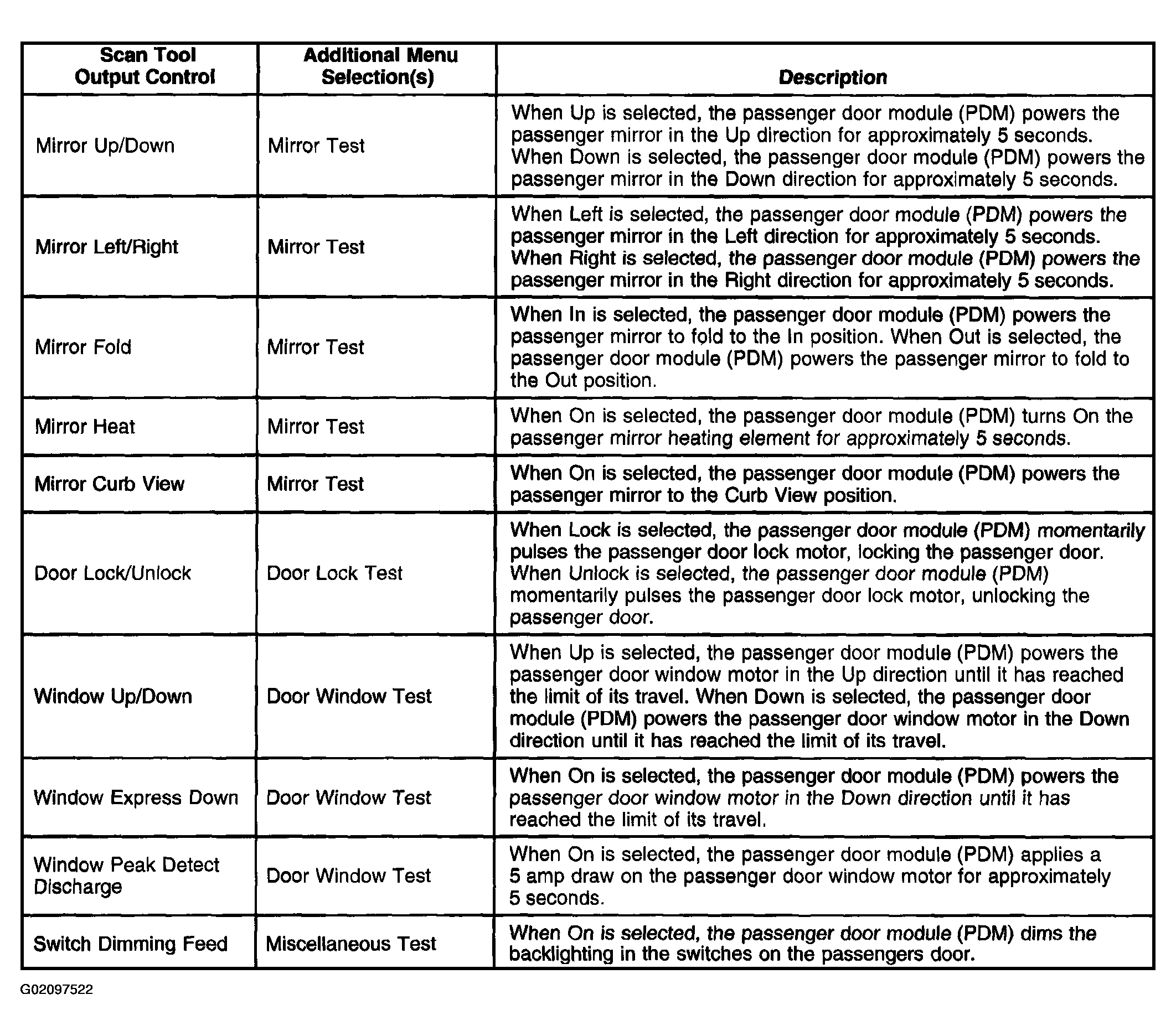

Fig 3: PDM Scan Tool Output Control Table

Courtesy of GENERAL MOTORS CORP.

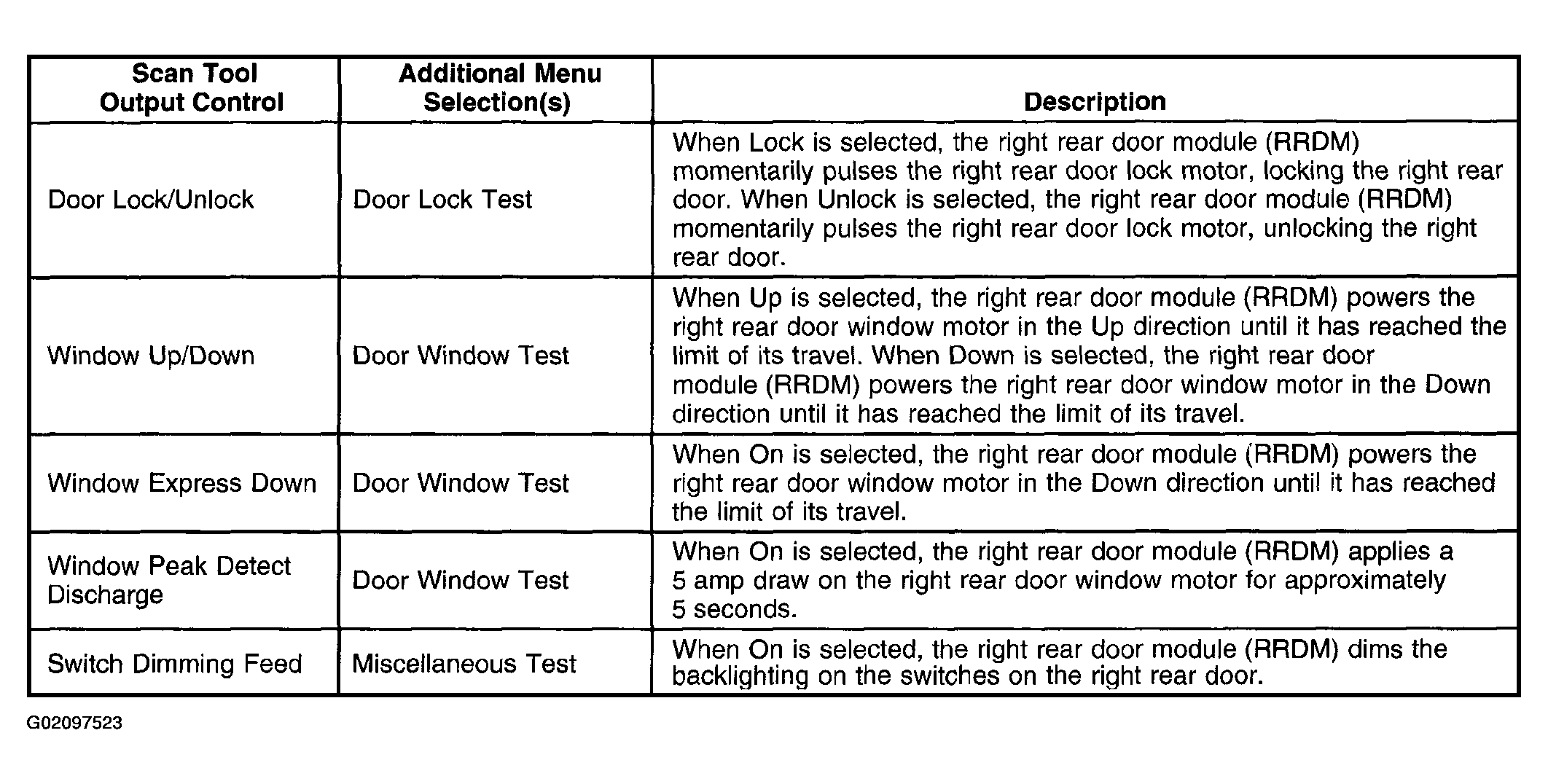

Fig 4: RRDM Scan Tool Output Control Table

Courtesy of GENERAL MOTORS CORP.
