Stationary Windows Connector End Views

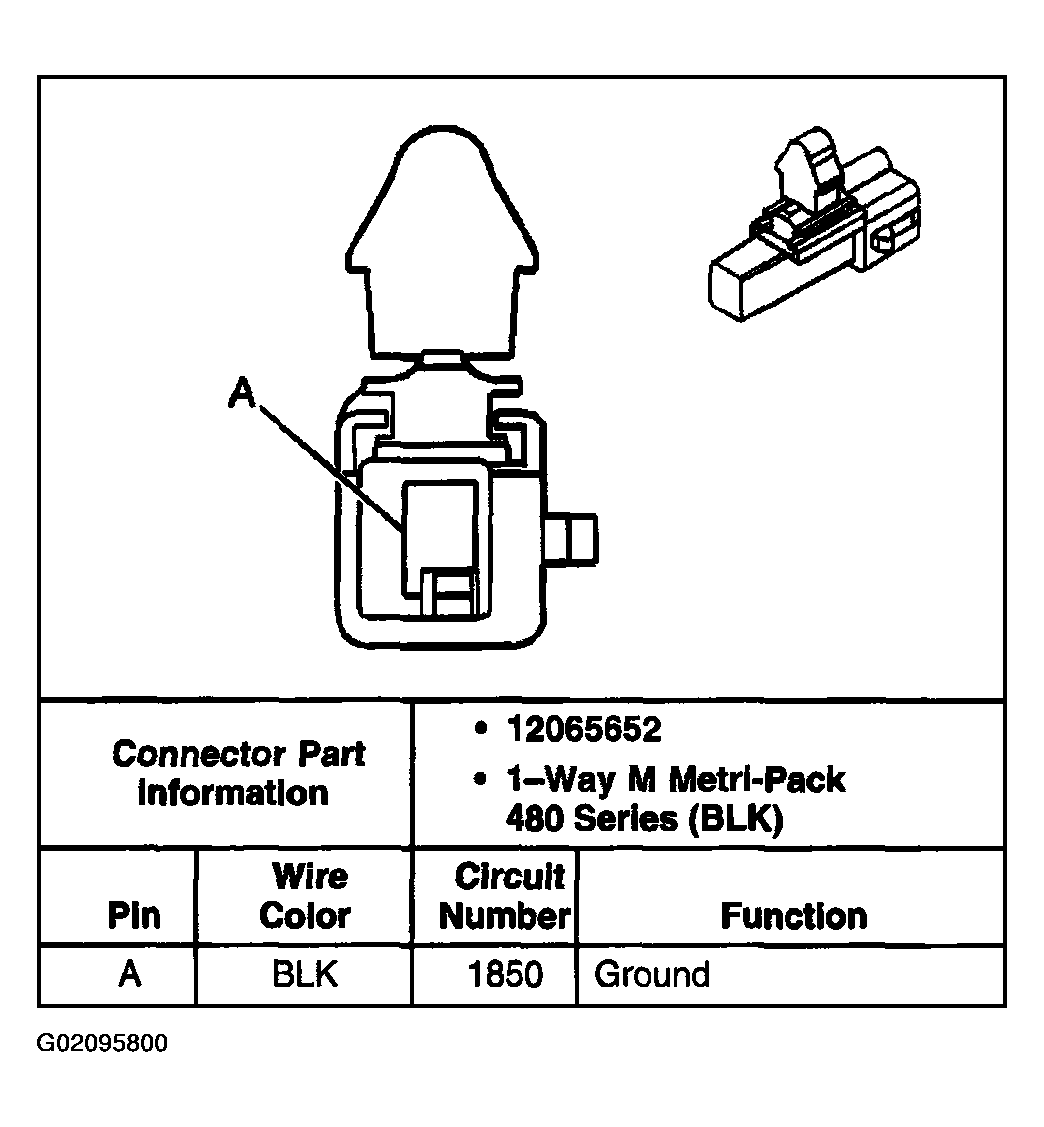

Fig 1: Rear Defogger Connector End View - Right
G02095800Courtesy of GENERAL MOTORS CORP.

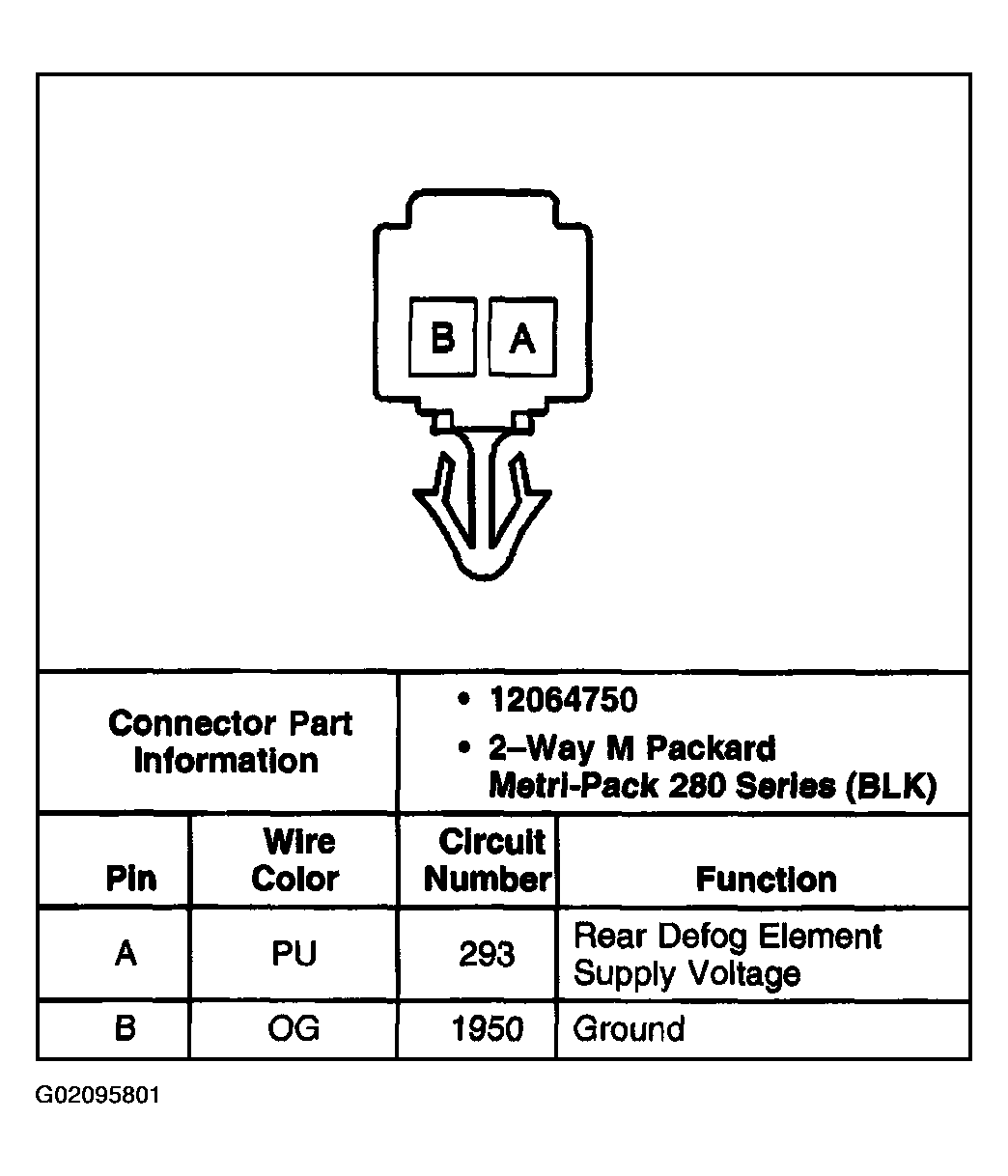

Fig 2: Rear Defogger Connector End View - Left
G02095801Courtesy of GENERAL MOTORS CORP.

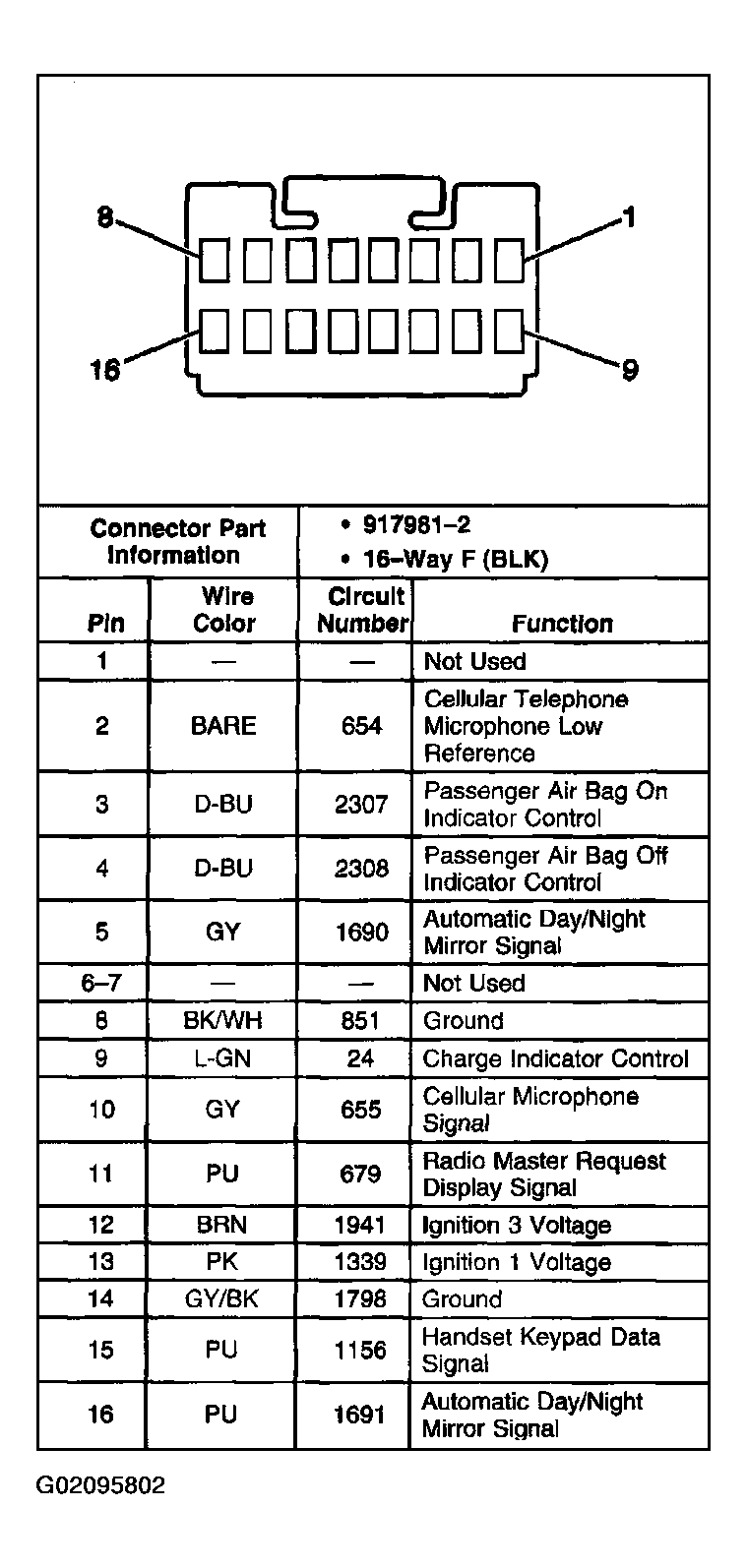

Fig 3: Inside Rearview Mirror Connector End View
G02095802Courtesy of GENERAL MOTORS CORP.
