Schematic and Routing Diagrams

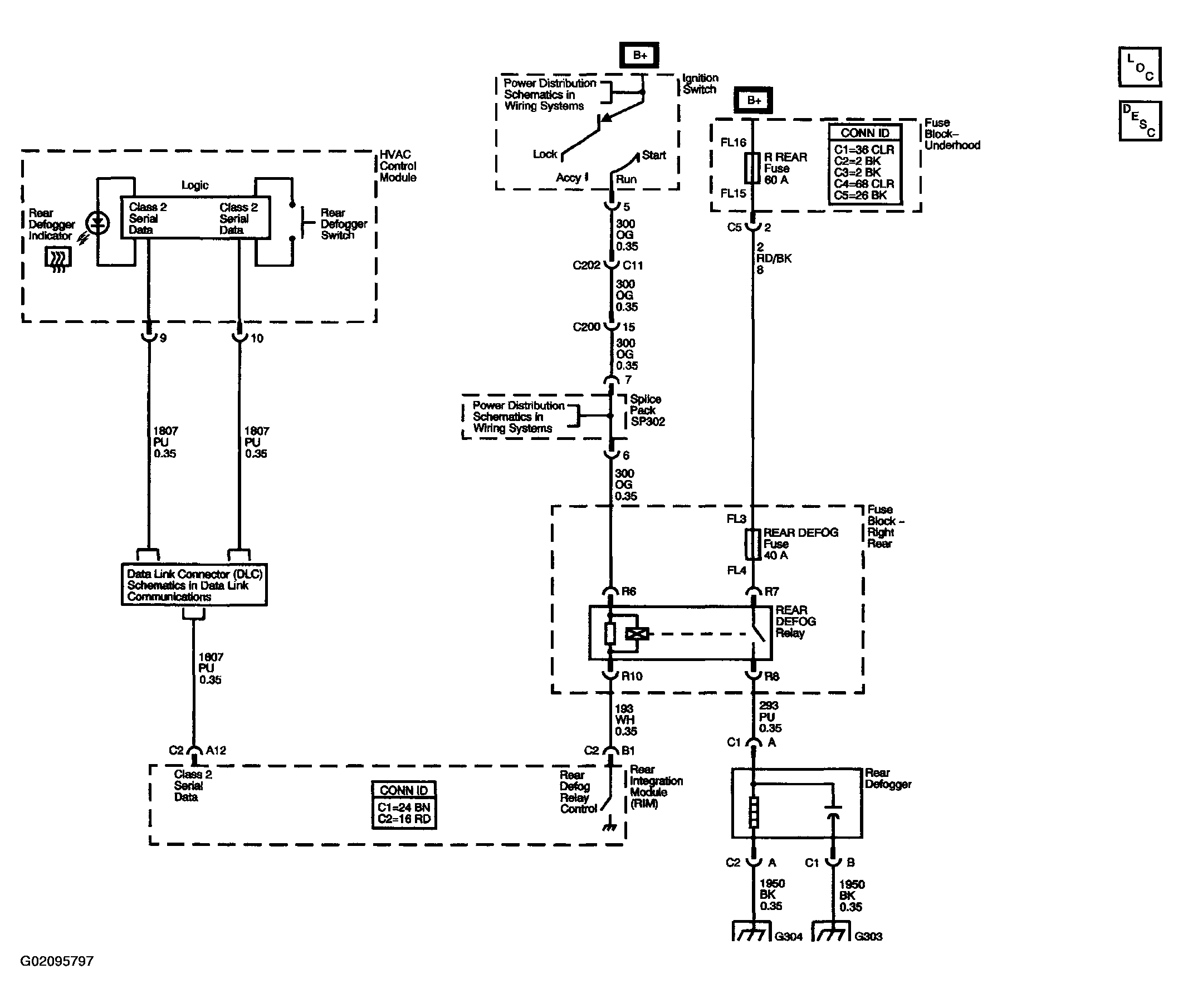

Fig 1: Defogger Schematics
G02095797Courtesy of GENERAL MOTORS CORP.

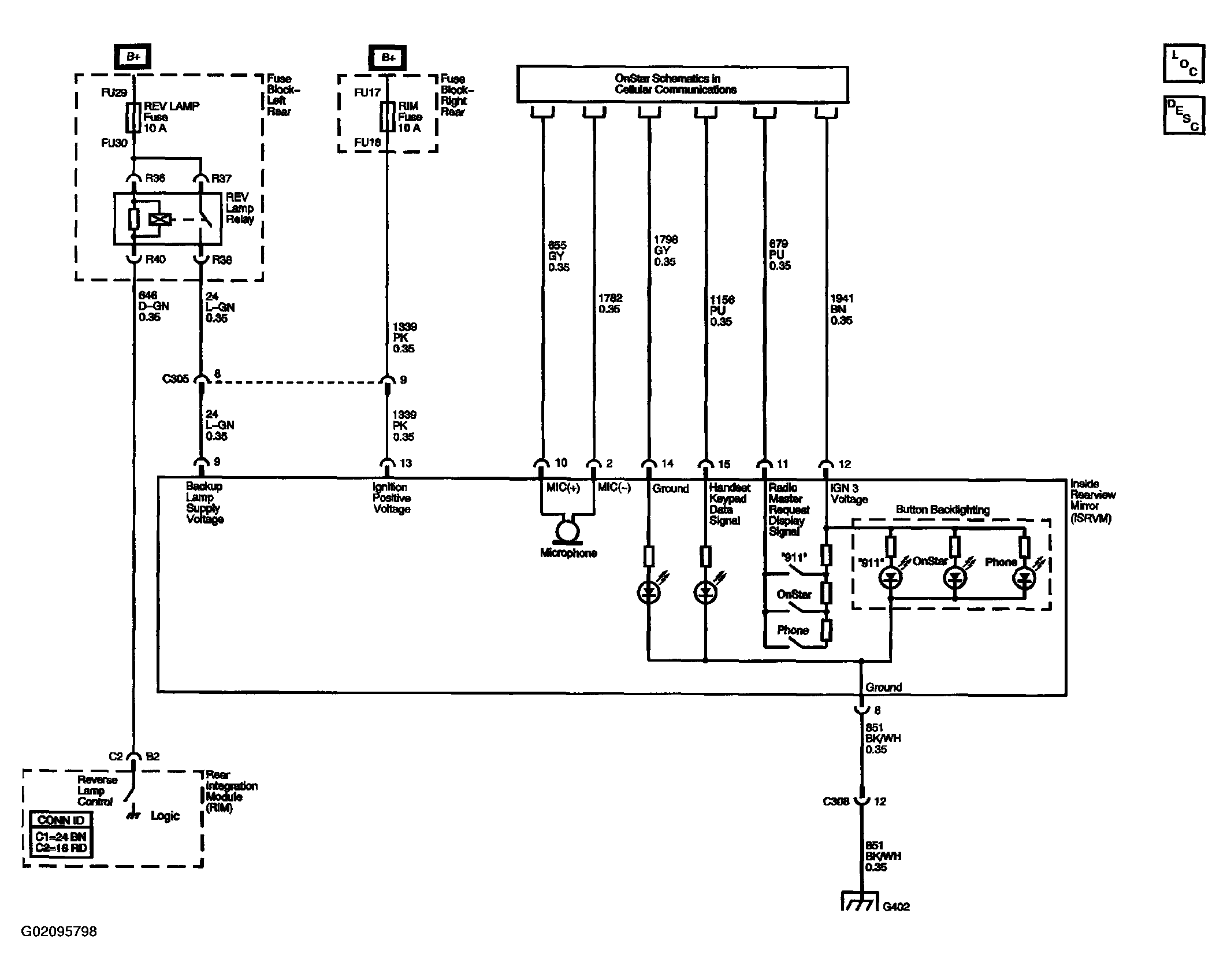

Fig 2: Inside Rearview Mirror Schematics
G02095798Courtesy of GENERAL MOTORS CORP.
