Installation Procedure

  1. Connect the electrical connector (1) to the traction control switch (2).
  2. Carefully push the traction control switch into the I/P compartment until it is locked into place.
  3. Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.

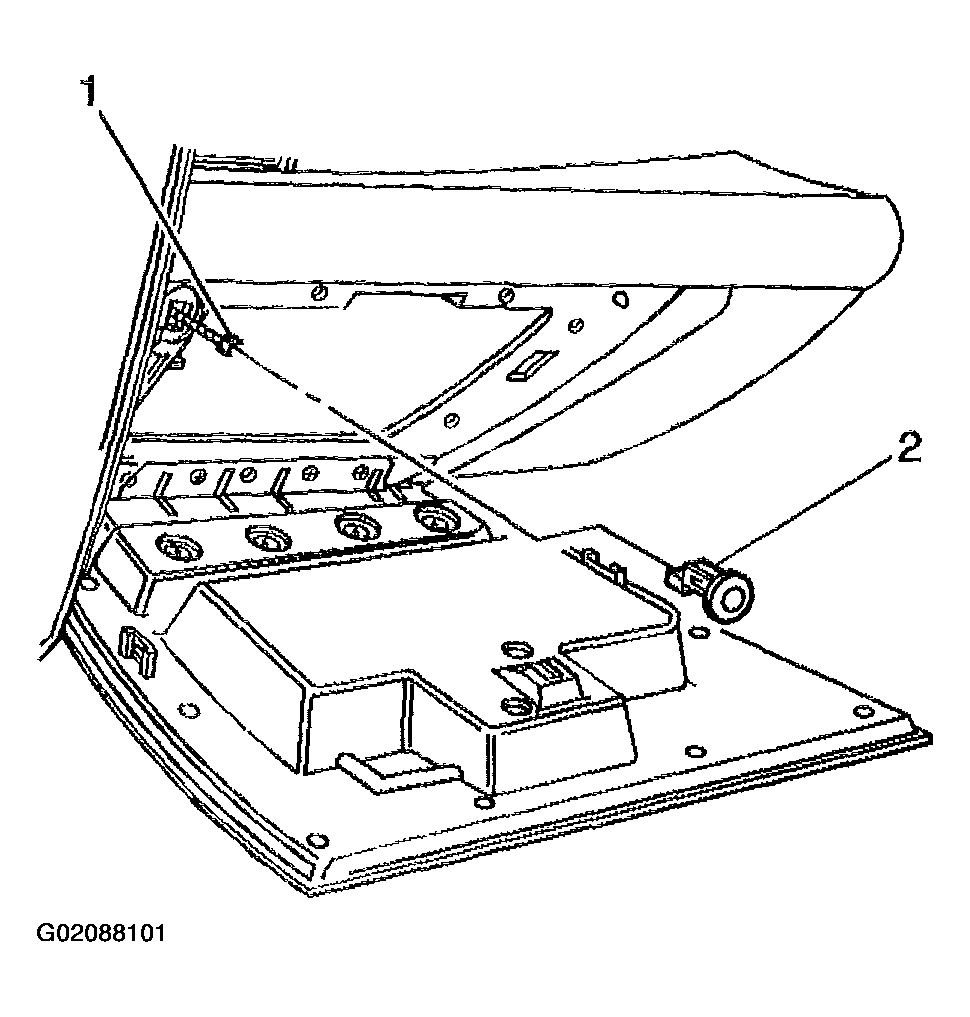

    Fig 1: Electrical Connector To Traction Control Switch
    G02088101Courtesy of GENERAL MOTORS CORP.
