Engine Electrical Component Views

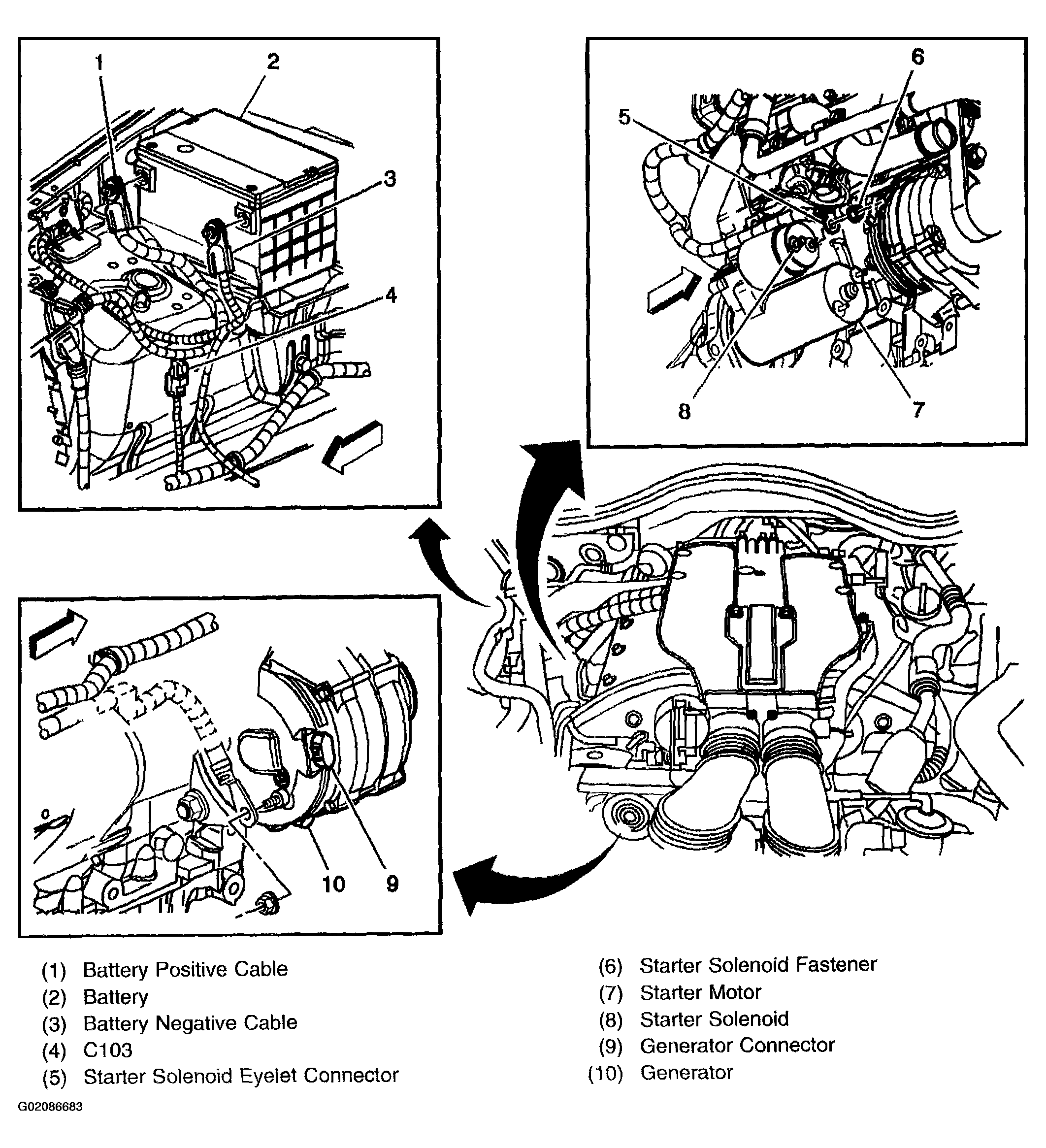

Fig 1: Starting & Charging Sub-System Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
