Brake Fluid Pressure Sensor Connector End View

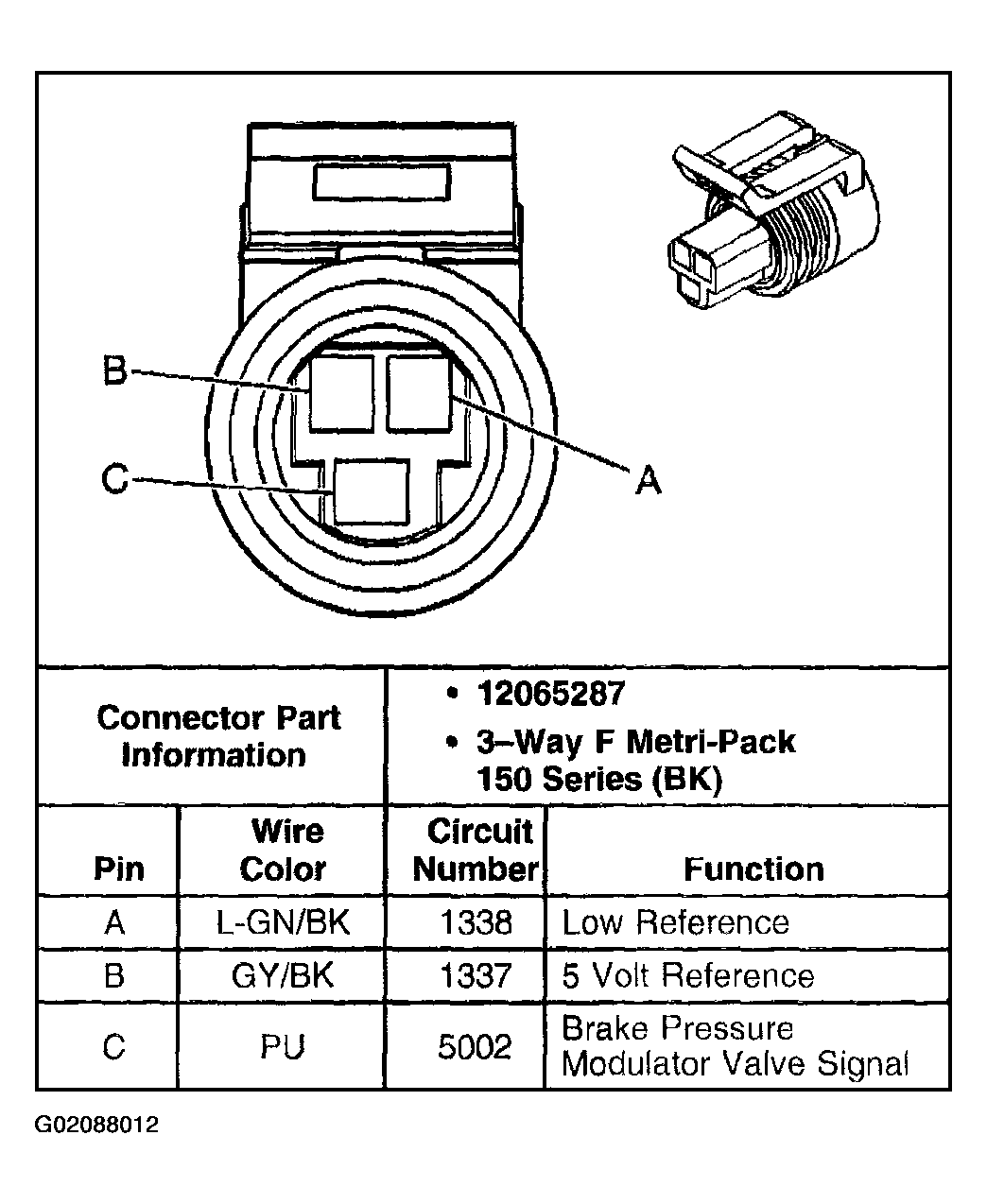

Fig 1: Brake Fluid Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
