Diagnostic Procedures

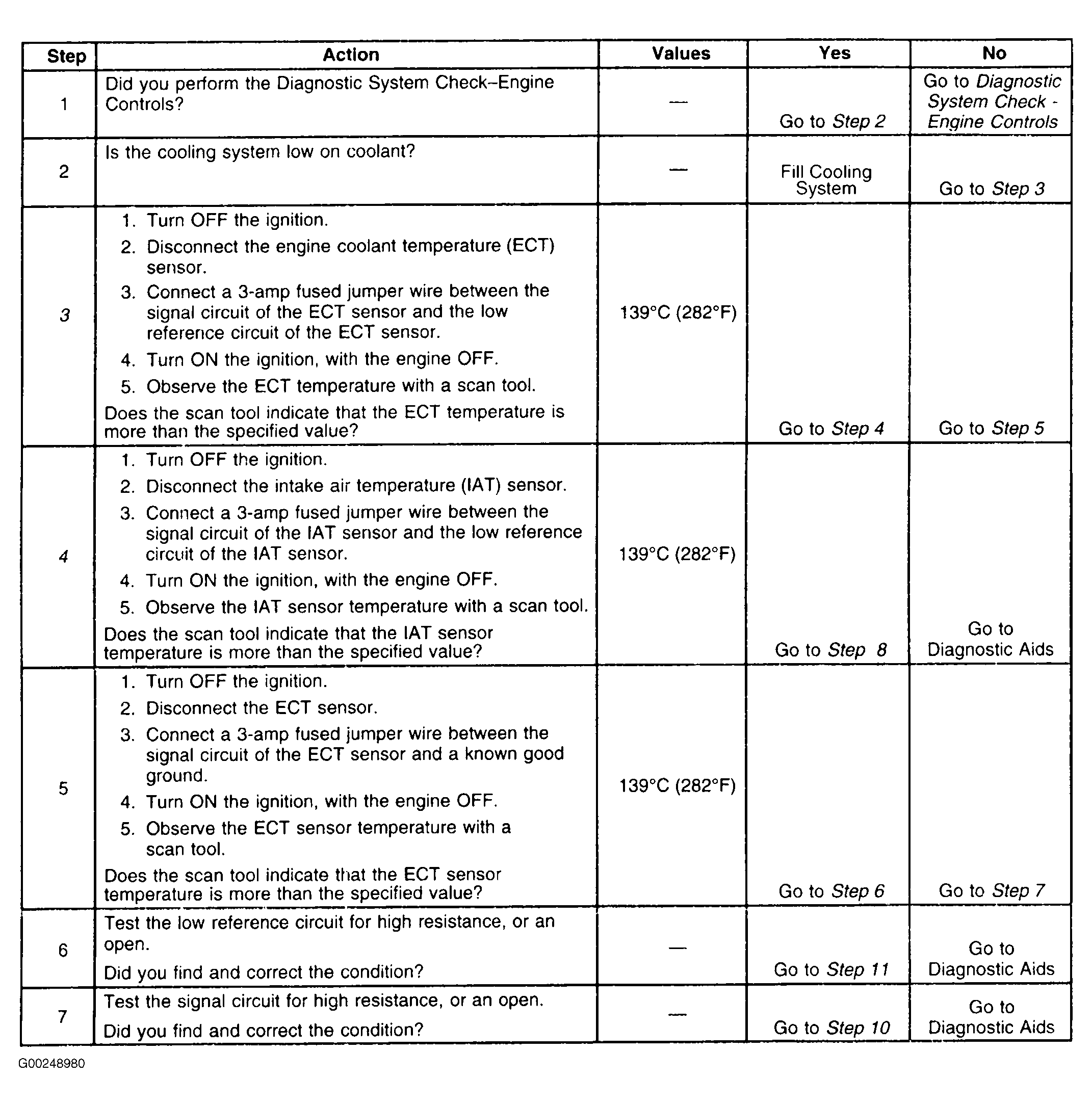

Fig 1: DTC P0116: Engine Coolant Temperature Sensor Circuit Performance (Step 1-7)
Courtesy of GENERAL MOTORS CORP.

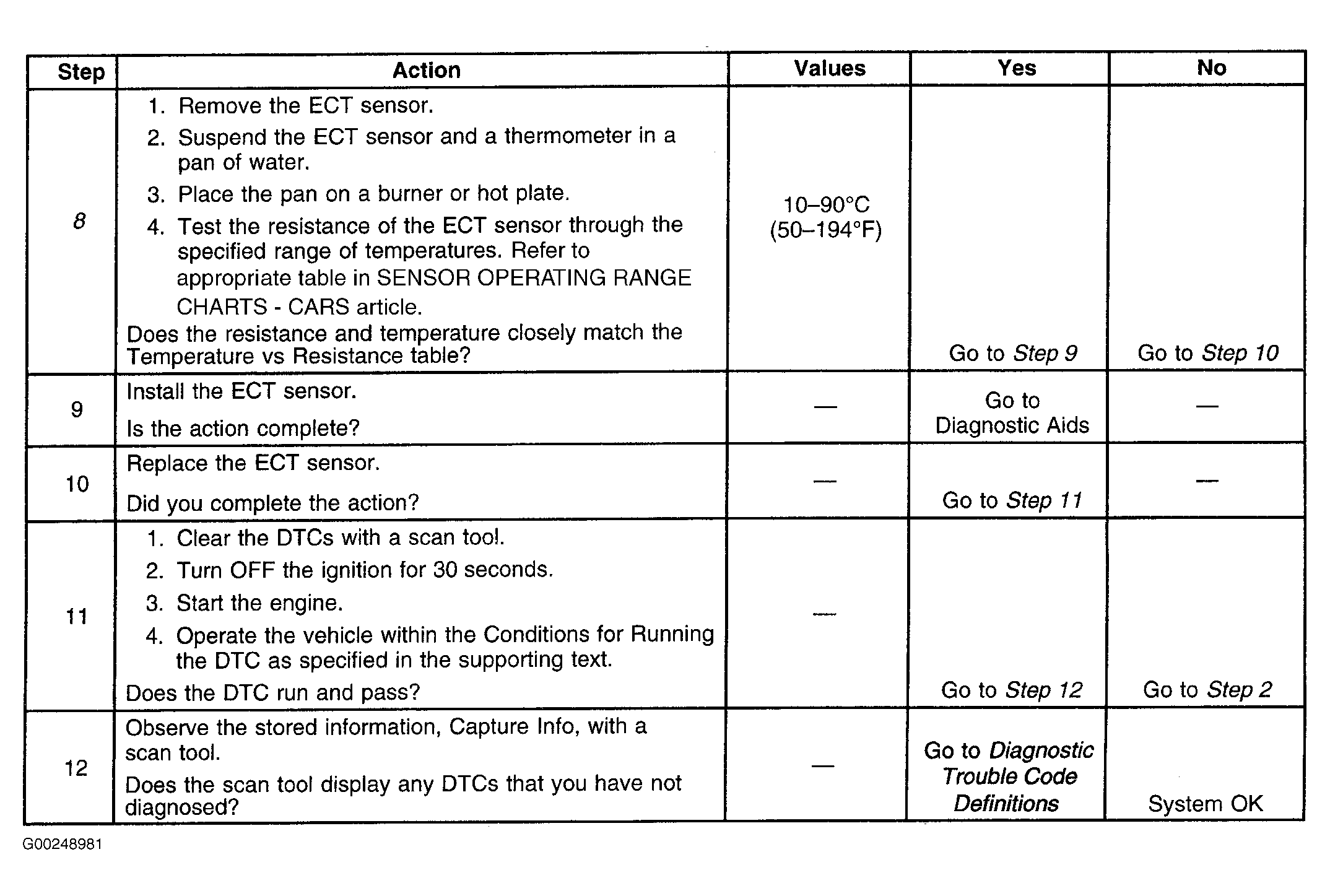

Fig 2: DTC P0116: Engine Coolant Temperature Sensor Circuit Performance (Steps 8-12)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
