Diagnostic Procedures

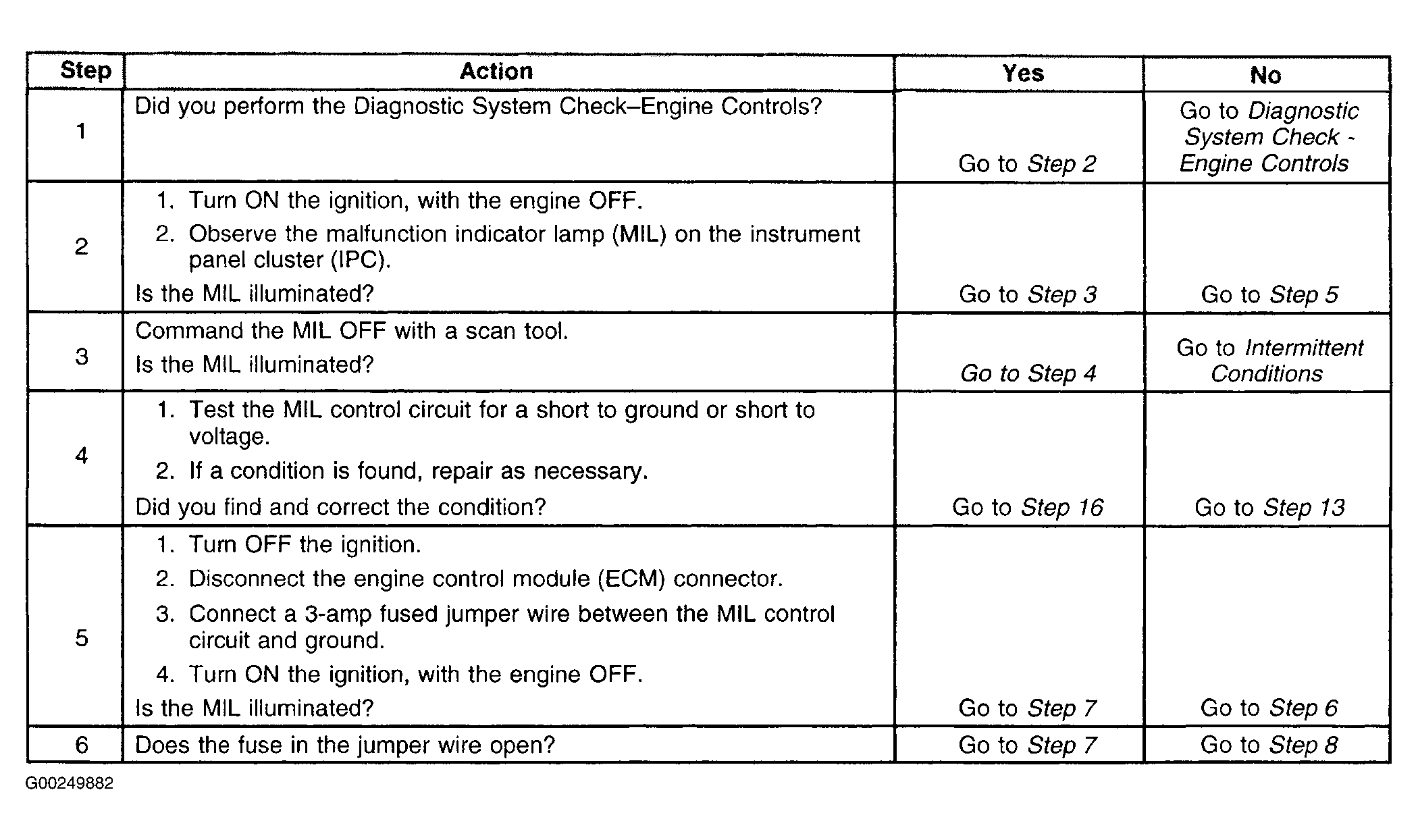

Fig 1: DTC P0650: Malfunction Indicator Light Control Circuit (Steps 1-6)
Courtesy of GENERAL MOTORS CORP.

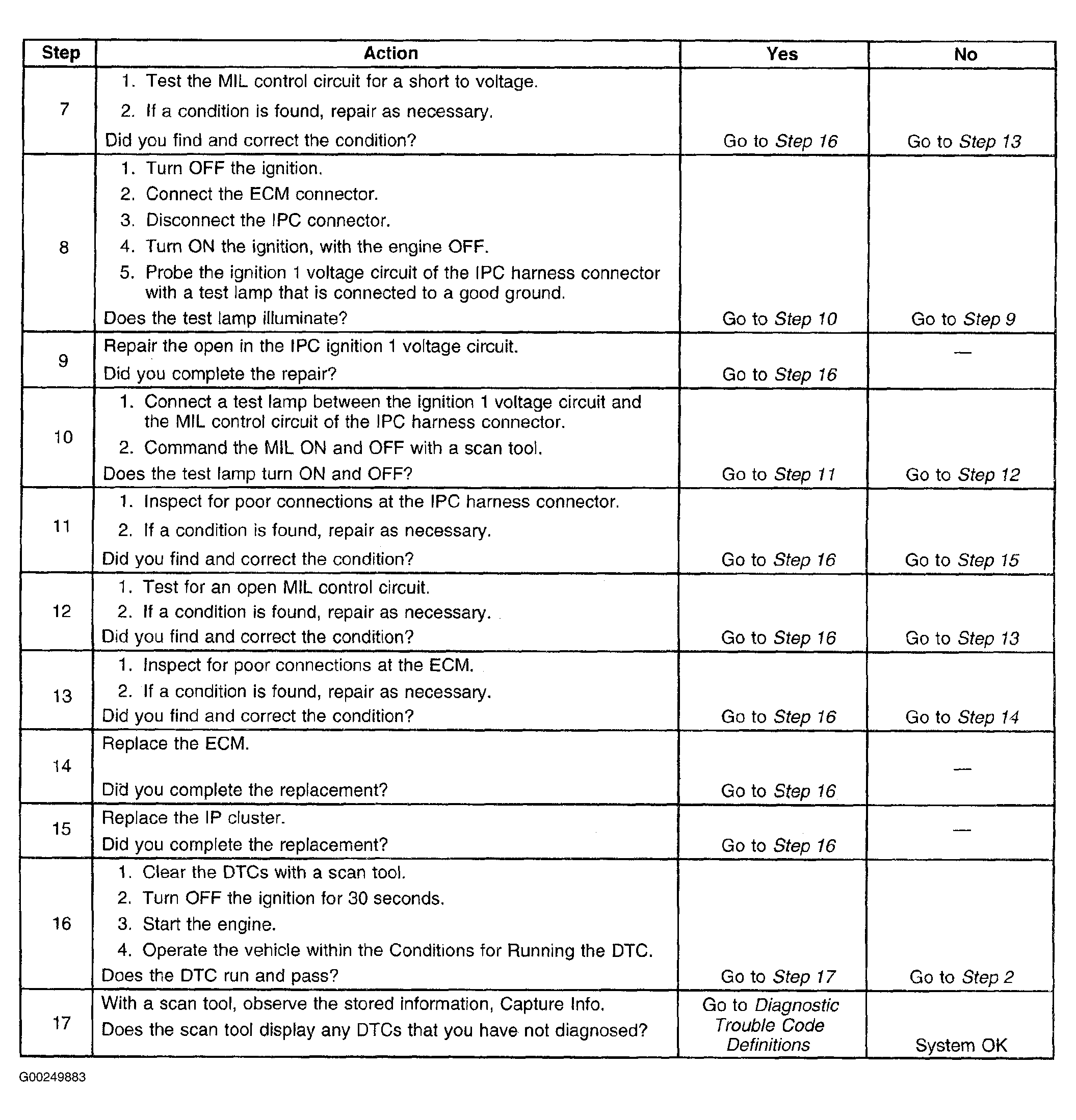

Fig 2: DTC P0650: Malfunction Indicator Light Control Circuit (Steps 7-17)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
