Rear Compartment Release Switch Connector End View

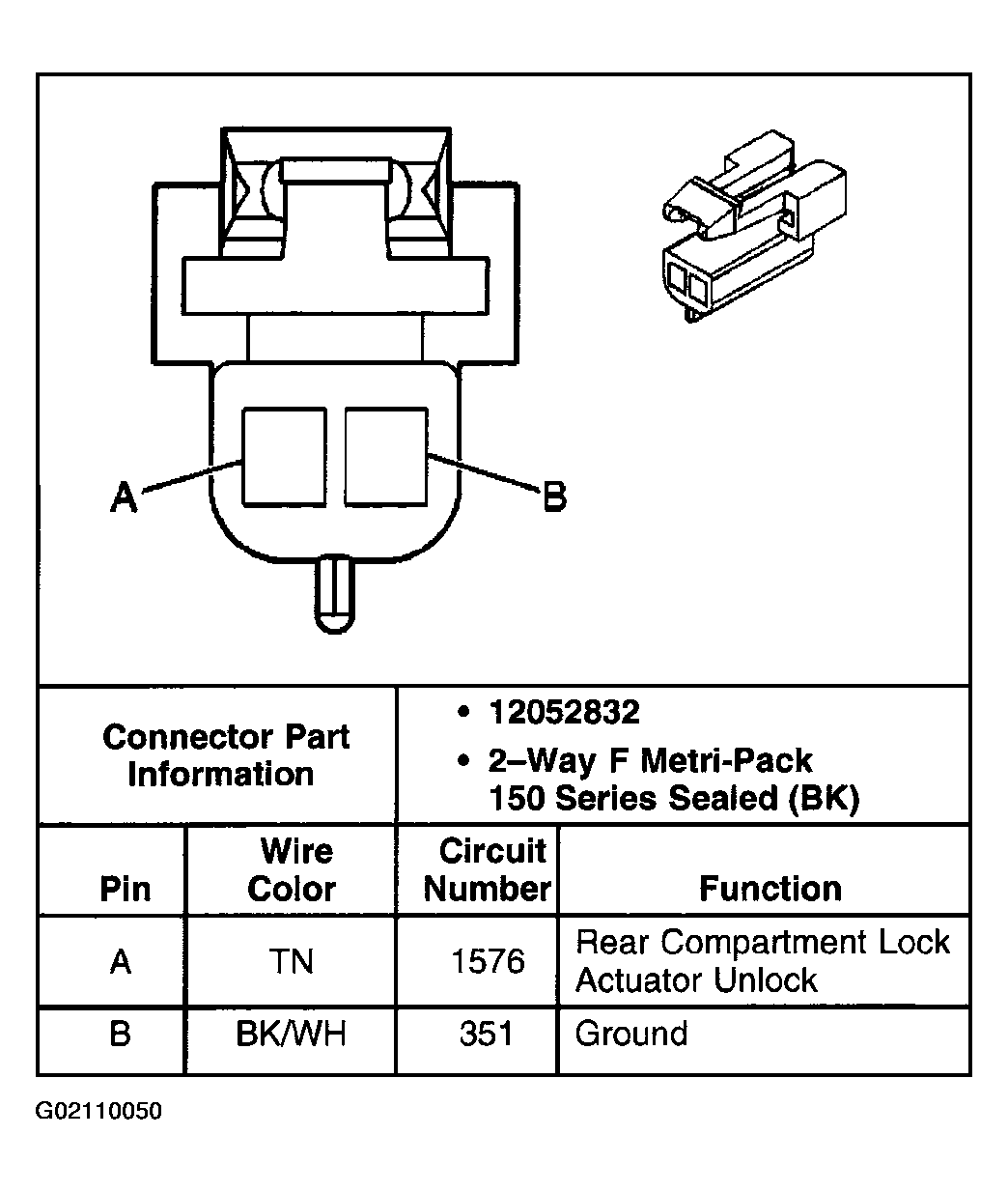

Fig 1: Rear Compartment Release Switch
G02110050Courtesy of GENERAL MOTORS CORP.
